HANDLE SWITCH

LS650P 2000 (Y) (E01)

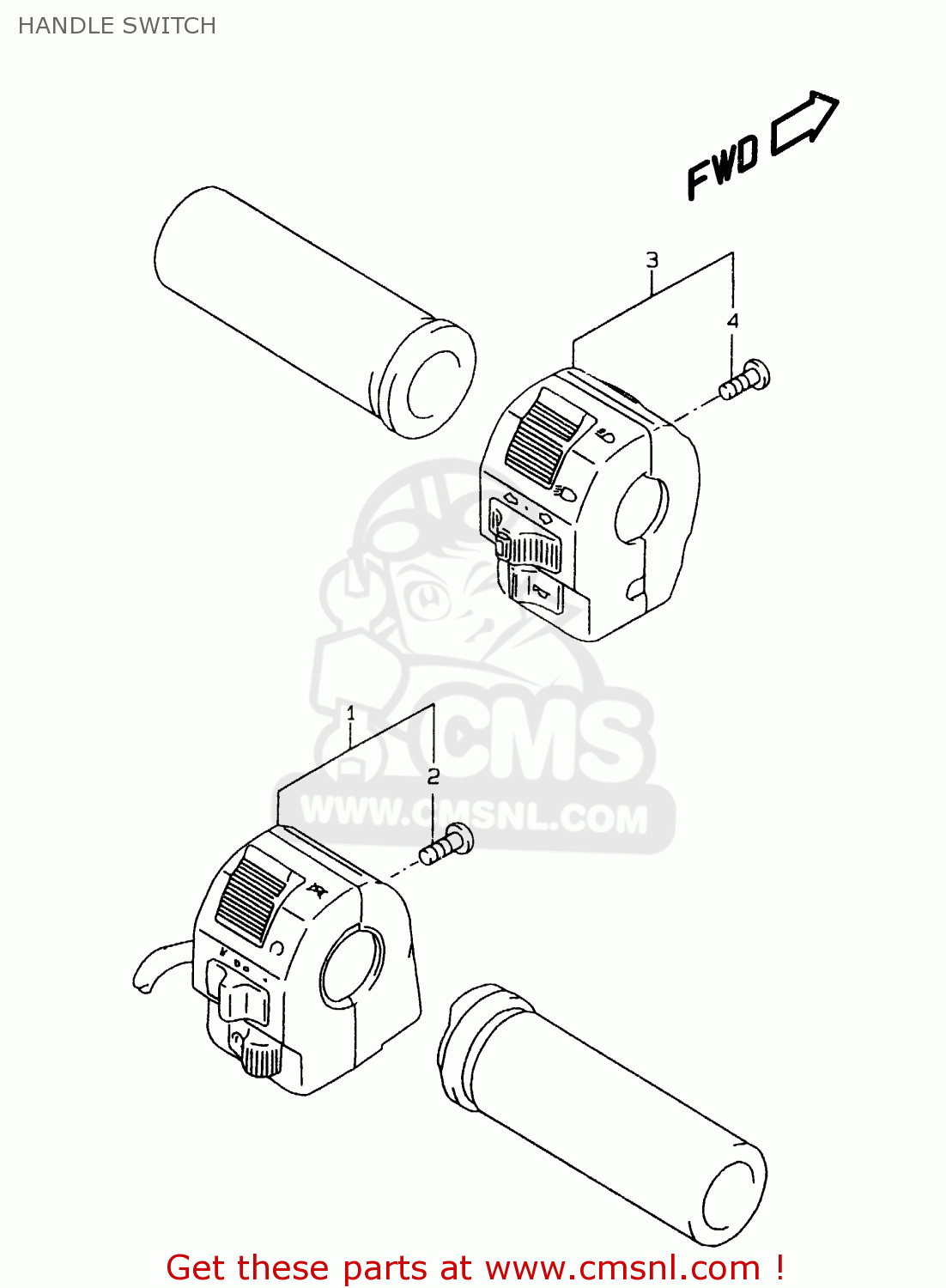

Handle switch diagram LS650P 2000 (Y) (E01)

HANDLE SWITCH LS650P 2000 (Y) (E01)

HANDLE SWITCH LS650P 2000 (Y) (E01)

prices are in EUR

ref

part #

description

quantity

1

3720024BA0
ref: 1

SWITCH ASSY,HANDLE,R

€ 205.50

2

0211205167
ref: 2

SCREW

€ 2.50

3

3740024BA0
ref: 3

SWITCH ASSY,HANDLE,L

€ 238.50

4

0211205167
ref: 4

SCREW

€ 2.50
