FRONT DAMPER
LS650P 2000 (Y) (E01)

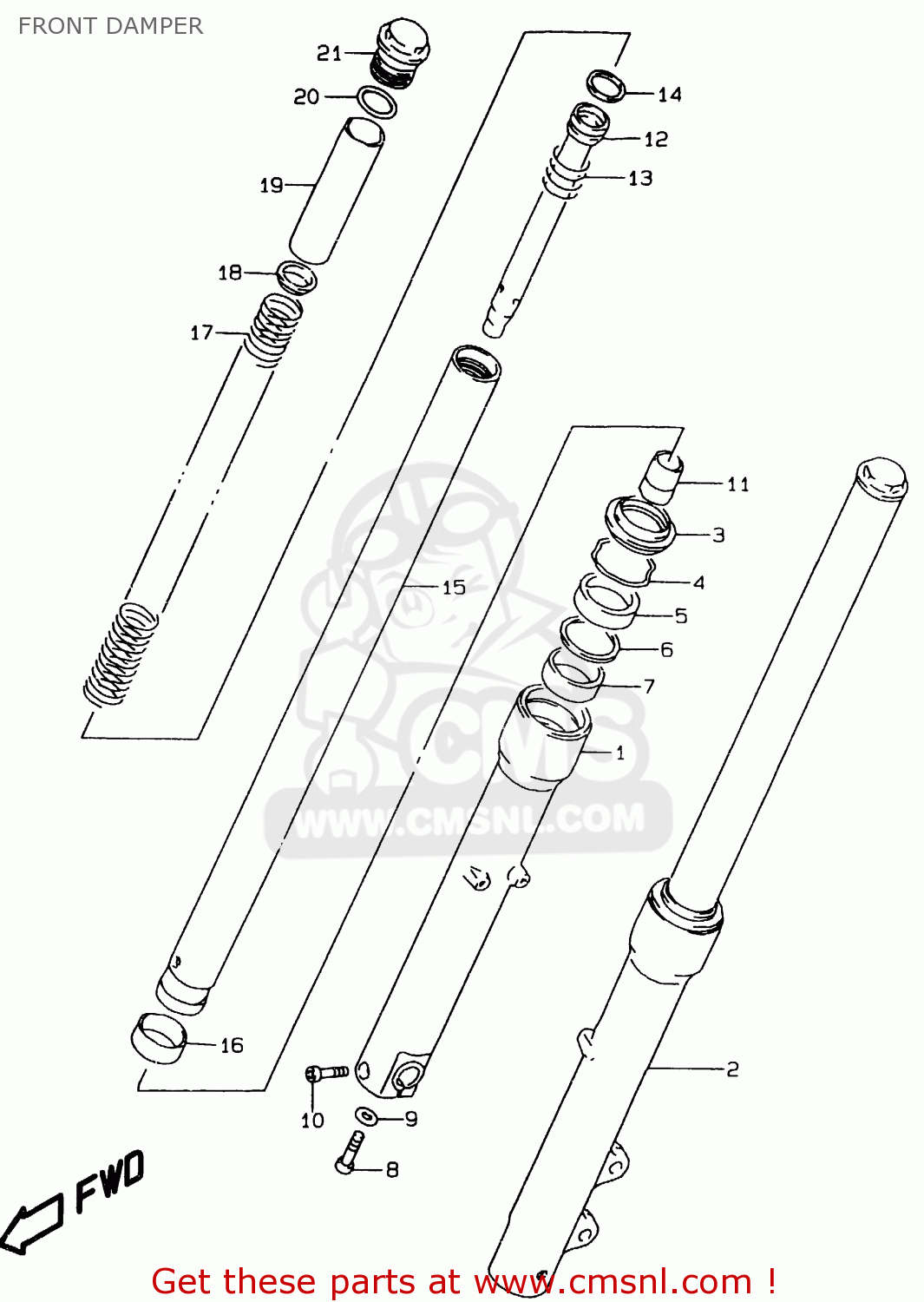

Front damper diagram LS650P 2000 (Y) (E01)
FRONT DAMPER LS650P 2000 (Y) (E01)
×
prices are in EUR
ref
part #
description
quantity
0
5110324B01
ref: 0
DAMPER ASSY,FR FORK,R
€ 454.50
0
5110424B01
ref: 0
DAMPER ASSY,FR FORK,L
€ 454.50
1
5113024B00
ref: 1
TUBE,OUTER,R
€ 275.00
2
5114024B00
ref: 2
TUBE,OUTER,L
€ 275.00
3
5117320A00
ref: 3
SEAL,DUST
€ 11.50
4
5115640301
ref: 4
RING,STOPPER
€ 4.50
5
5115320A00
ref: 5
SEAL,OIL
€ 13.50
6
5115814100
ref: 6
WASHER(40X50X2.3)
€ 2.50
7
5116713A00
ref: 7
METAL,SLIDE
€ 7.00
8
5114716510
ref: 8
BOLT,FORK CYLINDER(10X25)
€ 3.50
9
5114841310
ref: 9
GASKET (NAS)
€ 2.50
10
0713008407
ref: 10
BOLT
€ 3.50
11
5119524B01
ref: 11
PIECE,OIL LOCK
€ 9.50
12
5114624B01
ref: 12
CYLINDER
€ 53.00
13
5117749440
ref: 13
SPRING,REBOUND
€ 6.50
14
5119605A00
ref: 14
RING,PISTON
€ 7.50
15
5112024B01
ref: 15
TUBE,INNER
€ 301.50
16
5112114100
ref: 16
PISTON
€ 10.50
17
5117124B00
ref: 17
SPRING
€ 55.00
18
5117245C00
ref: 18
WASHER
€ 4.50
19
5117624B01
ref: 19
SPACER,SPRING
€ 6.50
20
5111740300
ref: 20
O RING
€ 2.50
21
5135124B00
ref: 21
CAP
€ 46.00
