STARTING MOTOR (SEE NOTE)
LS650P 2000 (Y) (E01)

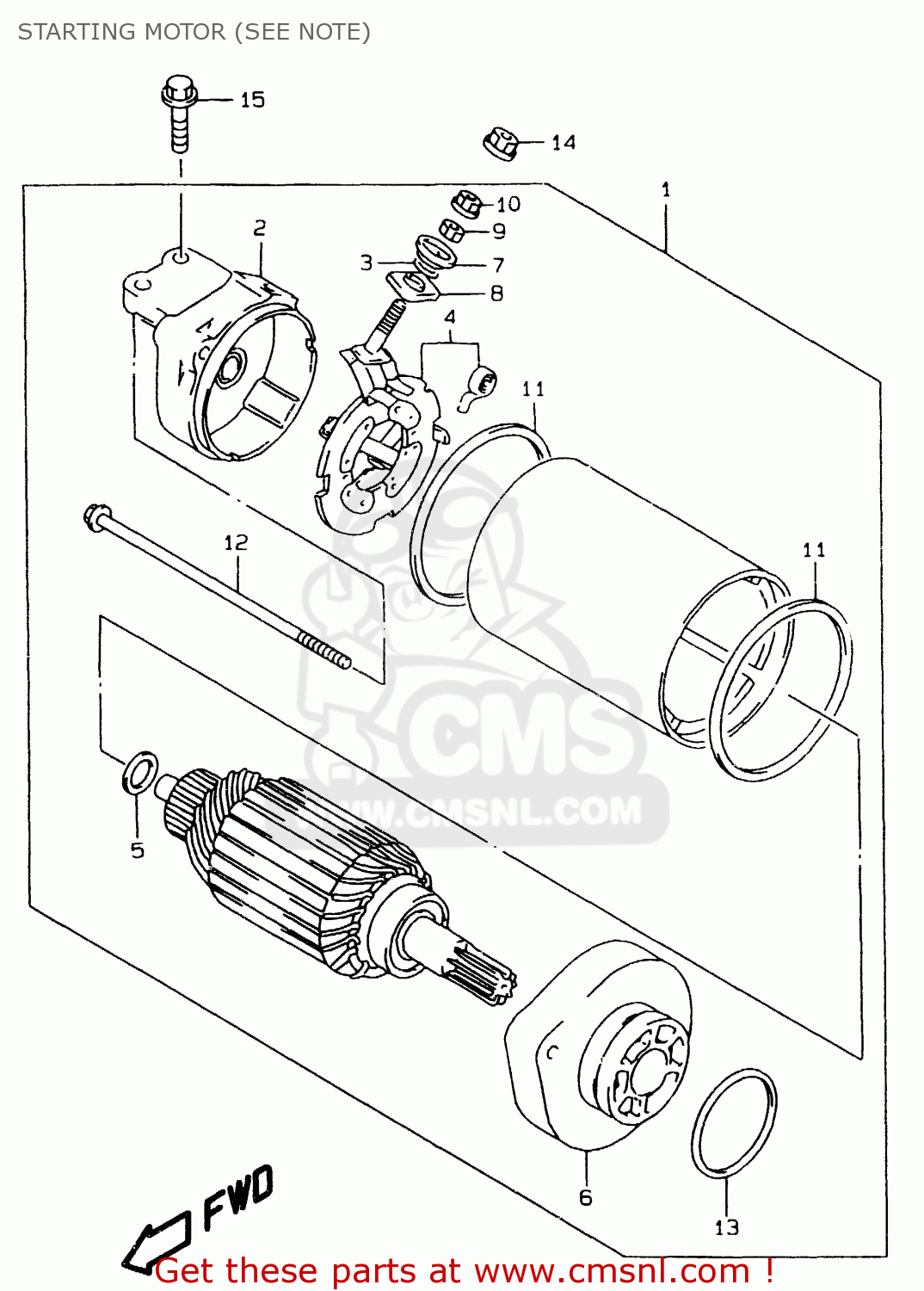

Starting motor (see note) diagram LS650P 2000 (Y) (E01)
STARTING MOTOR (SEE NOTE) LS650P 2000 (Y) (E01)
×
prices are in EUR
ref
part #
description
quantity
1
3110007F00
ref: 1
MOTOR ASSY,STARTING
€ 620.00
2
3117007F00
ref: 2
FRAME ASSY
€ 69.50
3
3114338300
ref: 3
O RING
€ 3.50
4
3113245C00
ref: 4
HOLDER SET,BRUSH
€ 46.00
5
3117043400
ref: 5
SHIM SET,STARTING MOTOR
€ 3.50
6
3115044B00
ref: 6
BRACKET SET
€ 98.50
7
3117238300
ref: 7
BUSHING
€ 4.00
8
3117388C00
ref: 8
BUSHING
€ 6.00
9
0831000067
ref: 9
NUT
€ 2.50
10
0836135068
ref: 10
NUT
€ 2.00
11
3126444110
ref: 11
O RING
€ 8.00
12
3128124B10
ref: 12
BOLT
€ 5.00
13
0928035005A
ref: 13
O-RING (D:2.1 ID:34.7)
€ 9.50
14
0836135068
ref: 14
NUT
€ 2.00
15
0154706207
ref: 15
BOLT
€ 2.50
