FUEL COCK

LS650P 2000 (Y) (E01)

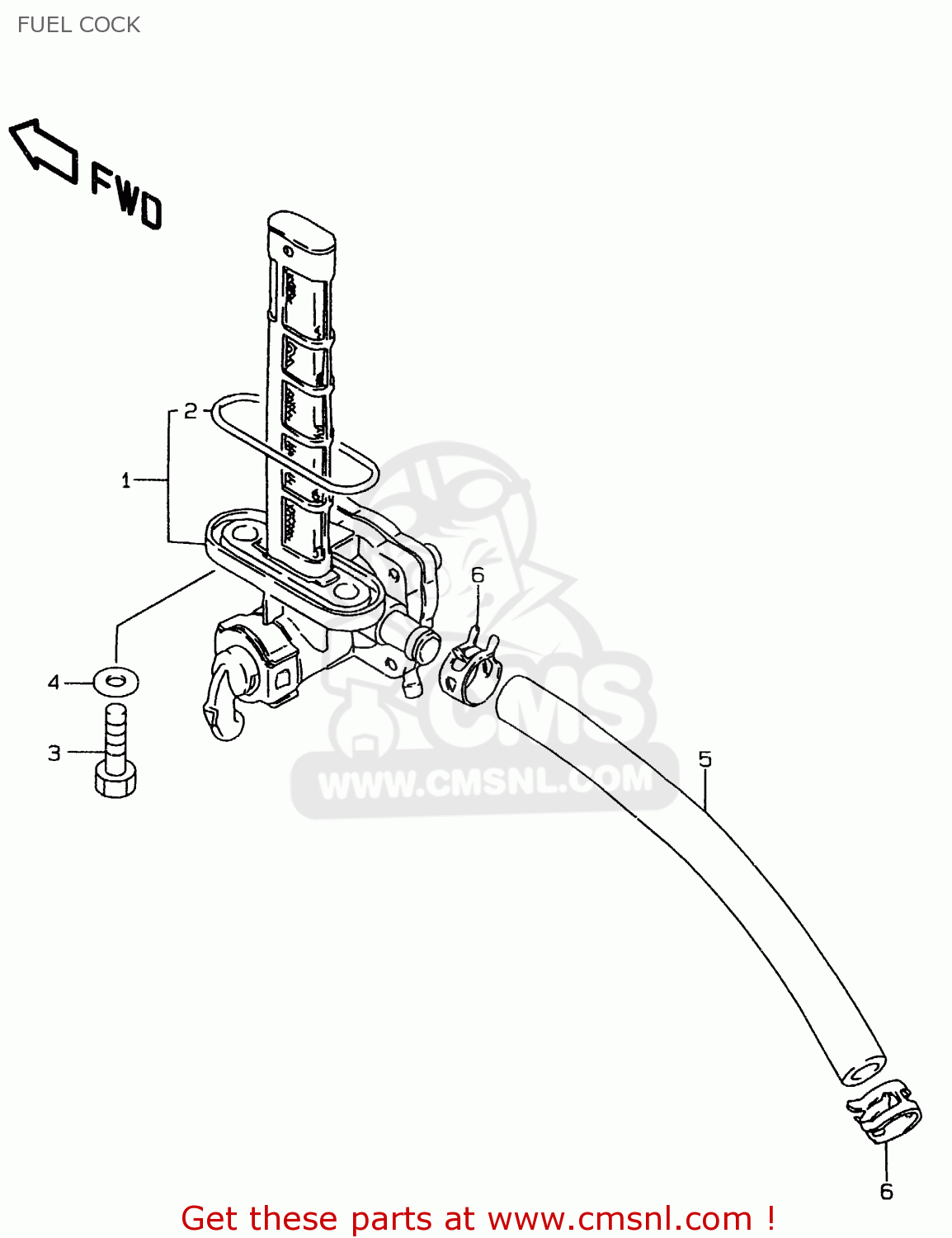

Fuel cock diagram LS650P 2000 (Y) (E01)

FUEL COCK LS650P 2000 (Y) (E01)

FUEL COCK LS650P 2000 (Y) (E01)

prices are in EUR

ref

part #

description

quantity

1

4430024B00
ref: 1

COCK ASSY,FUEL

€ 92.00

2

4434828070
ref: 2

O RING,FUEL COCK

€ 4.50

3

0912806057
ref: 3

BOLT(6X20)

€ 2.00

4

0916806026
ref: 4

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

5

0935470123600
ref: 5
MODEL T

HOSE (7X12X600)

€ 26.00

5

0935570125600
ref: 5
MODEL V/W/X

HOSE(7X12X600)

€ 26.00

6

0940111407
ref: 6

CLIP

€ 2.50
