AIR CLEANER

LS650P SAVAGE 2001 (L1) USA (E03)

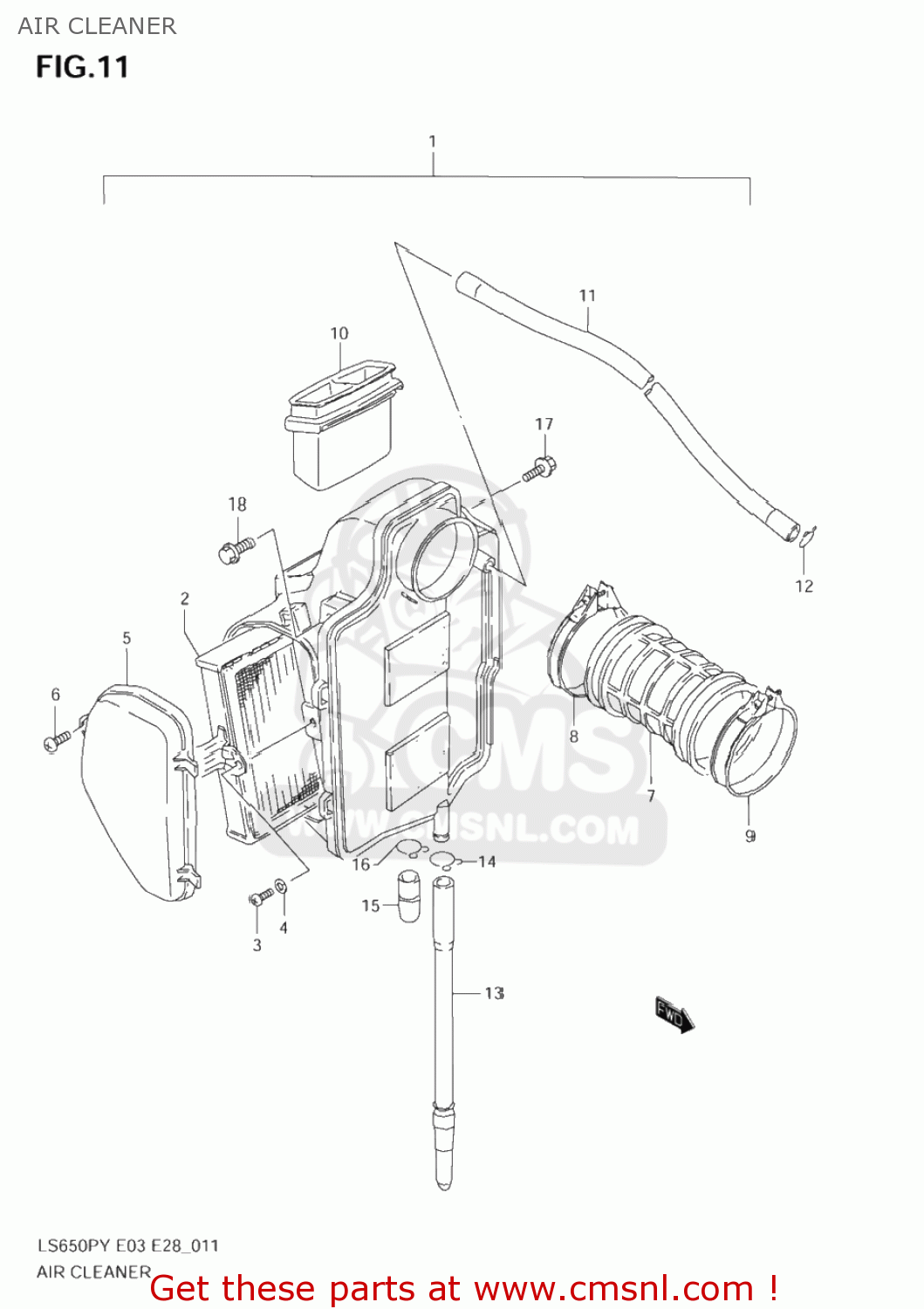

Air cleaner diagram LS650P SAVAGE 2001 (L1) USA (E03)

AIR CLEANER LS650P SAVAGE 2001 (L1) USA (E03)

AIR CLEANER LS650P SAVAGE 2001 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1370024B05
ref: 1

CLEANER ASSY,AIR

€ 81.00

2

1378024B01
ref: 2

FILTER ASSY,AIR

€ 31.50

3

0211205107
ref: 3

SCREW

€ 2.00

4

0832101057
ref: 4
08321-0105A

WASHER,LOCK

€ 2.00

5

1374024B01
ref: 5

CAP,AIR CLEANER

€ 13.50

6

0214205123
ref: 6
02142-0512A

SCREW 5X12

€ 1.50

7

1388124B01
ref: 7

TUBE,AIR CLEANER OUTLET

€ 17.50

8

0940270203
ref: 8
09402-70902

CLAMP

€ 6.00

9

0940264203
ref: 9

CLAMP

€ 6.00

10

1389124B00
ref: 10

TUBE,INLET

€ 13.00

11

0935211153600
ref: 11

HOSE(11X15X600)

€ 13.50

12

0940114301
ref: 12

CLIP

€ 2.00

13

1387011458
ref: 13

TUBE,DRAIN

€ 13.50

14

0940113409
ref: 14

CLIP

€ 2.50

15

1385941B10
ref: 15

PLUG

€ 5.50

16

0940114301
ref: 16

CLIP

€ 2.00

17

0911606006
ref: 17

BOLT(6X16)

€ 2.00

18

0155006123
ref: 18
01550-0612A

BOLT

€ 2.50
