ELECTRICAL (MODEL T/V/W/X/Y/K1/K2/K3)

LS650P SAVAGE 2001 (L1) USA (E03)

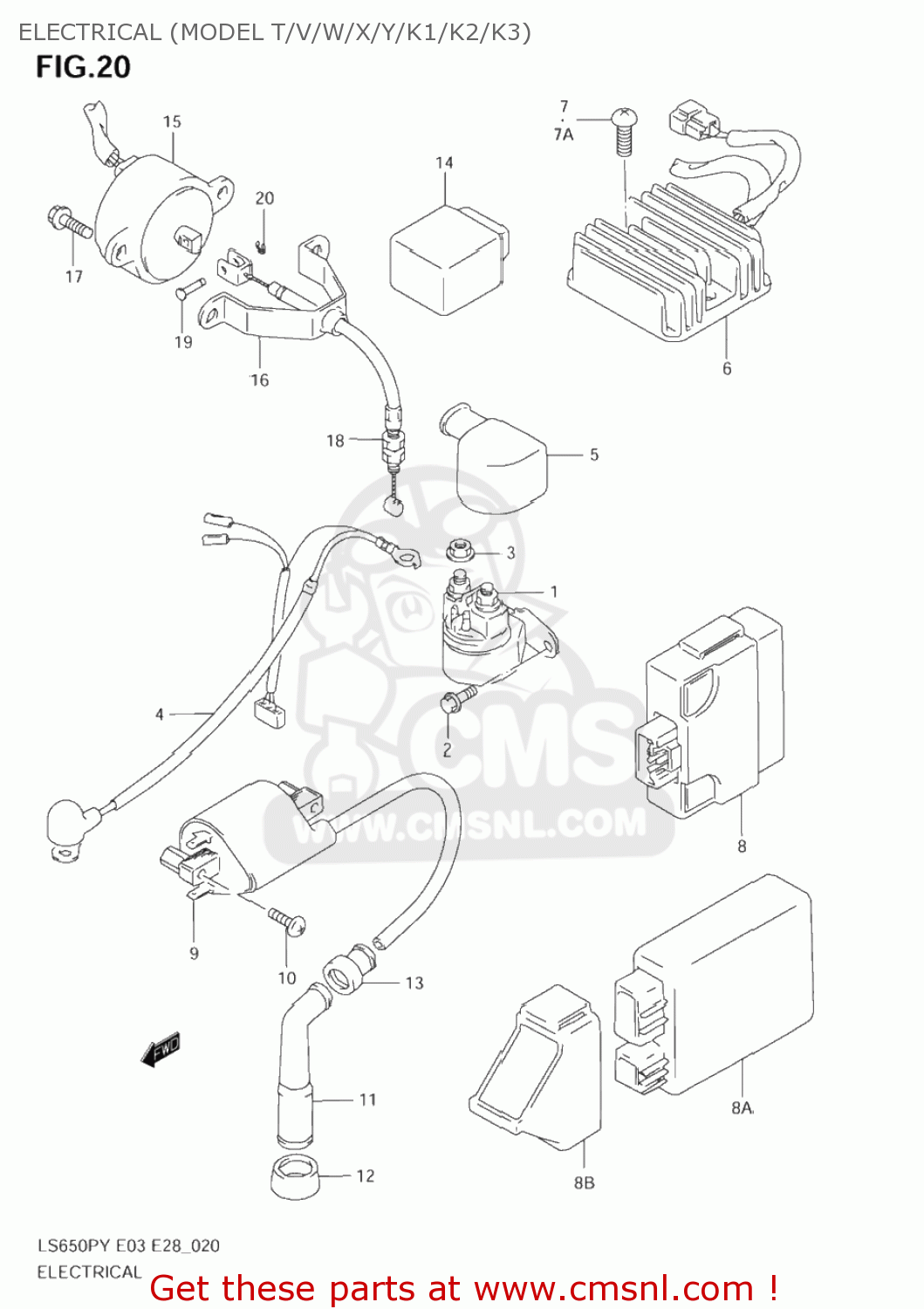

Electrical (model t/v/w/x/y/k1/k2/k3) diagram LS650P SAVAGE 2001 (L1) USA (E03)

ELECTRICAL (MODEL T/V/W/X/Y/K1/K2/K3) LS650P SAVAGE 2001 (L1) USA (E03)
ELECTRICAL (MODEL T/V/W/X/Y/K1/K2/K3) LS650P SAVAGE 2001 (L1) USA (E03)
ELECTRICAL (MODEL T/V/W/X/Y/K1/K2/K3) LS650P SAVAGE 2001 (L1) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3180049100
ref: 1
RELAY ASSY,STARTING MOTOR
3180049100
€ 89.00
2
0155006103
ref: 2
01550-0610A
BOLT
0155006103
€ 2.50
3
0836135068
ref: 3
08361-3506A
NUT
0836135068
€ 2.00
4
3385024B10
ref: 4
WIRE,STARTER MOTOR
3385024B10
€ 27.00
5-1
3362449420
ref: 5-1
33624-49401
CAP,STARTER RELAY TERMINAL
€ 5.00
5-2
3362449401
ref: 5-2
CAP,STARTER RELAY TERMINAL
3362449401
€ 5.00
6
3280024B01
ref: 6
32800-24B11
RECTIFIER ASSEMBLY
€ 243.50
7
0214206163
ref: 7
02142-0616A
SCREW
0214206163
€ 2.50
7A
0216206163
ref: 7A
02162-0616B
SCREW
0216206163
€ 2.50
8
3290024B10
ref: 8
32900-24B30
IGNITER ASSEMBLY
€ 423.50
8A
3290024B11
ref: 8A
32900-24B30
IGNITER ASSEMBLY
€ 423.50
8B
3298024B00
ref: 8B
CUSHION,IGNITOR
€ 8.50
9
3341024B00
ref: 9
COIL ASSY,IGNITION
3341024B00
€ 121.50
10
0214205123
ref: 10
02142-0512A
SCREW 5X12
0214205123
€ 1.50
11
3351045010
ref: 11
CAP ASSY,SPARK PLUG
3351045010
€ 23.00
12
3354124510
ref: 12
33541-47D00
SEAL,SPARK PLUG CAP
3354124510
€ 7.00
13
3354238B00
ref: 13
SEAL,HIGH TENSION CORD
3354238B00
€ 4.50
14
3291024B10
ref: 14
CONTROL UNIT,DECOMP
3291024B10
€ 69.50
15
3397024B00
ref: 15
SOLENOID ASSY,DECOMP
3397024B00
€ 174.00
16
3397124B00
ref: 16
BRACKET,DECOMP SOLENOID
€ 10.00
17
0155006163
ref: 17
01550-0616A
BOLT
0155006163
€ 2.50
18
5890024B00
ref: 18
58900-24B01
CABLE ASSEMBLY,DECOMPRESSION
5890024B00
€ 21.00
19
0920904020
ref: 19
PIN(4X12.5)
0920904020
€ 5.50
20
0833211033
ref: 20
E RING
0833211033
€ 1.50
