CRANK BALANCER

LS650P SAVAGE 2001 (L1) USA (E03)

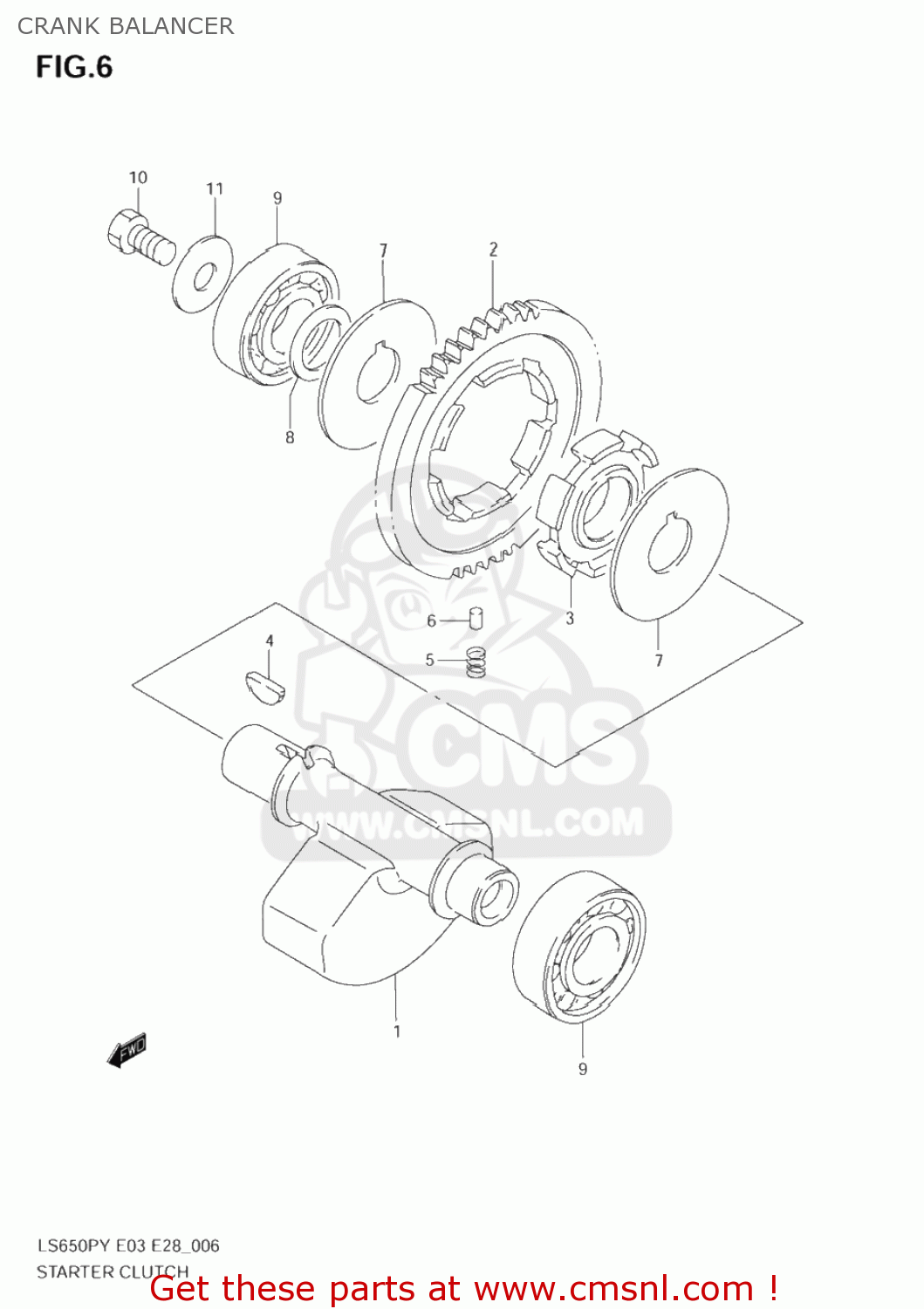

Crank balancer diagram LS650P SAVAGE 2001 (L1) USA (E03)

CRANK BALANCER LS650P SAVAGE 2001 (L1) USA (E03)

CRANK BALANCER LS650P SAVAGE 2001 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1265124B01
ref: 1

SHAFT,CRANK BALANCER

€ 103.50

2

1266624B01
ref: 2

GEAR,CRANK BALANCER DRIVEN

€ 99.50

3-1

1266924B00
ref: 3-1
12669-24B01

RACE,CRANK BALANCER DRIVEN GEAR

€ 34.00

3-2

1266924B01
ref: 3-2

RACE,CRK BAL DRIVEN GEAR INNER

€ 34.00

4

0942004008
ref: 4

KEY

€ 3.50

5

0944009031
ref: 5

SPRING

€ 3.00

6

0920204017
ref: 6

PIN(4.5X9.5)

€ 3.00

7

0916620010
ref: 7

WASHER

€ 4.00

8-1

0822120285
ref: 8-1
09181-20158

THRUST WASHER

€ 2.50

8-2

0918120158
ref: 8-2

SHIM(20X28X0.5)

€ 2.50

9

0926220089
ref: 9

BEARING(20X47X14)

€ 17.50

10

0150010163
ref: 10
01500-1016B

BOLT

€ 2.50

11

0821110285
ref: 11

WASHER

€ 2.50
