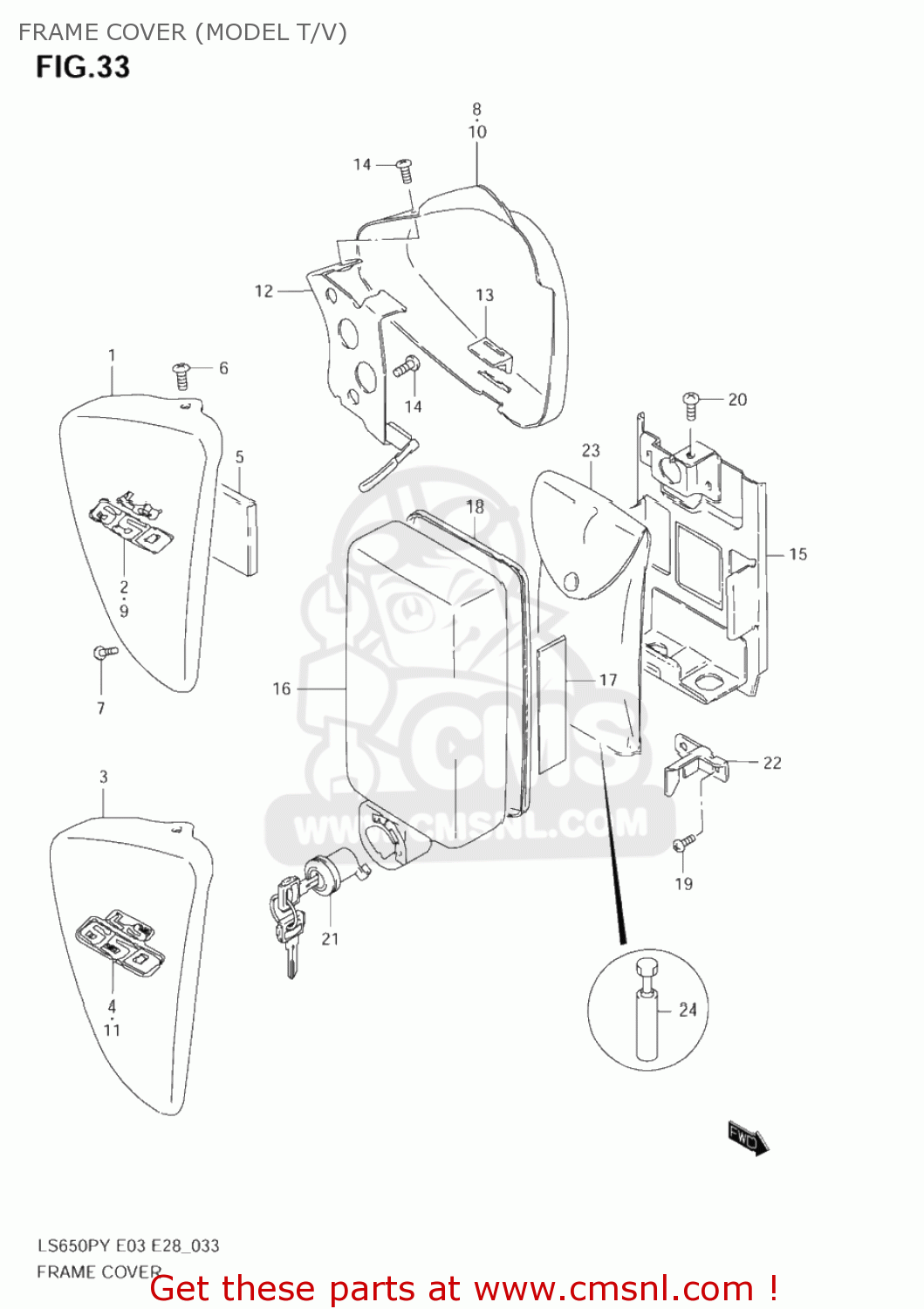

FRAME COVER (MODEL T/V)

ref

part #

description

quantity

1-1

4710024C00163
ref: 1-1

COVER ASSEMBLY,FRAME,RIGHT

€ 82.00

1-2

4710024C0022U
ref: 1-2

COVER ASSEMBLY,FRAME,RIGHT

€ 82.00

2-1

6813124C00E9E
ref: 2-1

EMBLEM,FRAME COVER

€ 16.00

2-2

6813124C00E9D
ref: 2-2

EMBLEM,FRAME COVER

€ 12.50

3-1

4710024C1033J
ref: 3-1

COVER ASSEMBLY,FRAME,RIGHT (BLACK)

€ 0.00

3-2

4710024C10Y0W
ref: 3-2

COVER ASSY,FRAME,R(ORANGE)

€ 85.00

4-1

6813124C10G5T
ref: 4-1

EMBLEM,FRAME COVER

€ 14.00

4-2

6813124C10G5V
ref: 4-2

EMBLEM,FRAME COVER

€ 11.50

5

1371984150
ref: 5

PAD

€ 2.50

6

0214205103
ref: 6
02142-0510B

SCREW

€ 2.50

7

0211275163
ref: 7
02112-7516A

SCREW

€ 2.50

8-1

4720024C00163
ref: 8-1

COVER ASSEMBLY,FRAME,LEFT

€ 88.50

8-2

4720024C0022U
ref: 8-2

COVER ASSEMBLY,FRAME,LEFT

€ 97.00

9-1

6813124C00E9E
ref: 9-1

EMBLEM,FRAME COVER

€ 16.00

9-2

6813124C00E9D
ref: 9-2

EMBLEM,FRAME COVER

€ 12.50

10-1

4720024C1033J
ref: 10-1

COVER ASSEMBLY,FRAME,LEFT (BLACK)

€ 99.00

10-2

4720024C10Y0W
ref: 10-2

COVER ASSEMBLY,FRAME,LEFT (ORANGE)

€ 90.00

11-1

6813124C10G5T
ref: 11-1

EMBLEM,FRAME COVER

€ 14.00

11-2

6813124C10G5V
ref: 11-2

EMBLEM,FRAME COVER

€ 11.50

12

4718024B03
ref: 12

BRACKET,FRAME COVER,L

€ 13.00

13

4711745000
ref: 13

CUSHION,FRAME COVER

€ 1.50

14

0212206123
ref: 14
02122-0612A

SCREW

€ 3.00

15

4743024B01
ref: 15

HOLDER,TOOL

€ 11.00

16

4744024B10
ref: 16
47440-24B20

COVER COMP,TOOL HOLDER

€ 36.00

17

3365207D00
ref: 17

PROTECTOR(80X80X2)

€ 4.50

18

4744524B00
ref: 18

MOLDING

€ 2.50

19

0214205103
ref: 19
02142-0510B

SCREW

€ 2.50

20

0211206103
ref: 20
02112-0610B

SCREW

€ 1.50

21

9570024870
ref: 21
95700-24871

LOCK SET,TOOL HOLDER

€ 45.00

22

4743424B00
ref: 22

PLATE,TOOL HOLDER LOCK

€ 2.50

23

0980021012
ref: 23

TOOL ASSY

€ 40.00

24

9622024B00
ref: 24

GAUGE ASSY,TENSION

€ 21.50
