CANISTER (E33)
LS650P SAVAGE 2001 (L1) USA (E03)

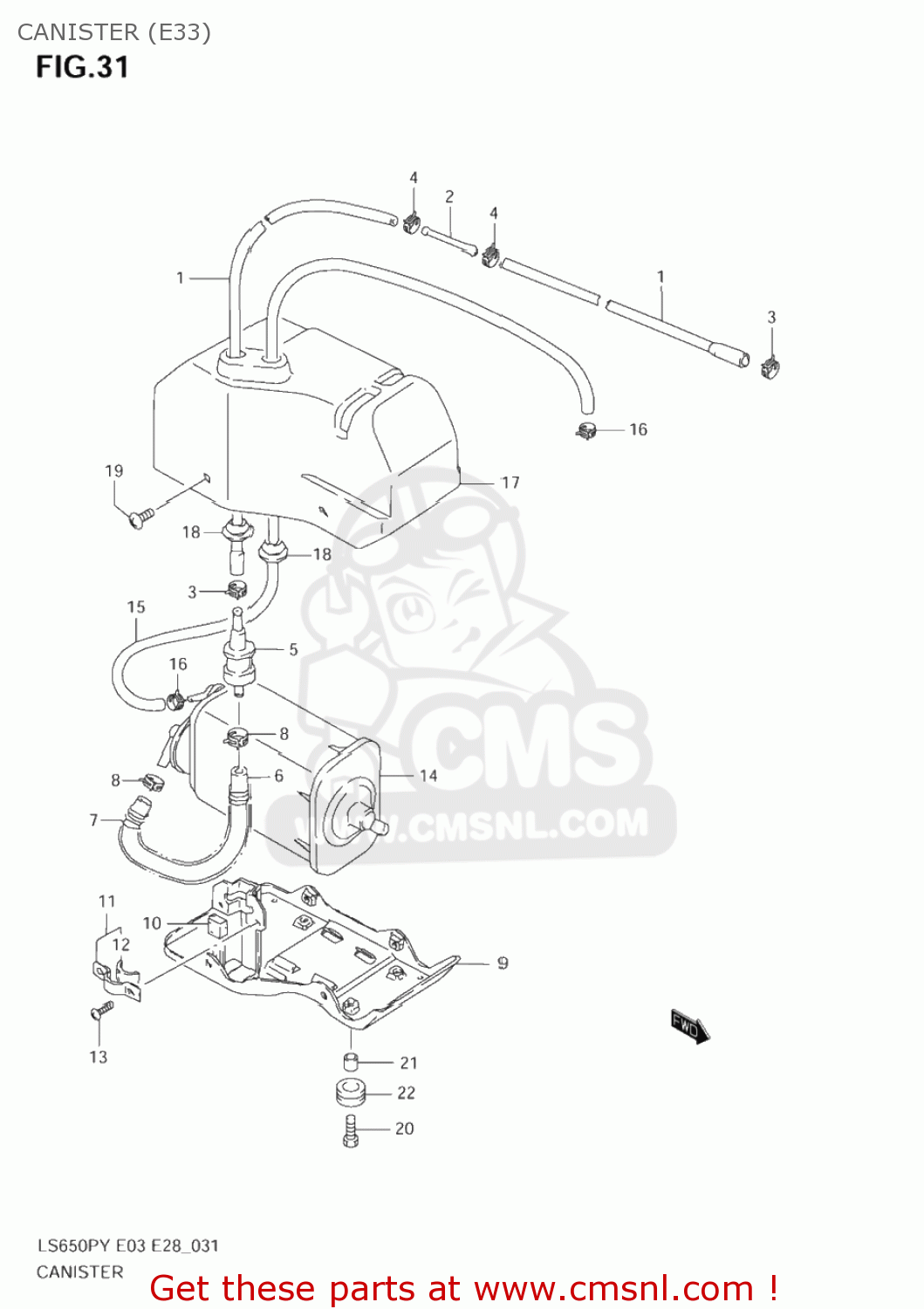

Canister (e33) diagram LS650P SAVAGE 2001 (L1) USA (E03)
CANISTER (E33) LS650P SAVAGE 2001 (L1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4491143500
ref: 1
HOSE,PURGE NO.1
€ 3.00
2
0936404002
ref: 2
JOINT
€ 6.00
3
0940108411
ref: 3
CLIP
€ 3.00
4
0940106405
ref: 4
CLIP
€ 2.00
5
4424038A00
ref: 5
VALVE,FUEL TANK BREATHER
€ 35.00
6
0934305403
ref: 6
HOSE
€ 7.50
7
0944013041
ref: 7
SPRING
€ 3.50
8
0940111413
ref: 8
CLIP
€ 2.50
9
4488024B00
ref: 9
PLATE,CSTR FITING
€ 23.50
10
4489424A00
ref: 10
CUSHION
€ 1.50
11
4489224A00
ref: 11
PLATE,FUEL TANK BREATHER NO.2
€ 3.00
12
4489424A00
ref: 12
CUSHION
€ 1.50
13
0214204103
ref: 13
02142-0410A
SCREW
€ 1.50
14
1721024B00
ref: 14
CANISTER ASSY,CHARCOAL
€ 0.00
15
4491143500
ref: 15
HOSE,PURGE NO.1
€ 3.00
16
0940106405
ref: 16
CLIP
€ 2.00
17
4499124B00
ref: 17
COVER,CANISTER
€ 162.00
18
0930807004
ref: 18
GROMMET
€ 2.50
19
0214206103
ref: 19
02142-0610A
SCREW 6X10
€ 2.00
20
0911606168
ref: 20
BOLT(6X16)
€ 2.50
21-1
0918006111
ref: 21-1
09180-06260
SPACER
€ 3.50
21-2
0918006260
ref: 21-2
SPACER(6.5X9X7.2)
€ 3.50
22
0932008021
ref: 22
CUSHION
€ 4.00
