HEADLAMP (MODEL K1/K2/K3/K4)

LS650P SAVAGE 2001 (L1) USA (E03)

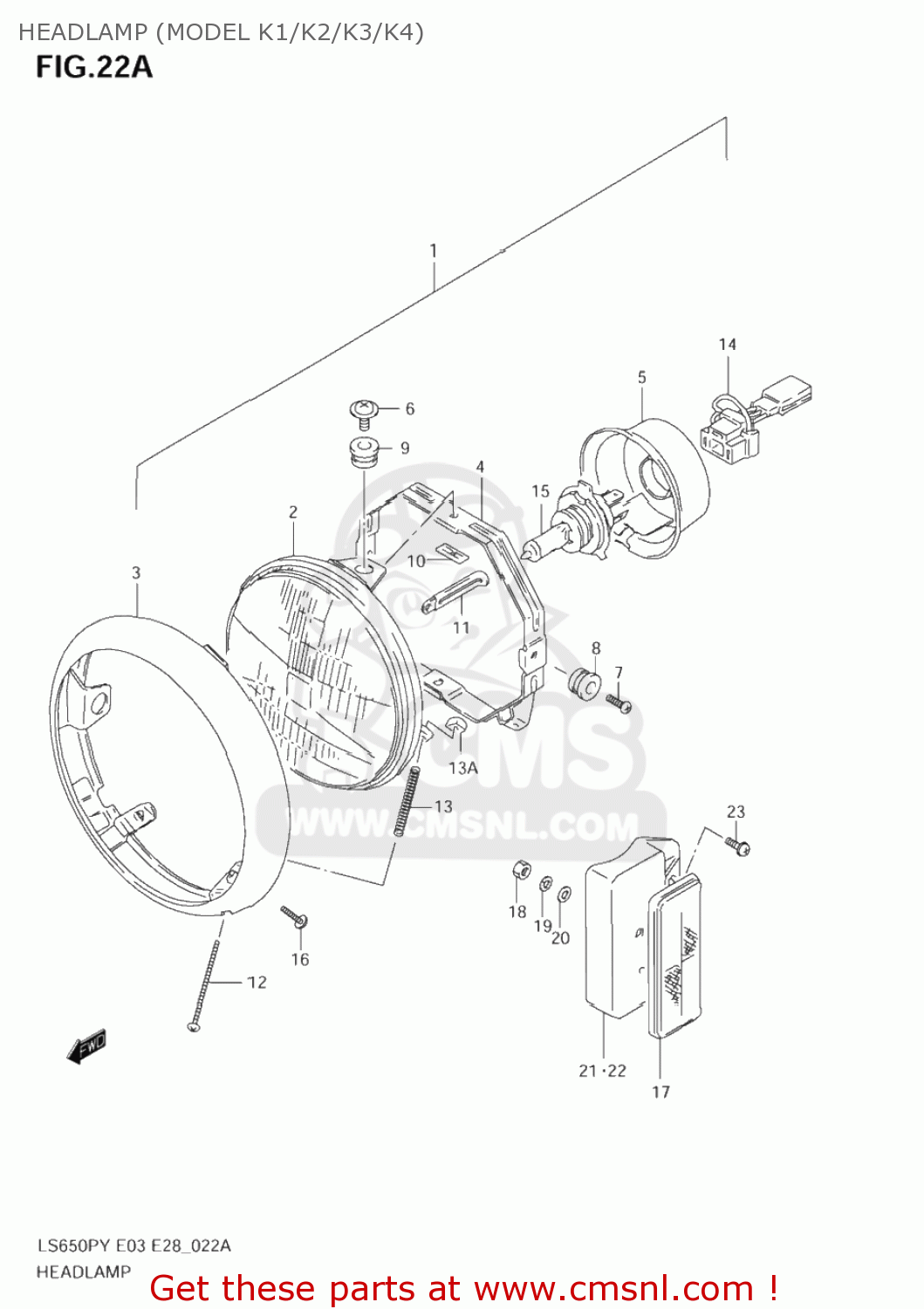

Headlamp (model k1/k2/k3/k4) diagram LS650P SAVAGE 2001 (L1) USA (E03)

HEADLAMP (MODEL K1/K2/K3/K4) LS650P SAVAGE 2001 (L1) USA (E03)
HEADLAMP (MODEL K1/K2/K3/K4) LS650P SAVAGE 2001 (L1) USA (E03)
HEADLAMP (MODEL K1/K2/K3/K4) LS650P SAVAGE 2001 (L1) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
3510038A60999
ref: 1-1
35100-38A61-999
HEADLAMP ASSEMBLY
€ 236.00
1-2
3510038A61999
ref: 1-2
HEADLAMP ASSY
€ 236.00
2
3512138A60
ref: 2
UNIT,LAMP
€ 114.00
3
3511138A60
ref: 3
RIM
€ 24.00
4
3513038A00
ref: 4
RING,MOUNTING
3513038A00
€ 15.00
5
3517313E10
ref: 5
COVER
€ 12.50
6
3513638A60
ref: 6
SCREW
€ 3.50
7
3513638A00
ref: 7
SCREW,MOUNTING
3513638A00
€ 2.50
8
3513945230
ref: 8
CUSHION
3513945230
€ 1.50
9
3513938A60
ref: 9
CUSHION
€ 2.50
10
3515538A60
ref: 10
NUT
€ 3.50
11
0940406432
ref: 11
CLAMP(L:65)
0940406432
€ 2.50
12
3515138A00
ref: 12
SCREW,ADJUSTING(4X50)
3515138A00
€ 2.50
13
3515431300
ref: 13
SPRING
3515431300
€ 2.00
13A
3515245600
ref: 13A
NUT,HEADLAMP ADJUST
3515245600
€ 3.00
14
3685338A00
ref: 14
SOCKET
3685338A00
€ 10.00
15
0947112060
ref: 15
BULB(12V60/55W,H4)
0947112060
€ 8.00
16
0214205127
ref: 16
SCREW
0214205127
€ 1.50
17
3595043431
ref: 17
REFLEX REFLECTOR,FR SIDE
3595043431
€ 12.00
18
0831000053
ref: 18
08310-0005A
NUT
€ 2.50
19
0832101053
ref: 19
08321-0105A
LOCK,WASHER
€ 3.00
20
0916005037
ref: 20
WASHER(5.5X16X1.2)
0916005037
€ 1.50
21
3595624B00
ref: 21
BRACKET,FR SIDE RR,R
€ 0.00
22
3595724B00
ref: 22
BRACKET,FR SIDE RR,L
€ 0.00
23
0913605026
ref: 23
SCREW(5X12)
€ 2.00
