MUFFLER
LS650P SAVAGE 2001 (L1) USA (E03)

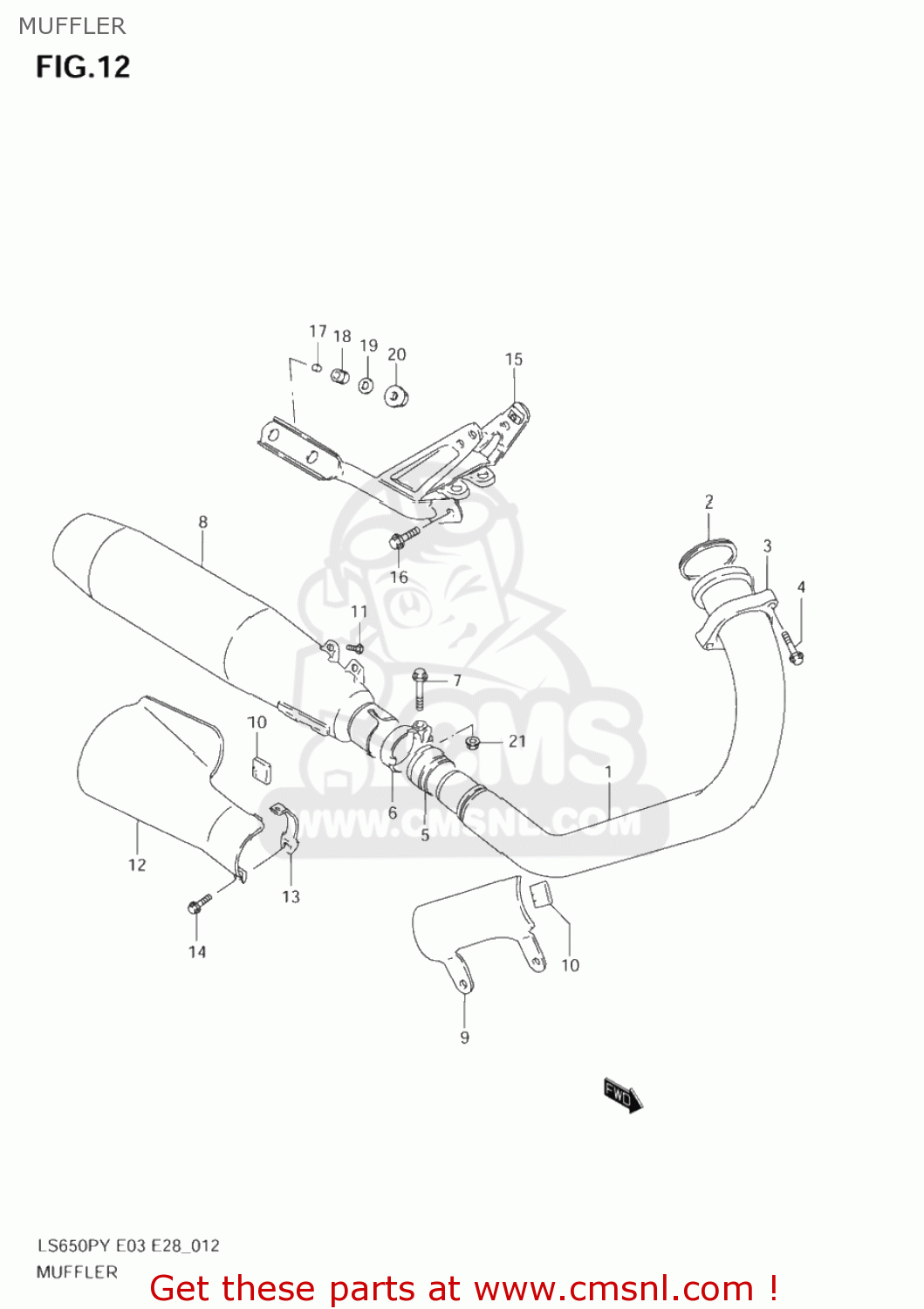

Muffler diagram LS650P SAVAGE 2001 (L1) USA (E03)
MUFFLER LS650P SAVAGE 2001 (L1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1415024B01
ref: 1
PIPE,EXHAUST
€ 193.50
2
1418145C00
ref: 2
GASKET,EXHAUST PIPE (NAS)
€ 6.50
3
1418238A02
ref: 3
CLAMP,EXHAUST PIPE
€ 21.00
4
0910408026
ref: 4
BOLT(8X35)
€ 4.00
5-1
1477124B01
ref: 5-1
CONNECTOR,MUFFLER
€ 23.00
5-2
1477146E00
ref: 5-2
CONNECTOR,MUFFLER
€ 13.50
6-1
1446905A00
ref: 6-1
CLAMP,MUFFLER CONNECTOR LH
€ 16.00
6-2
1445914A10
ref: 6-2
CLAMP,MUFFLER,R(L:42.7)
€ 10.50
7
0155008403
ref: 7
01550-0840A
BOLT
€ 3.50
8-1
1431024B42H01
ref: 8-1
14310-24B44-H01
BODY,MUFFLER
€ 409.50
8-2
1431024B43H01
ref: 8-2
14310-24B44-H01
BODY,MUFFLER
€ 409.50
9
1478024B01
ref: 9
COVER,EXHAUST PIPE
€ 42.50
10
1478924B12
ref: 10
GASKET (NAS)
€ 4.00
11-1
0211206107
ref: 11-1
SCREW
€ 1.50
11-2
0211206103
ref: 11-2
02112-0610B
SCREW
€ 1.50
12
1479024B00
ref: 12
COVER,MUFFLER
€ 90.50
13
1478524B00
ref: 13
CLAMP,MUFFLER COVER
€ 4.50
14-1
0155006207
ref: 14-1
BOLT
€ 2.50
14-2
0155006203
ref: 14-2
01550-0620A
BOLT
€ 2.50
15-1
1441024B00019
ref: 15-1
STAY,MUFFLER SUPPORT
€ 64.00
15-2
1441024B10019
ref: 15-2
STAY,MUFFLER SUPPORT(E33)
€ 45.50
16-1
0910308102
ref: 16-1
09103-08505
BOLT
€ 4.00
16-2
0910308505
ref: 16-2
BOLT(8X20)
€ 4.00
17-1
0918008001
ref: 17-1
09180-08189
SPACER (8.8X12X11)
€ 2.00
17-2
0918008189
ref: 17-2
SPACER(8.5X12X11)
€ 2.00
18
0932012041
ref: 18
CUSHION
€ 4.50
19-1
0916008004
ref: 19-1
09160-08134
WASHER
€ 2.50
19-2
0916008134
ref: 19-2
WASHER(8.5X26X1.6)
€ 2.50
20-1
0831620083
ref: 20-1
08316-2008A
NUT
€ 1.50
20-2
0831931088
ref: 20-2
08319-3108A
NUT
€ 2.50
21
0831620083
ref: 21
08316-2008A
NUT
€ 1.50
