REAR WHEEL
LS650P SAVAGE 2001 (L1) USA (E03)

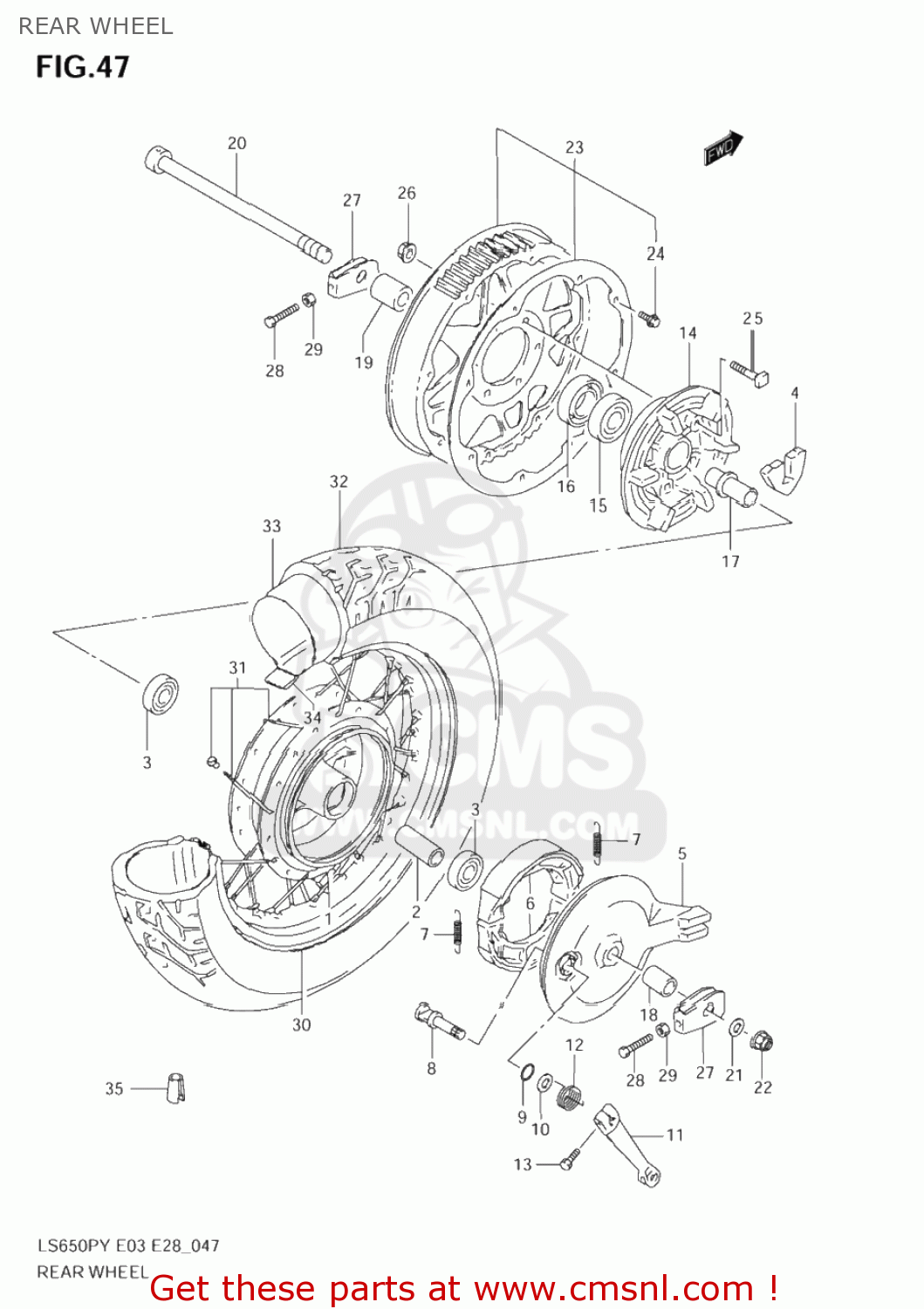

Rear wheel diagram LS650P SAVAGE 2001 (L1) USA (E03)
REAR WHEEL LS650P SAVAGE 2001 (L1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411024B00
ref: 1
HUB,RR WHEEL
€ 461.00
2
0918017069
ref: 2
SPACER(17.5X25X70)
€ 15.00
3
0814363037
ref: 3
BEARING
€ 23.00
4
6465131001
ref: 4
ABSORBER,RR HUB SHOCK
€ 9.50
5
6421024B01
ref: 5
PANEL,RR BRAKE ANCHOR
€ 215.00
6
6440044810
ref: 6
SHOE SET,BRAKE (NAS)
€ 44.00
7
5542030000
ref: 7
SPRING,BRAKE SHOE
€ 3.50
8
5444008004
ref: 8
CAM,BRAKE
€ 19.00
9
0928015003
ref: 9
O RING(D:2.4,ID:14.8)
€ 2.00
10
0916015048
ref: 10
WASHER(15.5X24X1.6)
€ 2.50
11
6445124B00
ref: 11
LEVER,RR BRAKE CAM
€ 26.50
12
0944833006
ref: 12
SPRING
€ 11.00
13
0157006253
ref: 13
01570-0625B
BOLT. FRONT
€ 2.50
14
6461131003
ref: 14
DRUM,RR SPROCKET MOUNTING
€ 140.00
15
0926225073
ref: 15
BEARING(25X62X17)
€ 21.50
16
0928533001
ref: 16
SEAL,OIL(33X62X7)
€ 20.00
17
6473331300
ref: 17
RETAINER,RR SPROCKET DRUM
€ 16.50
18
0918017082
ref: 18
SPACER(17X28X22.3)
€ 7.00
19
0918017083
ref: 19
SPACER(17X33X35.3)
€ 11.00
20
6471124B02
ref: 20
AXLE,RR
€ 42.00
21-1
0916017013
ref: 21-1
09160-17050
WASHER (17X30X3.2)
€ 2.00
21-2
0916017050
ref: 21-2
WASHER(17X30X3.2)
€ 2.00
22
0915916002
ref: 22
NUT
€ 5.00
23
6451024B02
ref: 23
SPROCKET,REAR (NT:68)
€ 370.00
24
0155006123
ref: 24
01550-0612A
BOLT
€ 2.50
25
0910510005
ref: 25
BOLT(10X40)
€ 3.00
26-1
0831931105
ref: 26-1
08319-3110A
NUT 10MM
€ 3.00
26-2
0831931103
ref: 26-2
08319-3110A
NUT
€ 3.00
27
6141024B00
ref: 27
61410-24B01
ADJUSTER,BELT
€ 10.00
28
0910408027
ref: 28
BOLT(8X43)
€ 9.00
29
0831000087
ref: 29
NUT
€ 2.00
30
6531124B01
ref: 30
RIM,RR WHEEL WM(2.75X15 M/C)
€ 247.00
30
6531124B01
ref: 30
RIM,RR WHEEL WM(2.75X15 M/C)
€ 247.00
31
6532024B00
ref: 31
SPOKE SET,RR WHEEL
€ 49.50
32
6510024B02
ref: 32
TIRE,RR(140/80-15M/C 67H)
€ 126.00
32
6510024B02
ref: 32
TIRE,RR(140/80-15M/C 67H)
€ 126.00
33-1
6520038A00
ref: 33-1
TUBE ASSEMBLY,WHEEL,INNER
€ 32.50
33-2
6520026F10
ref: 33-2
TUBE ASSY,WHEEL INNER
€ 37.50
34-1
6526124B01
ref: 34-1
65261-26F00
PROTECTOR
€ 5.00
34-2
6526126F00
ref: 34-2
PROTECTOR,WHL INR TUBE
€ 5.00
35-1
5541238A00
ref: 35-1
55412-41F00
BALANCER,WHEEL
€ 6.50
35-2
5541338A00
ref: 35-2
55413-41F00
BALANCER,WHEEL (30G)
€ 8.00
