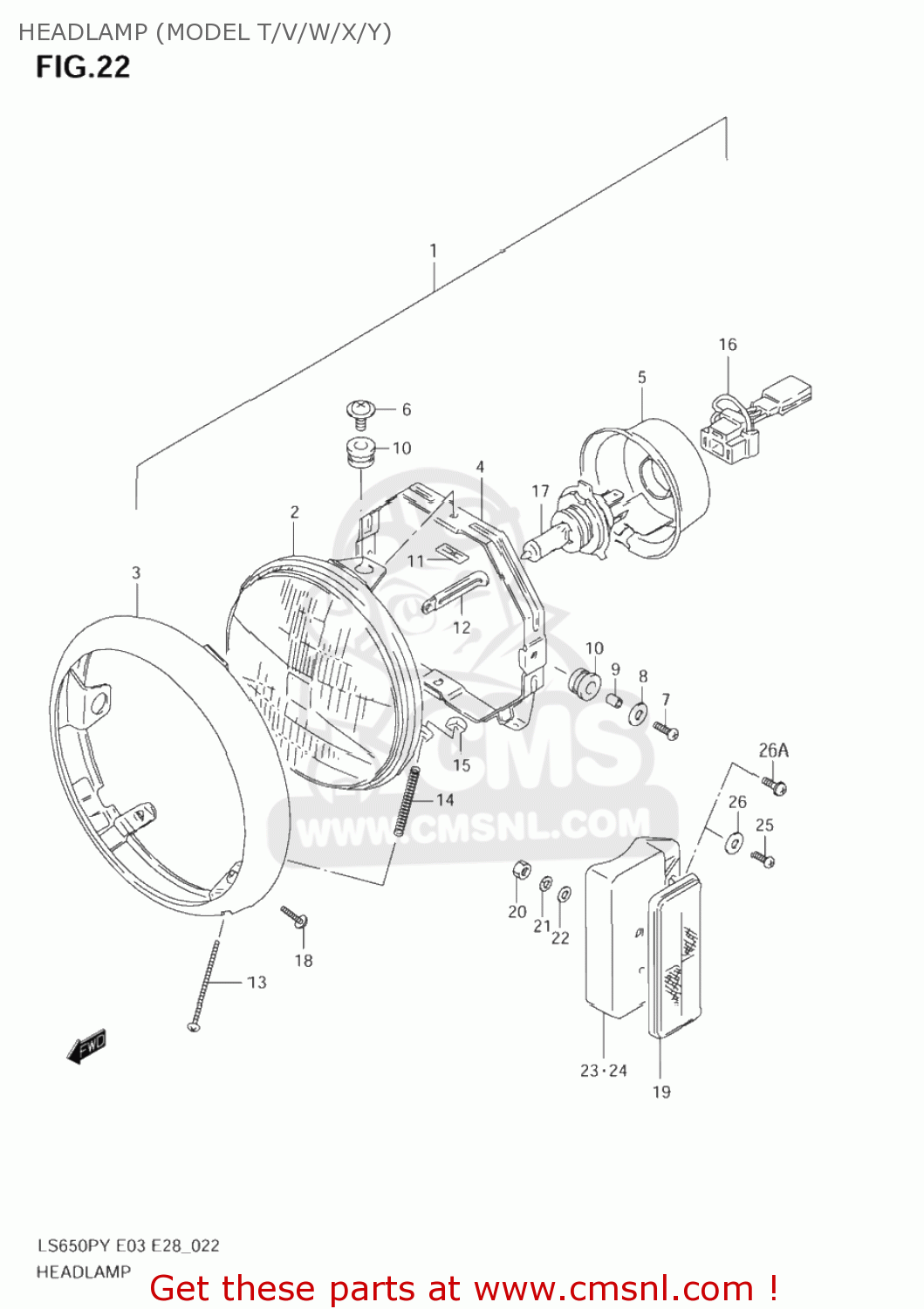

HEADLAMP (MODEL T/V/W/X/Y)

ref

part #

description

quantity

1

3510038A30999
ref: 1
35100-38A61-999

HEADLAMP ASSY

€ 236.00

2

3512138A30
ref: 2

UNIT,LAMP

€ 106.00

3

3511138A00
ref: 3

RIM

€ 27.00

4

3513038A00
ref: 4

RING,MOUNTING

€ 15.00

5

3517338A00
ref: 5

COVER,SOCKET

€ 12.50

6

3513638A00
ref: 6

SCREW,MOUNTING

€ 2.50

7

0912505102
ref: 7

SCREW(5X14)

€ 2.50

8

0916005003
ref: 8
09160-05045

WASHER (5.5X18X1)

€ 2.00

9

3513345230
ref: 9

SPACER

€ 2.00

10

3513945230
ref: 10

CUSHION

€ 1.50

11

3515548510
ref: 11

NUT

€ 2.00

12

0940406429
ref: 12

CLAMP(L:45)

€ 2.50

13

3515138A00
ref: 13

SCREW,ADJUSTING(4X50)

€ 2.50

14

3515431300
ref: 14

SPRING

€ 2.00

15

3515245600
ref: 15

NUT,HEADLAMP ADJUST

€ 3.00

16

3685338A00
ref: 16

SOCKET

€ 10.00

17

0947112060
ref: 17

BULB(12V60/55W,H4)

€ 8.00

18

0214205127
ref: 18

SCREW

€ 1.50

19

3595043431
ref: 19

REFLEX REFLECTOR,FR SIDE

€ 12.00

20

0831000053
ref: 20
08310-0005A

NUT

€ 2.50

21

0832101053
ref: 21
08321-0105A

LOCK,WASHER

€ 3.00

22-1

0916005013
ref: 22-1

WASHER(5.2X16X1)

€ 1.50

22-2

0916005037
ref: 22-2

WASHER(5.5X16X1.2)

€ 1.50

23

3595624B00
ref: 23

BRACKET,FR SIDE RR,R

€ 0.00

24

3595724B00
ref: 24

BRACKET,FR SIDE RR,L

€ 0.00

25

0214205123
ref: 25
02142-0512A

SCREW 5X12

€ 1.50

26

0916005037
ref: 26

WASHER(5.5X16X1.2)

€ 1.50

26A

0913605026
ref: 26A

SCREW(5X12)

€ 2.00

all assemblies
