CLUTCH
LS650P SAVAGE 2001 (L1) USA (E03)

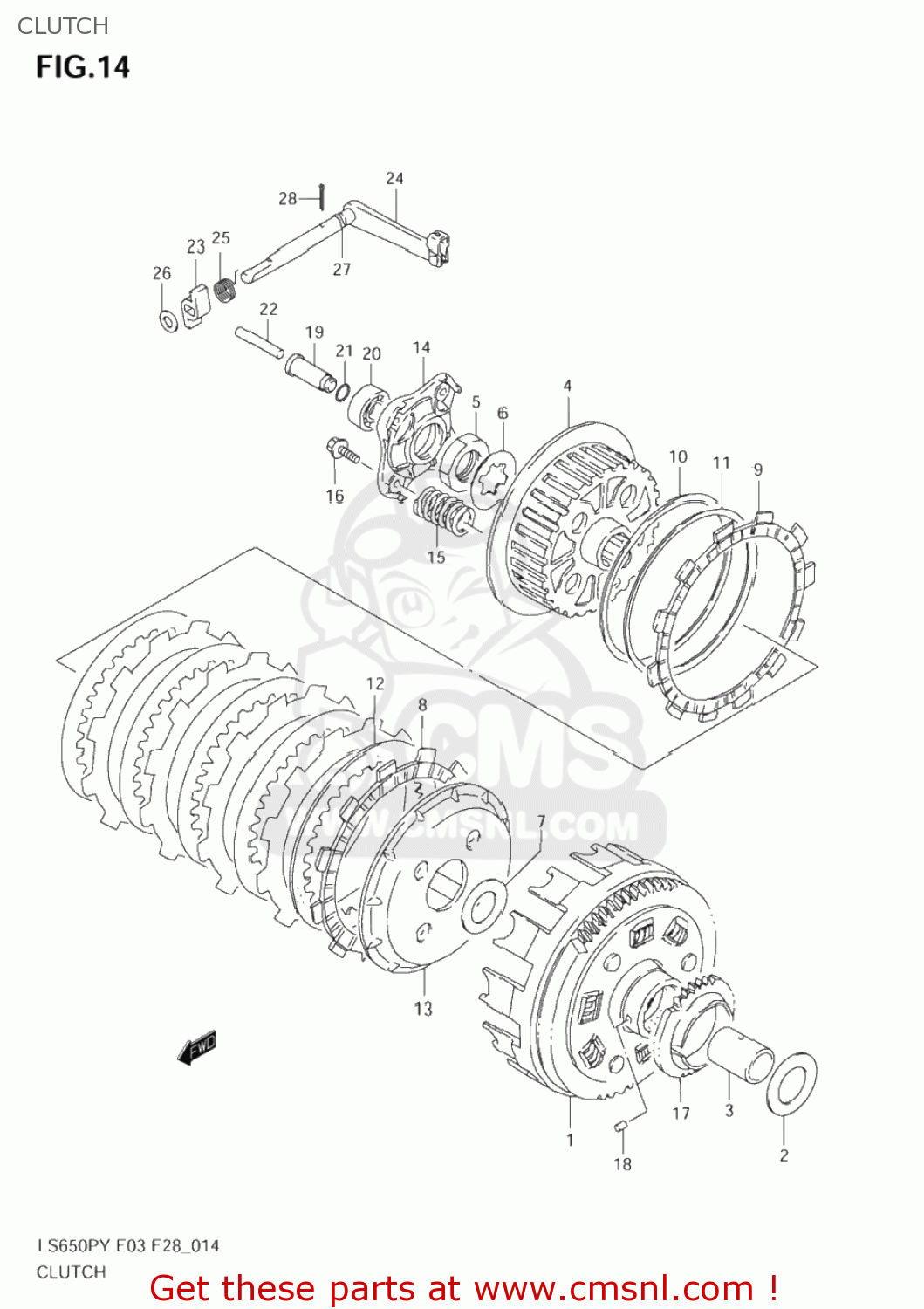

Clutch diagram LS650P SAVAGE 2001 (L1) USA (E03)
CLUTCH LS650P SAVAGE 2001 (L1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2120024B11
ref: 1-1
21200-24B12
GEAR ASSEMBLY,PRIMARY DRIVE
€ 285.00
1-2
2120024B12
ref: 1-2
GEAR ASSY,PRI DRIVEN
€ 285.00
2
0821122443
ref: 2
WASHER
€ 3.00
3
0918022023
ref: 3
SPACER(22X28X32.5)
€ 15.50
4
2141137401
ref: 4
HUB,CLUTCH SLEEVE
€ 78.00
5
0914022009
ref: 5
NUT
€ 6.00
6
0916722005
ref: 6
WASHER,LOCK
€ 2.50
7
0821122403
ref: 7
WASHER
€ 4.00
8
2144137400
ref: 8
PLATE,CLUTCH DRIVE (NAS)
€ 20.50
9
2144237401
ref: 9
PLATE,CLUTCH DRIVE(T:3.5) (NAS)
€ 11.50
10
2147137400
ref: 10
SEAT,WAVE WASHER(T:1.4)
€ 8.00
11
0916400004
ref: 11
WASHER
€ 9.00
12
2145114A00
ref: 12
PLATE,CLUTCH DRIVEN(T:1.6) (NAS)
€ 6.50
13
2146237400
ref: 13
DISC,CLUTCH PRESSURE
€ 41.00
14
2146537400
ref: 14
PLATE,RELEASE
€ 11.50
15
0944020016
ref: 15
SPRING
€ 5.00
16
0155006203
ref: 16
01550-0620A
BOLT
€ 2.50
17
1632124B00
ref: 17
GEAR,ENG OIL PUMP DRIVE
€ 32.50
18
0926106002
ref: 18
PIN(6X6)
€ 1.50
19
2312124B02
ref: 19
PIECE,CLUTCH PUSH
€ 14.00
20
0926212001
ref: 20
BEARING(12X28X8)
€ 15.00
21
0928009005
ref: 21
O RING(D:1.9,ID:8.6)
€ 4.00
22-1
2311124B00445
ref: 22-1
ROD,CLUTCH PUSH
€ 5.50
22-2
2311124B00455
ref: 22-2
ROD,CLUTCH PUSH
€ 5.50
22-3
2311124B00465
ref: 22-3
ROD,CLUTCH PUSH
€ 5.50
23
2326324B01
ref: 23
CAM,CLUTCH RELEASE
€ 7.00
24
2327024B03
ref: 24
ARM ASSY,CLUTCH RELEASE
€ 72.00
25
0944813010
ref: 25
SPRING
€ 14.50
26-1
0821110141
ref: 26-1
09181-10111
WASHER,THRUST
€ 2.00
26-2
0918110111
ref: 26-2
SHIM(10X14X1)
€ 2.00
27
0928007004
ref: 27
O RING(D:1.9,ID:6.8)
€ 1.50
28
0411120208
ref: 28
04111-2020A
PIN 20X20
€ 1.50
