ELECTRICAL (MODEL K4)
LS650P SAVAGE 2001 (L1) USA (E03)

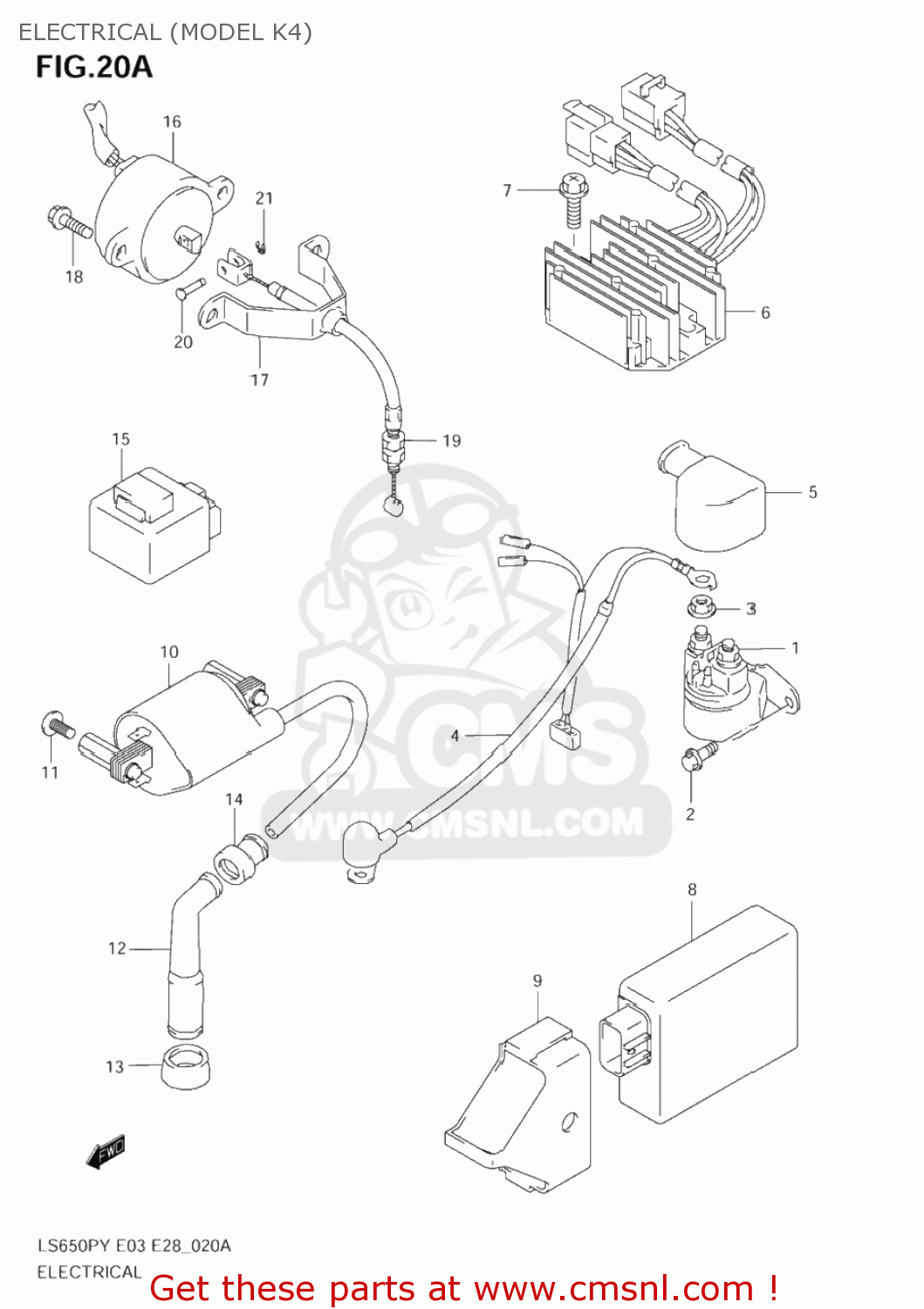

Electrical (model k4) diagram LS650P SAVAGE 2001 (L1) USA (E03)
ELECTRICAL (MODEL K4) LS650P SAVAGE 2001 (L1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180049100
ref: 1
RELAY ASSY,STARTING MOTOR
€ 89.00
2
0155006103
ref: 2
01550-0610A
BOLT
€ 2.50
3
0836135068
ref: 3
08361-3506A
NUT
€ 2.00
4
3385024B10
ref: 4
WIRE,STARTER MOTOR
€ 27.00
5
3362449401
ref: 5
CAP,STARTER RELAY TERMINAL
€ 5.00
6
3280024B10
ref: 6
32800-24B11
RECTIFIER ASSY
€ 243.50
7
0216206203
ref: 7
02162-0620C
BOLT
€ 2.00
8
3290024B30
ref: 8
IGNITOR ASSY
€ 423.50
9
3298024B00
ref: 9
CUSHION,IGNITOR
€ 8.50
10
3341024B00
ref: 10
COIL ASSY,IGNITION
€ 121.50
11
0214205123
ref: 11
02142-0512A
SCREW 5X12
€ 1.50
12
3351045010
ref: 12
CAP ASSY,SPARK PLUG
€ 23.00
13
3354147D00
ref: 13
SEAL,SPARK PLUG
€ 7.00
14
3354238B00
ref: 14
SEAL,HIGH TENSION CORD
€ 4.50
15
3291024B10
ref: 15
CONTROL UNIT,DECOMP
€ 69.50
16
3397024B00
ref: 16
SOLENOID ASSY,DECOMP
€ 174.00
17
3397124B00
ref: 17
BRACKET,DECOMP SOLENOID
€ 10.00
18
0155006163
ref: 18
01550-0616A
BOLT
€ 2.50
19
5890024B00
ref: 19
58900-24B01
CABLE ASSEMBLY,DECOMPRESSION
€ 21.00
20
0920904020
ref: 20
PIN(4X12.5)
€ 5.50
21
0833211033
ref: 21
E RING
€ 1.50
