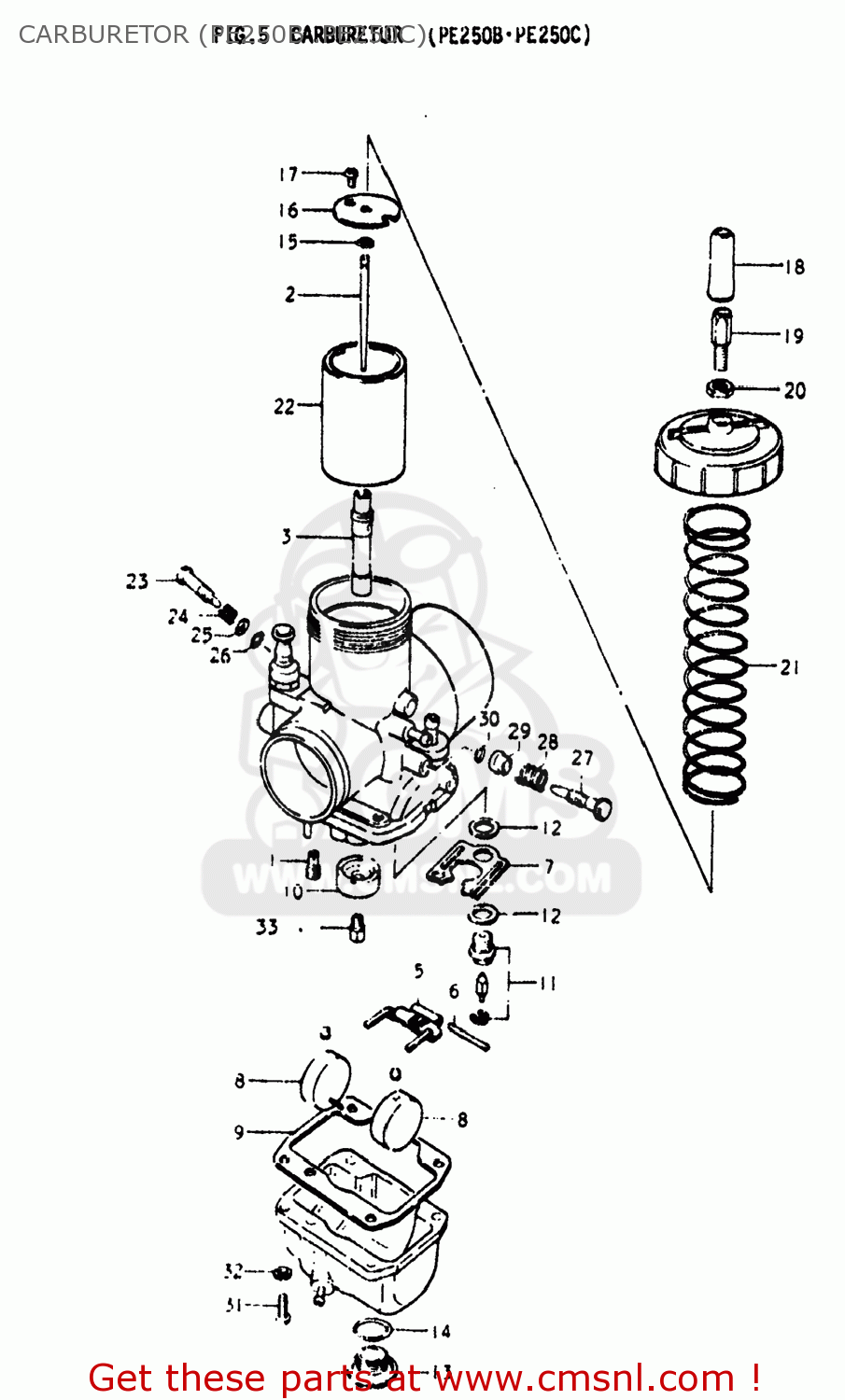

CARBURETOR (PE250B .PE250C)

ref

part #

description

quantity

0-1

1320041640
ref: 0-1

CARBURETOR ASSEMBLY

€ 159.50

0-2

1320041740
ref: 0-2

CARBURETOR ASSEMBLY

€ 0.00

1

0949220002
ref: 1
09492-20008

JET

€ 10.00

2

1338316611
ref: 2

NEEDLE JET

€ 8.00

3

0949400165
ref: 3

JET,NEEDLE

€ 8.50

4

0949152001
ref: 4
09491-52006

JET

€ 7.50

5

1325340010
ref: 5

ARM,FLOAT

€ 8.00

6

1325401010
ref: 6

PIN,FLOAT

€ 3.00

7

1325940011
ref: 7

PLATE

€ 4.00

8

1325218620
ref: 8

FLOAT

€ 27.50

9

1325140600
ref: 9

GASKET,FLOAT CAHMBER (NAS)

€ 8.50

10

1333116510
ref: 10

RING

€ 1.50

11

1337040010
ref: 11
13370-16600

VALVE ASSEMBLY,NEEDLE

€ 45.00

12

1339216600
ref: 12

GASKET,MAIN JET HOLDER (NAS)

€ 3.00

13

1324732210
ref: 13

SCREW,GUIDE

€ 13.00

14

1324941310
ref: 14

O RING,DRAIN PLUG

€ 5.00

15

1339410010
ref: 15

CLIP

€ 4.50

16

1358140010
ref: 16

CLIP

€ 3.50

17

0211104058
ref: 17
02112-0406B

SCREW

€ 2.00

18

1368133010
ref: 18

CAP,CABLE ADJUSTER

€ 8.00

19

1357741612
ref: 19

ADJUSTER,CABLE

€ 8.00

20

1366116600
ref: 20

NUT

€ 5.00

21

1357341610
ref: 21

SPRING,THROTTLE VALVE RETURN

€ 8.50

22

1355141640
ref: 22

VALVE,THROTTLE

€ 30.00

23

1326941640
ref: 23

SCREW,PILOT AIR

€ 11.50

24

1327196110
ref: 24

SPRING

€ 3.50

25

1329141640
ref: 25
13606-18E00

WASHER,PILOT AIR SCREW

€ 3.50

26

1327845010
ref: 26

O RING

€ 5.00

27

1326741640
ref: 27

SCREW,THROTTLE STOP

€ 15.00

28

1326831011
ref: 28

SPRING,THROTTLE STOP

€ 7.50

29

1329134010
ref: 29

COVER

€ 5.50

30

1329430010
ref: 30
13278-02340

O-RING

€ 1.50

31

0211205168
ref: 31
02112-05167

SCREW

€ 2.50

32

0832121058
ref: 32
08321-0105A

LOCK WASHER

€ 2.00

33-1

0949148001
ref: 33-1
09491-48003

JET

€ 13.00

33-2

0949150003
ref: 33-2
09491-50008

JET

€ 12.50

33-3

0949154001
ref: 33-3
09491-54002

JET

€ 11.50

33-4

0949156001
ref: 33-4
09491-56003

JET

€ 14.50

33-5

0949158001
ref: 33-5
09491-58002

JET

€ 7.50

all assemblies
