CARBURETOR (PE250N)
PE250 1979 (N) USA (E03)

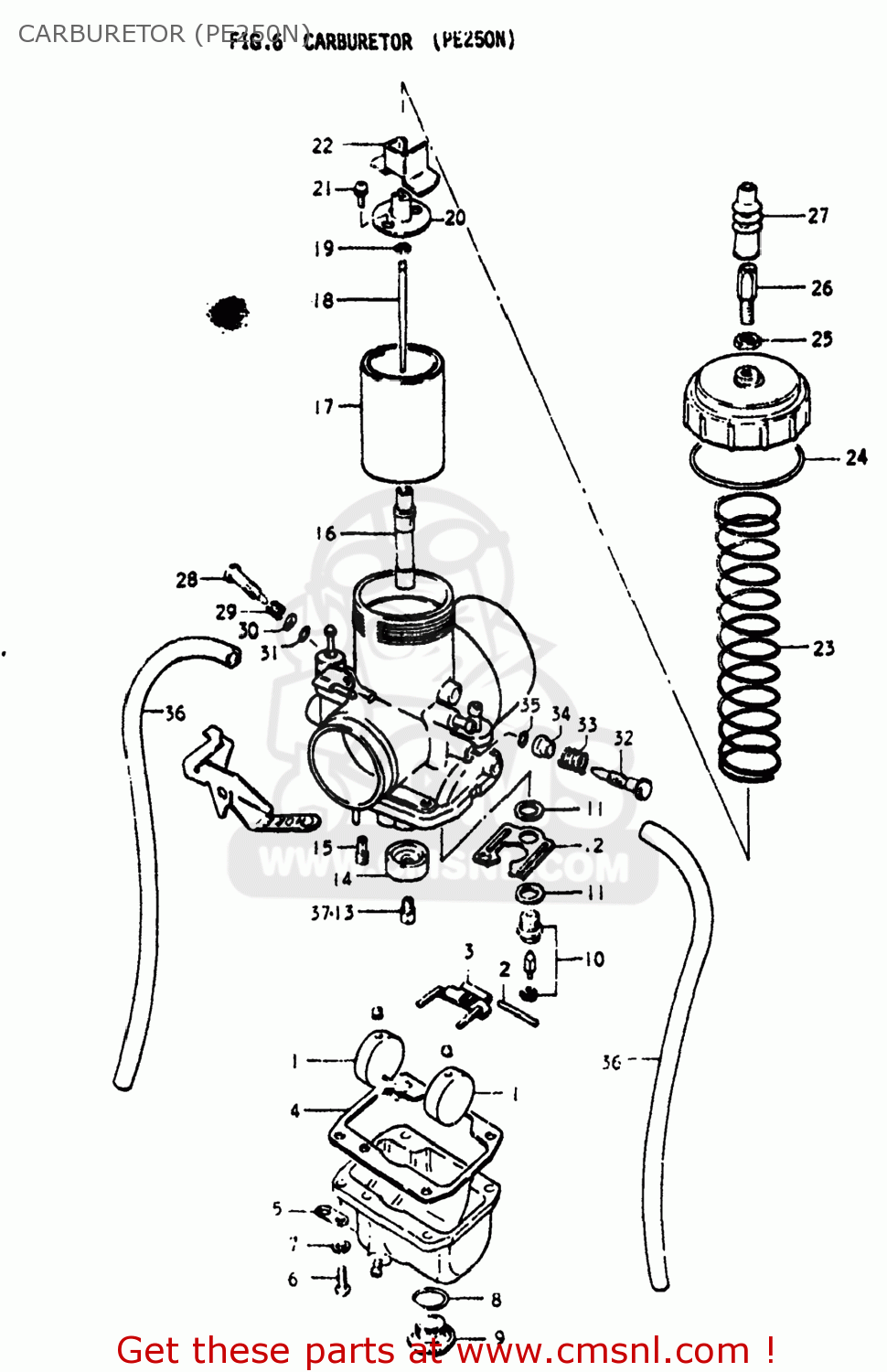

Carburetor (pe250n) diagram PE250 1979 (N) USA (E03)
CARBURETOR (PE250N) PE250 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
1320041750
ref: 0
CARBURETOR ASSEMBLY
€ 132.00
1
1325218620
ref: 1
FLOAT
€ 27.50
2
1325401010
ref: 2
PIN,FLOAT
€ 3.00
3
1325340010
ref: 3
ARM,FLOAT
€ 8.00
4
1325140600
ref: 4
GASKET,FLOAT CAHMBER (NAS)
€ 8.50
5
1369316600
ref: 5
PLATE
€ 8.00
6
0211205168
ref: 6
02112-05167
SCREW
€ 2.50
7
0832121058
ref: 7
08321-0105A
LOCK WASHER
€ 2.00
8
1329440110
ref: 8
09280-20003
O-RING
€ 2.50
9
1324732210
ref: 9
SCREW,GUIDE
€ 13.00
10
1337040010
ref: 10
13370-16600
VALVE ASSEMBLY,NEEDLE
€ 45.00
11
1339216600
ref: 11
GASKET,MAIN JET HOLDER (NAS)
€ 3.00
12
1325940011
ref: 12
PLATE
€ 4.00
13
0949150003
ref: 13
09491-50008
JET
€ 12.50
14
1333116510
ref: 14
RING
€ 1.50
15
0949240004
ref: 15
JET,PILOT(40)
€ 17.50
16
0949400248
ref: 16
JET,NEEDLE
€ 0.00
17
1355141750
ref: 17
VALVE,THROTTLE
€ 0.00
18
1338316611
ref: 18
NEEDLE JET
€ 8.00
19
1339410010
ref: 19
CLIP
€ 4.50
20
1339834010
ref: 20
13581-40200
CONNECTOR
€ 7.00
21
0211203068
ref: 21
02112-0306B
SCREW
€ 2.00
22
1362940200
ref: 22
COVER,HOLDER
€ 4.00
23
1357341610
ref: 23
SPRING,THROTTLE VALVE RETURN
€ 8.50
24
1326641750
ref: 24
GASKET,MIXING CHAMBER (NAS)
€ 2.50
25
1366116600
ref: 25
NUT
€ 5.00
26
1357741612
ref: 26
ADJUSTER,CABLE
€ 8.00
27
1368141510
ref: 27
CAP,CABLE ADJUSTER
€ 11.00
28
1325941640
ref: 28
13269-41640
PLATE
€ 11.50
29
1327196110
ref: 29
SPRING
€ 3.50
30
1329141640
ref: 30
13606-18E00
WASHER,PILOT AIR SCREW
€ 3.50
31
1327845010
ref: 31
O RING
€ 5.00
32
1326741640
ref: 32
SCREW,THROTTLE STOP
€ 15.00
33
1326831011
ref: 33
SPRING,THROTTLE STOP
€ 7.50
34
1329134010
ref: 34
COVER
€ 5.50
35
1329430010
ref: 35
13278-02340
O-RING
€ 1.50
36
1368332410
ref: 36
13683-45070
HOSE
€ 10.00
37-1
0949144001
ref: 37-1
09491-44007
JET,MAIN (220)
€ 9.50
37-2
0949146001
ref: 37-2
JET,MAIN(230)
€ 6.50
37-3
0949148001
ref: 37-3
09491-48003
JET
€ 13.00
37-4
0949150003
ref: 37-4
09491-50008
JET
€ 12.50
37-5
0949152001
ref: 37-5
09491-52006
JET
€ 7.50
