CRANKCASE
PE250 1979 (N) USA (E03)

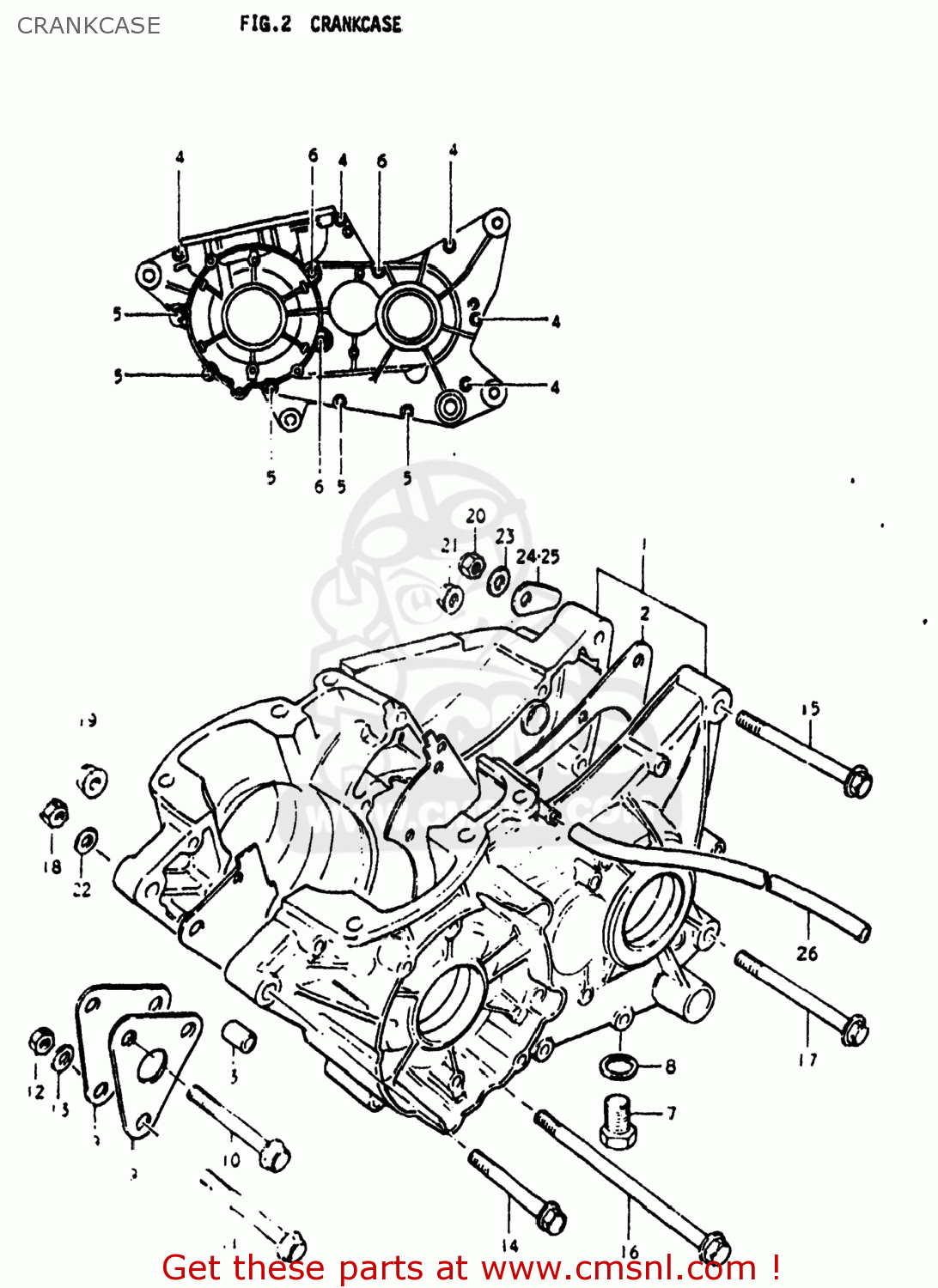

Crankcase diagram PE250 1979 (N) USA (E03)
CRANKCASE PE250 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130041850
ref: 1-1
11300-41815
CRANKCASE SET
€ 183.00
1-2
1130041815
ref: 1-2
CRANKCASE SET
€ 183.00
2
1148141100
ref: 2
11481-41101
GASKET,CRANKCASE (MCA)
€ 12.00
3
0920613001
ref: 3
04211-13189
PIN
€ 2.50
4
0211206458
ref: 4
02112-06457
SCREW (6X45)
€ 2.00
5
0211206557
ref: 5
SCREW
€ 2.50
6
0211206708
ref: 6
02112-06707
SCREW 6X70
€ 3.00
7
0924714007
ref: 7
09247-14025
PLUG
€ 3.50
8
0916814004
ref: 8
GASKET(14X19.2X2) (NAS)
€ 2.50
9
4159141100
ref: 9
41591-41101
PLATE,ENGINE MOUNTING
€ 9.50
10
0910308017
ref: 10
09103-08099
BOLT
€ 6.00
11-1
0910308012
ref: 11-1
09103-08158
BOLT
€ 4.50
11-2
0910308016
ref: 11-2
BOLT(8X80)
€ 8.00
12
0915908020
ref: 12
NUT
€ 2.50
13
0832211088
ref: 13
08322-01087
WASHER
€ 2.00
14-1
0910308017
ref: 14-1
09103-08099
BOLT
€ 6.00
14-2
0151708708
ref: 14-2
01550-08707
BOLT (8X70)
€ 2.00
15
0910310010
ref: 15
BOLT
€ 15.50
16-1
0910308028
ref: 16-1
BOLT
€ 12.50
16-2
0910308033
ref: 16-2
BOLT
€ 4.50
17
0910308016
ref: 17
BOLT(8X80)
€ 8.00
18
0915908020
ref: 18
NUT
€ 2.50
19
0831931088
ref: 19
08319-3108A
NUT
€ 2.50
20
0915910018
ref: 20
09159-10048
NUT
€ 2.00
21
0831931108
ref: 21
NUT
€ 3.00
22
0832211088
ref: 22
08322-01087
WASHER
€ 2.00
23
0832211108
ref: 23
08322-01107
WASHER
€ 2.50
24
0916910011
ref: 24
WASHER
€ 1.00
25
0916910012
ref: 25
WASHER
€ 1.00
26
0934305037
ref: 26
09352-50823-00B
HOSE
€ 13.00
