FUEL - TANK (PE250C .PE250N)
PE250 1979 (N) USA (E03)

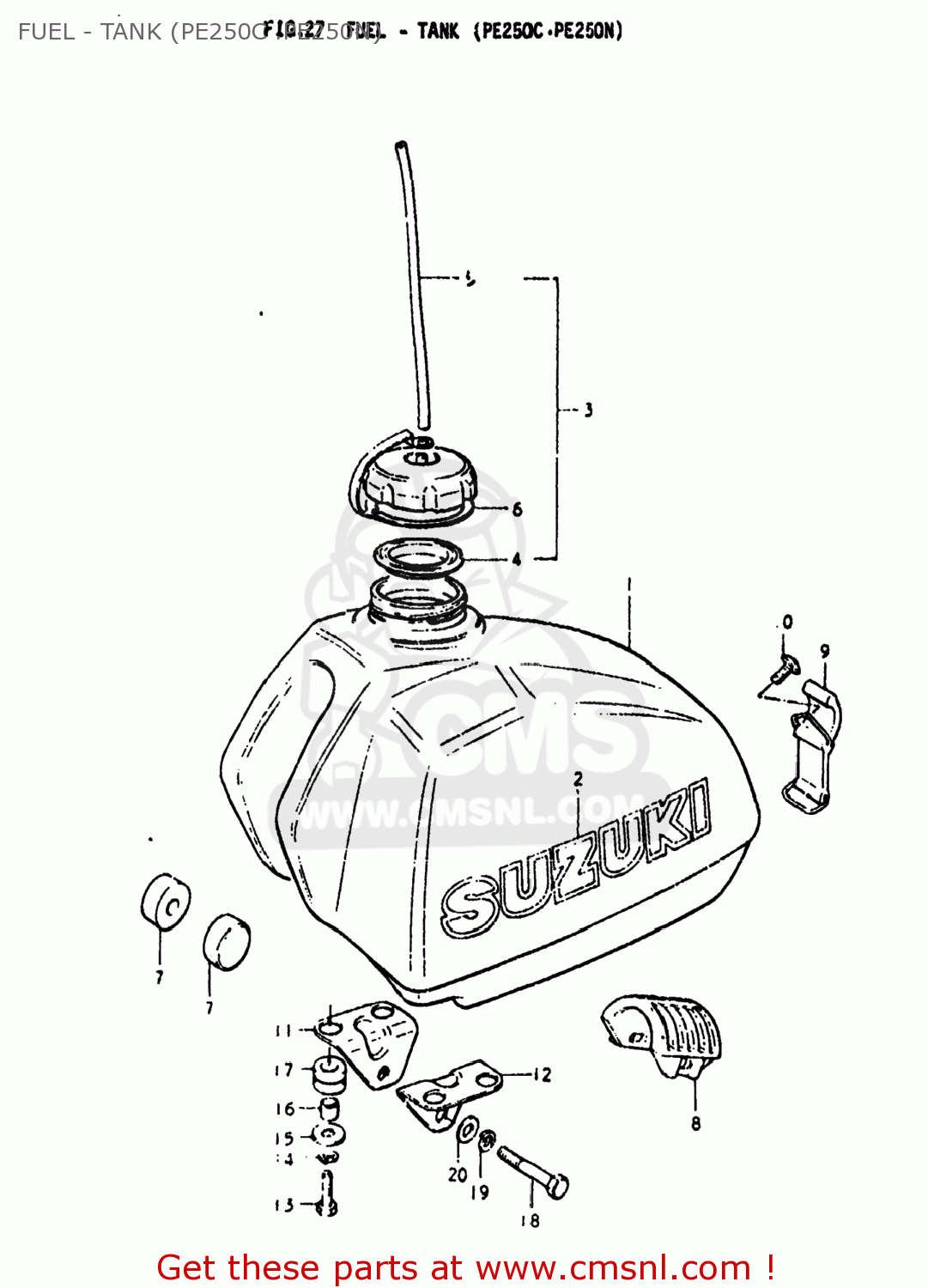

Fuel - tank (pe250c .pe250n) diagram PE250 1979 (N) USA (E03)
FUEL - TANK (PE250C .PE250N) PE250 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4410041410163
ref: 1-1
44100-41411-163
TANK ASSEMBLY,FUEL
€ 172.00
1-2
4410041411163
ref: 1-2
TANK ASSEMBLY,FUEL
€ 172.00
2
6811141110019
ref: 2
EMBLEM(BLACK)
€ 14.00
3
4420041110
ref: 3
CAP ASSY,FUEL TANK
€ 17.00
4
4424841300
ref: 4
GASKET,FUEL TANK CAP (NAS)
€ 6.00
5
0934305031
ref: 5
44420-44AR0
HOSE
€ 13.00
6
4448741300
ref: 6
BAND,FUEL TANK CAP
€ 3.00
7
0932910011
ref: 7
CUSHION
€ 1.50
8
4454141300
ref: 8
CUSHION,FUEL TANK
€ 9.00
9
4456041300
ref: 9
BAND
€ 5.50
10
0912506029
ref: 10
SCREW(6X18)
€ 2.50
11-1
4452041500
ref: 11-1
44520-41401
BRACKET,FUEL TANK
€ 24.00
11-2
4452041400
ref: 11-2
44520-41401
BRACKET,FUEL TANK
€ 24.00
12-1
4453141400
ref: 12-1
44531-41402
BRACKET,FUEL TANK
€ 0.00
13
0110706258
ref: 13
01500-06257
BOLT
€ 2.00
14
0832121068
ref: 14
08321-01067
LOCK WASHER
€ 2.50
15-1
0916006027
ref: 15-1
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
15-2
0916006004
ref: 15-2
09160-06134
WASHER (6.5X24X1.6)
€ 1.50
16-1
0918006030
ref: 16-1
09180-06310
SPACER (6.8X10X10)
€ 2.00
16-2
0918006076
ref: 16-2
SPACER(6.8X12X11)
€ 3.00
17-1
0932010010
ref: 17-1
09320-10015
CUSHION
€ 2.50
17-2
0932011008
ref: 17-2
CUSHION
€ 3.00
18
0110708608
ref: 18
01500-0860B
BOLT
€ 2.50
19
0832121088
ref: 19
08321-01087
LOCK WASHER
€ 2.00
20
0832221088
ref: 20
08322-01087
WASHER
€ 2.00
