REAR WHEEL (PE250N)
PE250 1979 (N) USA (E03)

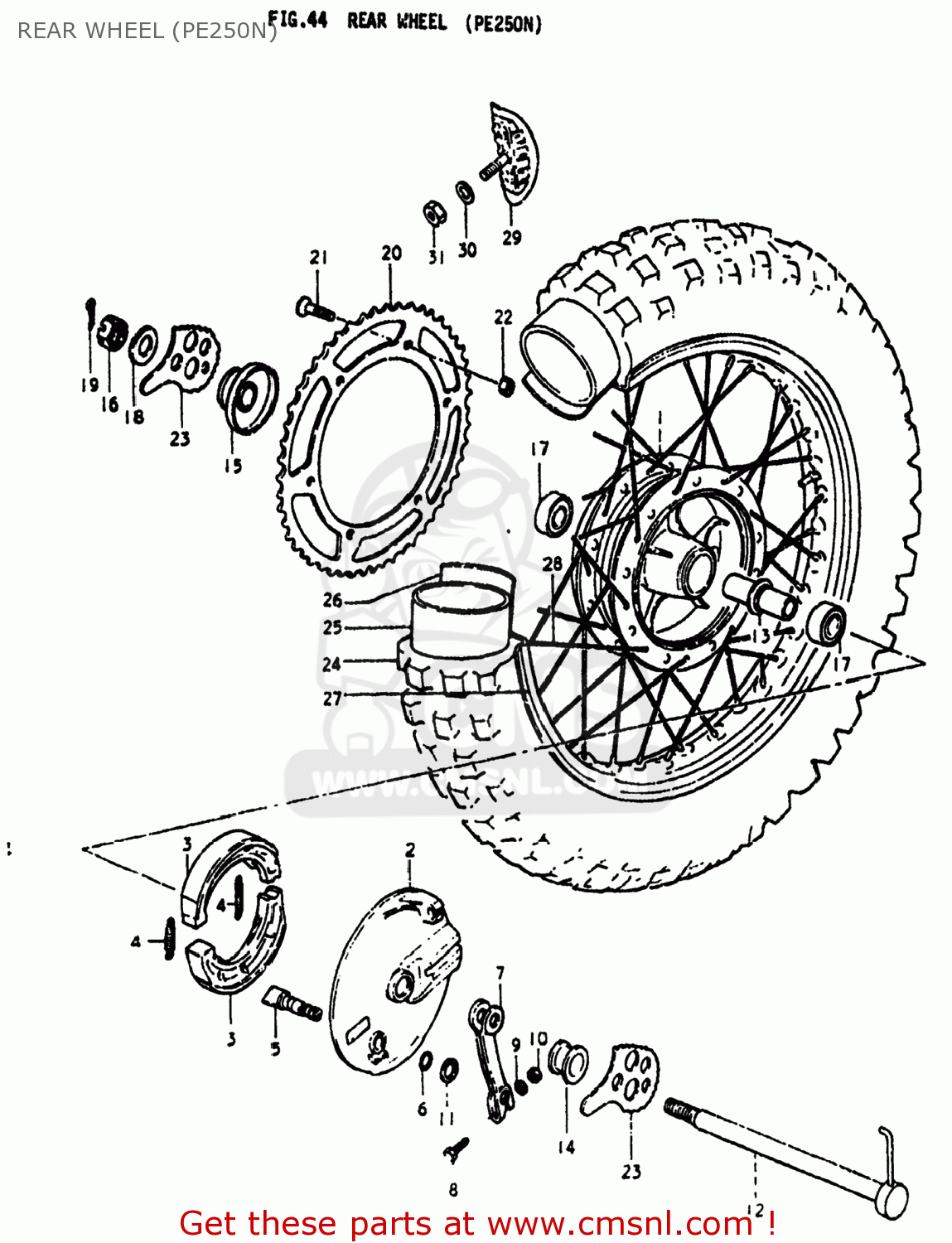

Rear wheel (pe250n) diagram PE250 1979 (N) USA (E03)
REAR WHEEL (PE250N) PE250 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6411041602
ref: 1-1
HUB COMP,REAR
€ 166.50
1-2
6410041820
ref: 1-2
HUB REAR
€ 256.00
1-2
6410041820
ref: 1-2
HUB REAR
€ 256.00
2
6421041410
ref: 2
64210-41411
PANEL,REAR HUB
€ 68.50
3
5441041410
ref: 3
64400-02830
SHOE,BRAKE
€ 35.00
4
5542041100
ref: 4
SPRING
€ 5.50
5
5444008002
ref: 5
54440-08004
CAM,FRONT BRAKE
€ 19.00
6
0928015001
ref: 6
09280-15003
O-RING,BOSS
€ 2.00
7
6445141410
ref: 7
LEVER,REAR BRAKE CAM
€ 8.50
8
0910006050
ref: 8
09100-06150
BOLT
€ 1.50
9
0832221068
ref: 9
08322-01067
WASHER
€ 2.00
10
0831011068
ref: 10
08310-00067
NUT
€ 2.50
11
0916015001
ref: 11
09160-15048
WASHER (15X24X1.6)
€ 2.50
12
6471041410
ref: 12
AXLE,REAR
€ 26.00
13
6473041101
ref: 13
SPACER,REAR HUB BEARING
€ 11.50
14
6474141400
ref: 14
SPACER,REAR AXLE,RIGHT
€ 3.50
15
6475041410
ref: 15
SPACER,REAR AXLE
€ 7.50
16
0914116001
ref: 16
NUT
€ 6.50
17
0812362037
ref: 17
08133-62037
BEARING
€ 24.50
18
0832211168
ref: 18
08322-01167
WASHER
€ 2.00
19
0411140408
ref: 19
04111-4040A
PIN, COTTER
€ 2.00
20-1
6451141140
ref: 20-1
64511-41141
SPROCKET,REAR
€ 169.00
20-2
6451141130
ref: 20-2
64511-41131
SPROCKET,REAR
€ 79.50
20-3
6451141150
ref: 20-3
64511-41151
SPROCKET,REAR
€ 61.00
21
0912008003
ref: 21
09120-08004
SCREW
€ 3.00
22
0915908021
ref: 22
NUT
€ 1.50
23
6141141410
ref: 23
ADJUSTER,CHAIN
€ 6.50
24
6510041410
ref: 24
TIRE
€ 73.00
25
6520041110
ref: 25
65200-16510
TUBE ASSEMBLY,WHEEL,INNER
€ 16.00
26
6526116510
ref: 26
65261-33030
PROTECTOR,WHEEL,INNER
€ 5.50
27
6531141220
ref: 27
RIM,REAR WHEEL
€ 119.00
28
6530041850
ref: 28
65300-41851
SPOKE SET,REAR
€ 48.00
29
6527032101
ref: 29
65270-28E00
STOPPER,BEAD
€ 38.00
30
0832211088
ref: 30
08322-01087
WASHER
€ 2.00
31
0831012088
ref: 31
08310-00087
NUT
€ 2.00
