REAR - BRAKE
PE250 1979 (N) USA (E03)

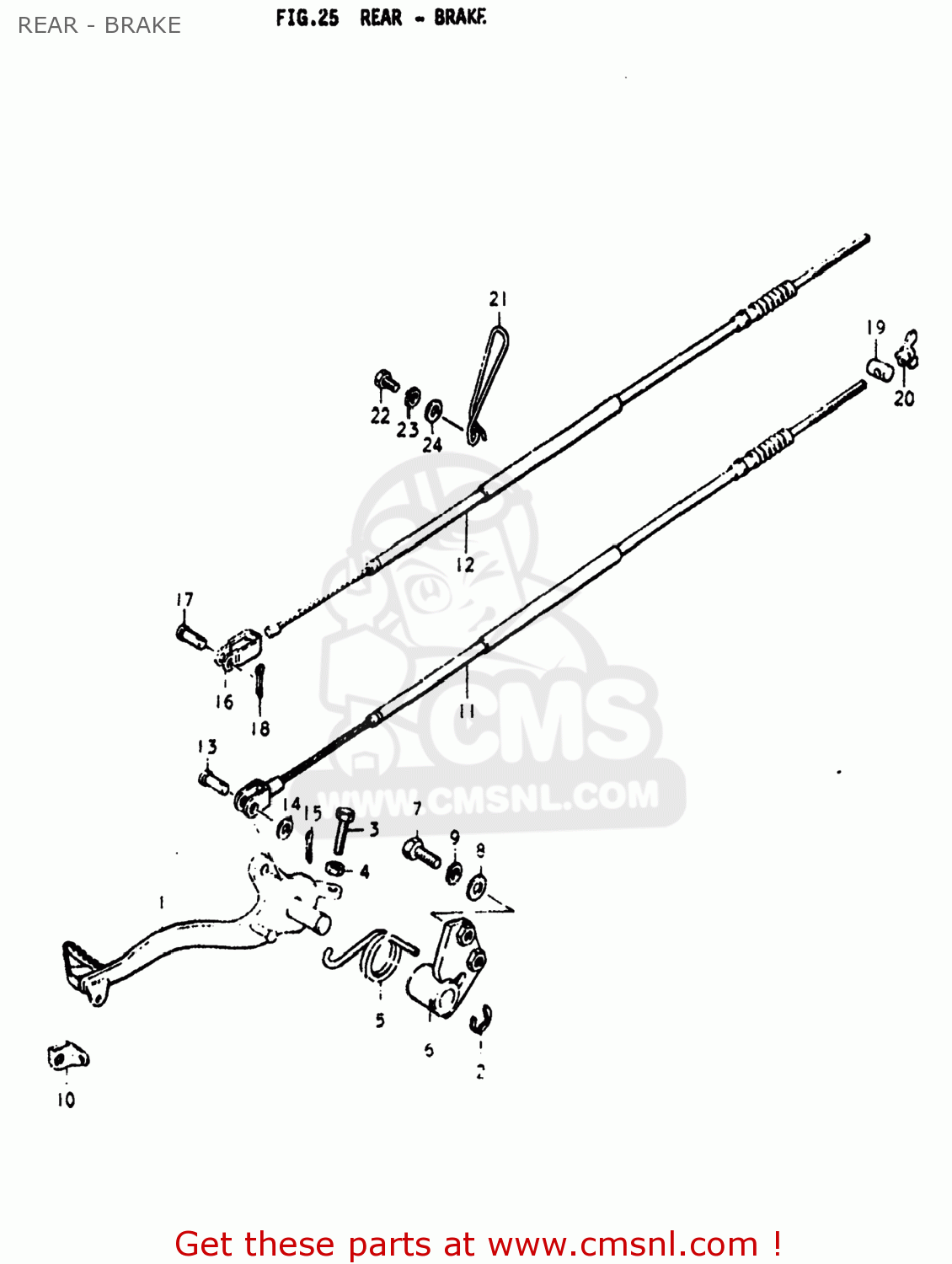

Rear - brake diagram PE250 1979 (N) USA (E03)
REAR - BRAKE PE250 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4311041400
ref: 1-1
PEDAL,BRAKE
€ 40.00
1-2
4311041401
ref: 1-2
43110-41400
PEDAL,BRAKE
€ 40.00
2
0833211098
ref: 2
08332-1109A
E RING
€ 1.50
3
0910006009
ref: 3
BOLT(6X23)
€ 1.50
4
0831011068
ref: 4
08310-00067
NUT
€ 2.50
5
0944828002
ref: 5
SPRING
€ 1.50
6
4313041100
ref: 6
VALVE ASSEMBLY,WHEEL RIM
€ 13.50
7
0110708208
ref: 7
01500-08207
BOLT
€ 3.00
8
0832221088
ref: 8
08322-01087
WASHER
€ 2.00
9
0832121088
ref: 9
08321-01087
LOCK WASHER
€ 2.00
10
4313741400
ref: 10
NO PRODUCT DESCRIPTION AVAILABLE
€ 1.50
11
5851041400
ref: 11
CABLE ASSEMBLY,REAR BRAKE
€ 0.00
12-1
5851041410
ref: 12-1
58510-41411
CABLE ASSEMBLY,REAR BRAKE
€ 24.50
12-2
5851041411
ref: 12-2
CABLE ASSEMBLY,REAR BRAKE
€ 24.50
13
0920005001
ref: 13
PIN(L:17.5)
€ 1.50
14
0832221068
ref: 14
08322-01067
WASHER
€ 2.00
15
0411120208
ref: 15
04111-2020A
PIN 20X20
€ 1.50
16
5864541500
ref: 16
HOOK,REAR BRAKE PEDAL
€ 3.50
17
0920006004
ref: 17
PIN(L:13)
€ 1.50
18
0411120158
ref: 18
04111-2015A
PIN
€ 1.50
19
0920913003
ref: 19
09209-13018
PIN
€ 3.50
20
0914406005
ref: 20
NUT
€ 2.50
21
5862141100
ref: 21
GUIDE,CABLE
€ 2.50
22
0110706128
ref: 22
01500-06127
BOLT
€ 2.00
23
0832121068
ref: 23
08321-01067
LOCK WASHER
€ 2.50
24
0832221068
ref: 24
08322-01067
WASHER
€ 2.00
