MUFFLER (PE250N)
PE250 1979 (N) USA (E03)

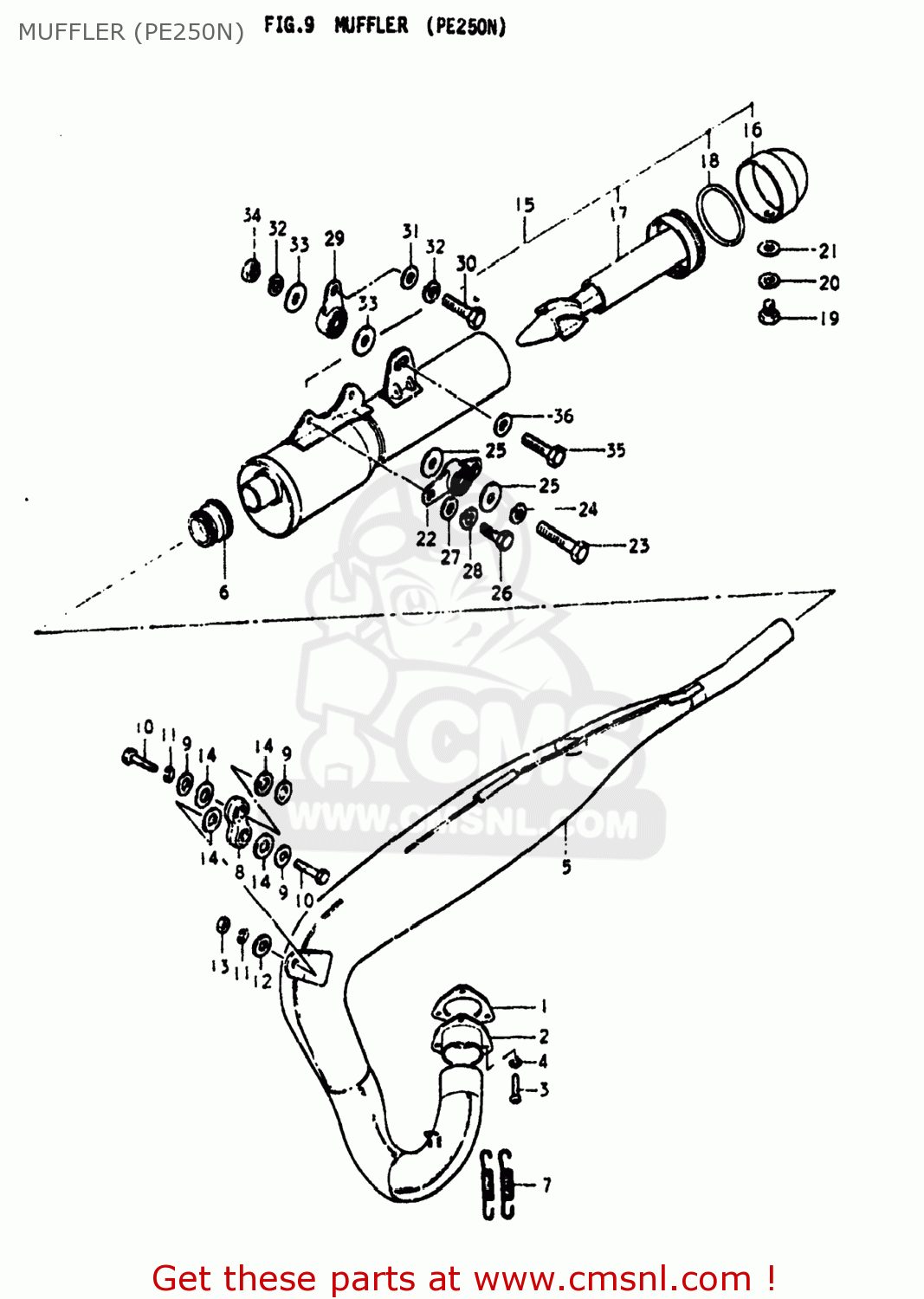

Muffler (pe250n) diagram PE250 1979 (N) USA (E03)
MUFFLER (PE250N) PE250 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1418116300
ref: 1
14181-16300-H17
GASKET,EXHAUST PIPE (MCA)
€ 4.00
2
1417016300
ref: 2
14170-16301
FLANGE,EXHAUST PIPE
€ 70.50
3
0211206208
ref: 3
02112-06207
SCREW
€ 2.00
4
0832121068
ref: 4
08321-01067
LOCK WASHER
€ 2.50
5
1431041420
ref: 5
14310-41420-H01
BODY,MUFFLER
€ 370.00
6
1477141400
ref: 6
CONNECTOR,MUFFLER
€ 17.00
7
0944311002
ref: 7
SPRING
€ 4.50
8
1477040000
ref: 8
DAMPER,MUFFLER
€ 139.00
9
0916008035
ref: 9
09160-08130
WASHER
€ 2.00
10
0110708358
ref: 10
01500-0835B
BOLT
€ 3.50
11
0832121088
ref: 11
08321-01087
LOCK WASHER
€ 2.00
12
0832211088
ref: 12
08322-01087
WASHER
€ 2.00
13
0831012088
ref: 13
08310-00087
NUT
€ 2.00
14
0916113001
ref: 14
WASHER(13X28X1.6)
€ 2.50
15
1430341410
ref: 15
MUFFLER ASSEMBLY,SECOND
€ 105.00
16
1464941500
ref: 16
14649-30520
COVER,SECOND MUFFLER TAIL
€ 10.00
17
1485030510
ref: 17
TUBE,MUFFLER CLEAN OUT
€ 22.50
18
0928055001
ref: 18
O-RING (D:3.5 ID:54.4)
€ 5.50
19
0912806013
ref: 19
SCREW(6X8)
€ 1.50
20
0832121068
ref: 20
08321-01067
LOCK WASHER
€ 2.50
21
0832221068
ref: 21
08322-01067
WASHER
€ 2.00
22
1477041400
ref: 22
DAMPER,MUFFLER SUPPORT
€ 14.00
23
0110708458
ref: 23
01500-08453
BOLT 8X45
€ 2.50
24
0832121088
ref: 24
08321-01087
LOCK WASHER
€ 2.00
25
0916008002
ref: 25
09160-08135
WASHER (8.5X29X1.6)
€ 2.00
26
0110706168
ref: 26
01500-06167
BOLT, UPPER
€ 3.00
27
0832221068
ref: 27
08322-01067
WASHER
€ 2.00
28
0832121068
ref: 28
08321-01067
LOCK WASHER
€ 2.50
29
1477016440
ref: 29
14700-40810
DAMPER,MUFFLER SUPPORT
€ 28.00
30
0110708358
ref: 30
01500-0835B
BOLT
€ 3.50
31
0832211088
ref: 31
08322-01087
WASHER
€ 2.00
32
0832121088
ref: 32
08321-01087
LOCK WASHER
€ 2.00
33
0916008002
ref: 33
09160-08135
WASHER (8.5X29X1.6)
€ 2.00
34
0831012088
ref: 34
08310-00087
NUT
€ 2.00
35
0110708353
ref: 35
01500-0835B
BOLT,8X35
€ 2.50
36
0832211088
ref: 36
08322-01087
WASHER
€ 2.00
