FRONT FORK (PE250B)
PE250 1979 (N) USA (E03)

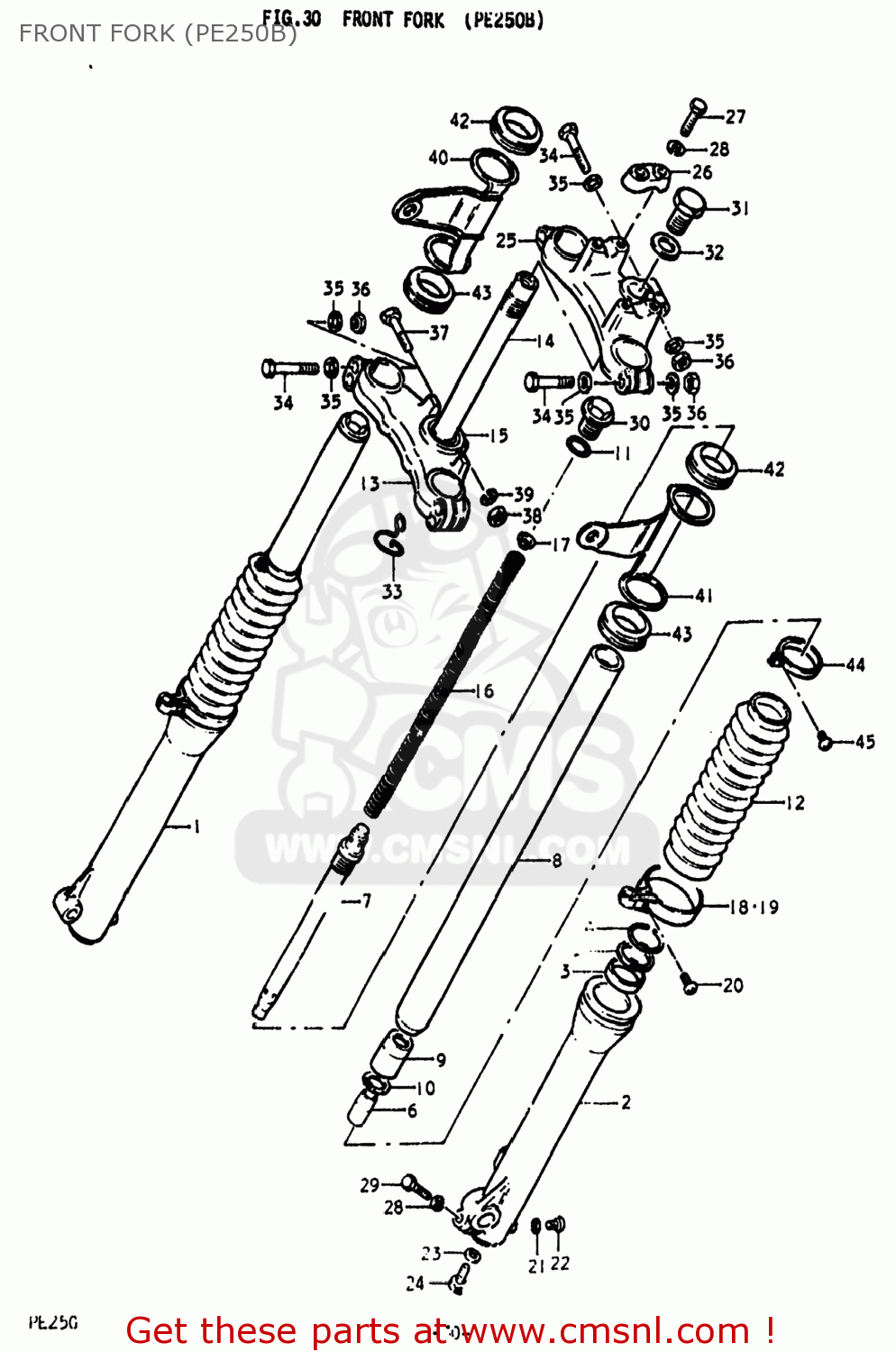

Front fork (pe250b) diagram PE250 1979 (N) USA (E03)
FRONT FORK (PE250B) PE250 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
5110041410291
ref: 0
DAMPER SET
€ 0.00
1
5113041410
ref: 1
TUBE,OUTER,RIGHT
€ 0.00
2
5114041410
ref: 2
TUBE,OUTER,LEFT
€ 89.00
3
5115341110
ref: 3
51153-16730
OIL SEAL,FRONT FORK
€ 28.50
4
5115632110
ref: 4
CIRCLIP,FORK OIL SEAL
€ 6.00
5
5115832110
ref: 5
RING,FORK BACK UP
€ 3.00
6
5119541210
ref: 6
51195-49071
PIECE,OIL LOCK
€ 12.00
7
5114641410
ref: 7
CYLINDER,FRONT FORK
€ 0.00
8
5111141410
ref: 8
TUBE,FORK,INNER
€ 70.50
9
5111238010
ref: 9
PISTON,FORK INNER TUBE
€ 0.00
10
5111838010
ref: 10
RING
€ 0.00
11
5111716310
ref: 11
O RING
€ 4.50
12
5157141410
ref: 12
BOOT
€ 18.50
13
5141141110
ref: 13
STEM,STEERING
€ 65.50
14
5140141310
ref: 14
STEM,STEERING
€ 44.00
15
5162133001
ref: 15
RACE,STEERING OUTER LWR
€ 10.00
16
5117141410
ref: 16
SPRING
€ 15.00
17
5117238010
ref: 17
GUIDE,FRONT FORK SPRING C
€ 9.50
18
5157241410
ref: 18
BAND,FRONT FORK COVER
€ 16.50
19
5157341410
ref: 19
BAND,FRONT FORK COVER
€ 10.00
20
0211204108
ref: 20
02112-04107
SCREW 4X10
€ 2.00
21
5118303010
ref: 21
GASKET,DRAIN,PLUG (NAS)
€ 3.00
22
0211104087
ref: 22
02112-04087
SCREW
€ 1.50
23
5114841310
ref: 23
GASKET (NAS)
€ 2.50
24
5114716510
ref: 24
BOLT,FORK CYLINDER(10X25)
€ 3.50
25
5131141110
ref: 25
51311-40210-08C
HEAD,STEERING STEM
€ 0.00
26
5621127100
ref: 26
HOLDER,HANDLEBAR
€ 12.50
27
0110708358
ref: 27
01500-0835B
BOLT
€ 3.50
28
0832121088
ref: 28
08321-01087
LOCK WASHER
€ 2.00
29
0110708308
ref: 29
01500-08307
BOLT (8X30)
€ 2.50
30
5135138010
ref: 30
51351-40210
BOLT,FORK
€ 14.00
31
5135141310
ref: 31
BOLT,STEERING STEM HEAD
€ 10.50
32
5135641310
ref: 32
WASHER
€ 6.00
33
5145541411
ref: 33
51455-29330
CLAMP,METER CABLE
€ 5.50
34
0120408557
ref: 34
BOLT
€ 2.50
35
0832221088
ref: 35
08322-01087
WASHER
€ 2.00
36
0831012088
ref: 36
08310-00087
NUT
€ 2.00
37
0110710608
ref: 37
01500-1060A
BOLT 10X60
€ 3.50
38
0831012108
ref: 38
08310-00107
NUT
€ 2.50
39
0832121108
ref: 39
08321-01107
LOCK WASHER
€ 2.00
40
5153041410291
ref: 40
BRACKET,HEADLAMP,RIGHT
€ 12.50
41
5154041410291
ref: 41
BRACKET,HEADLAMP,LEFT
€ 11.50
42
5155641410
ref: 42
GASKET
€ 6.00
43
5155341410
ref: 43
CUSHION,HEADLAMP BRACKET
€ 5.50
44
5157541410
ref: 44
BAND,BOOT
€ 8.00
45
0211104087
ref: 45
02112-04087
SCREW
€ 1.50
