FRONT FORK (PE250C .PE250N)
PE250 1979 (N) USA (E03)

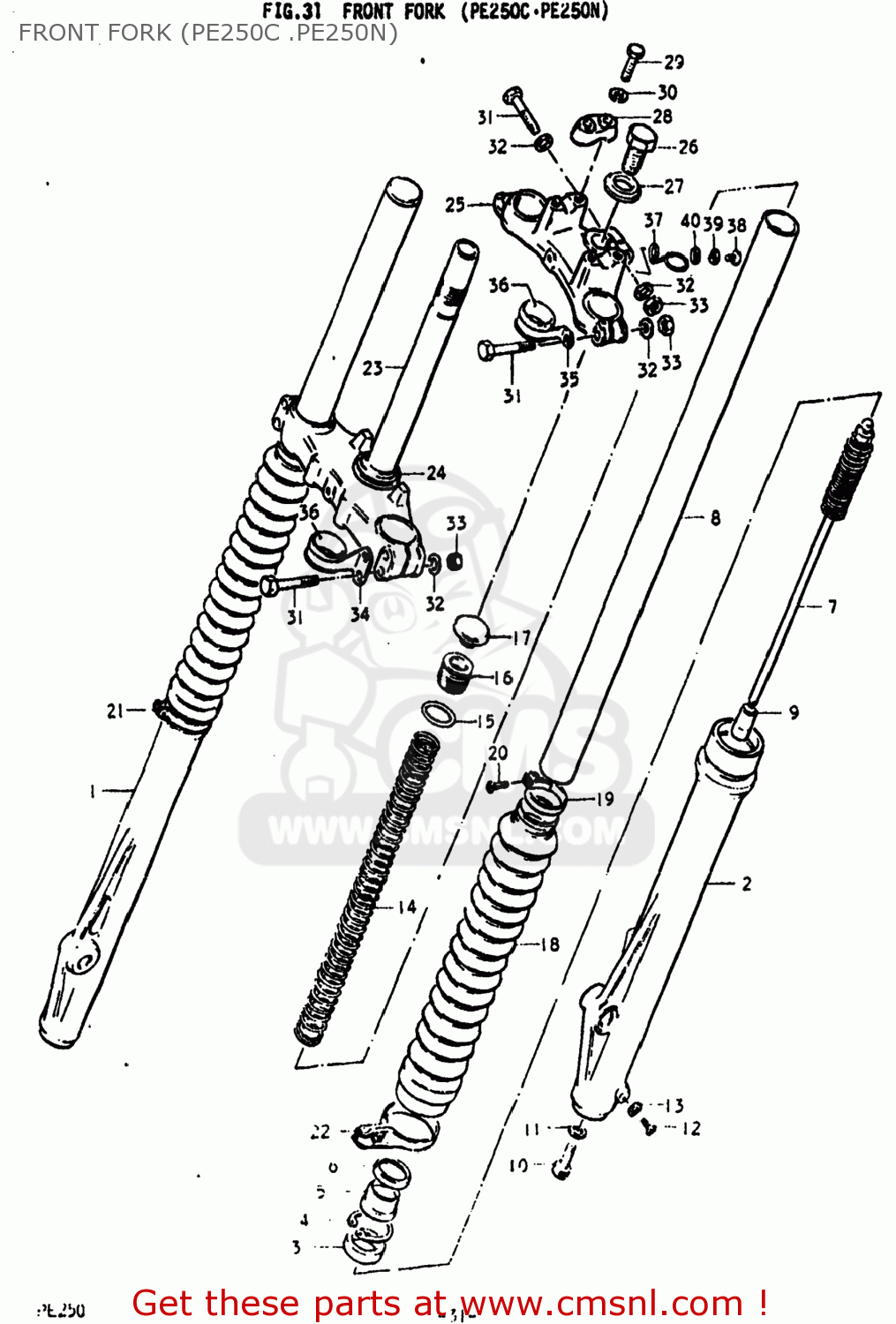

Front fork (pe250c .pe250n) diagram PE250 1979 (N) USA (E03)
FRONT FORK (PE250C .PE250N) PE250 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0-1
5110041420
ref: 0-1
51100-41422
DAMPER SET
€ 0.00
0-1
5110041422
ref: 0-1
DAMPER SET
€ 0.00
1-1
5113041500
ref: 1-1
51130-41501
TUBE,OUTER,RIGHT
€ 62.50
1-2
5113041501
ref: 1-2
TUBE,OUTER,RIGHT
€ 62.50
2-1
5114041500
ref: 2-1
51140-41501
TUBE,OUTER,LEFT
€ 74.50
2-2
5114041501
ref: 2-2
TUBE,OUTER,LEFT
€ 74.50
3-1
5115341110
ref: 3-1
51153-16730
OIL SEAL,FRONT FORK
€ 28.50
3-2
5115341211
ref: 3-2
51153-16730
OIL SEAL,FRONT FORK
€ 28.50
4
5115641211
ref: 4
CIRCLIP,FORK OIL SEAL
€ 3.00
5-1
5117341211
ref: 5-1
DUST SEAL,FRONT FORK
€ 4.50
5-2
5117341500
ref: 5-2
DUST SEAL,FRONT FORK
€ 5.50
6
5114941211
ref: 6
51149-40500
GUIDE.FORK DUST
€ 7.50
7
5114641500
ref: 7
CYLINDER,FRONT FORK
€ 32.50
8-1
5111041500
ref: 8-1
51110-41501
TUBE,FORK,INNER
€ 174.50
8-2
5111041501
ref: 8-2
TUBE,FORK,INNER
€ 174.50
9
5119541210
ref: 9
51195-49071
PIECE,OIL LOCK
€ 12.00
10
5114716510
ref: 10
BOLT,FORK CYLINDER(10X25)
€ 3.50
11
5114841310
ref: 11
GASKET (NAS)
€ 2.50
12
0211104087
ref: 12
02112-04087
SCREW
€ 1.50
13
5118303010
ref: 13
GASKET,DRAIN,PLUG (NAS)
€ 3.00
14
5117141420
ref: 14
SPRING
€ 52.50
15
5111716310
ref: 15
O RING
€ 4.50
16
5135130520
ref: 16
CAP,FORK INNER TUBE
€ 9.00
17
5118932400
ref: 17
51189-30520
CAP,FRONT FORK
€ 11.50
18
5157141211
ref: 18
51571-38265-38K
BOOT
€ 38.00
19
5157541410
ref: 19
BAND,BOOT
€ 8.00
20
0211204168
ref: 20
02112-0416A
SCREW
€ 1.00
21
5157341410
ref: 21
BAND,FRONT FORK COVER
€ 10.00
22
5157241420
ref: 22
BAND,FRONT FORK COVER
€ 12.00
23
5141041500
ref: 23
STEM,STEERING
€ 90.00
24
5162133001
ref: 24
RACE,STEERING OUTER LWR
€ 10.00
25
5131141500
ref: 25
HEAD,STEERING STEM
€ 49.00
26
5135141310
ref: 26
BOLT,STEERING STEM HEAD
€ 10.50
27
5135641310
ref: 27
WASHER
€ 6.00
28
5621127100
ref: 28
HOLDER,HANDLEBAR
€ 12.50
29
0110708358
ref: 29
01500-0835B
BOLT
€ 3.50
30
0832121088
ref: 30
08321-01087
LOCK WASHER
€ 2.00
31
0110708558
ref: 31
01500-08557
BOLT 8X55
€ 3.00
32
0832221088
ref: 32
08322-01087
WASHER
€ 2.00
33
0831012088
ref: 33
08310-00087
NUT
€ 2.00
34
5862141220
ref: 34
GUIDE,CABLE
€ 5.50
35
5862141500
ref: 35
GUIDE,CABLE
€ 3.50
36
5862741220
ref: 36
SLEEVE
€ 3.00
37
5145248120
ref: 37
51452-46100
CLIP,CABLE
€ 3.00
38
0211206128
ref: 38
02112-06127
SCREW 6X12
€ 2.00
39
0832121068
ref: 39
08321-01067
LOCK WASHER
€ 2.50
40
0832221068
ref: 40
08322-01067
WASHER
€ 2.00
