CYLINDER
PE250 1979 (N) USA (E03)

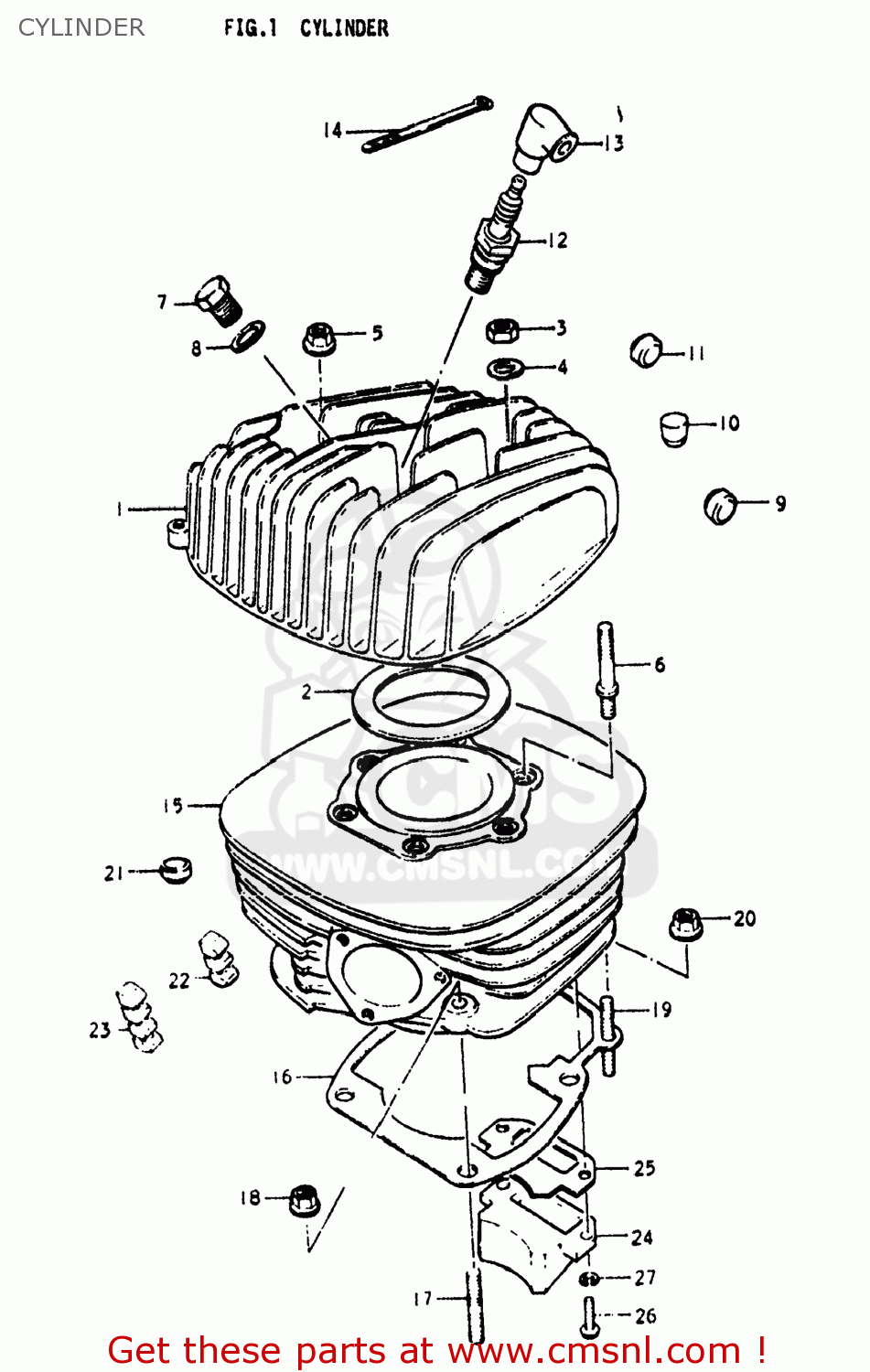

Cylinder diagram PE250 1979 (N) USA (E03)
CYLINDER PE250 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1111141400
ref: 1-1
HEAD,CYLINDER
€ 79.00
1-2
1111141402
ref: 1-2
HEAD,CYLINDER
€ 71.00
2-1
1114141610
ref: 2-1
GASKET,CYLINDER HEAD (NAS)
€ 9.50
2-2
1114141650
ref: 2-2
GASKET,CYLINDER HEAD (NAS)
€ 4.50
3
0914008005
ref: 3
09140-08017
NUT (8MM)
€ 1.50
4
0832221088
ref: 4
08322-01087
WASHER
€ 2.00
5
0831616088
ref: 5
08316-10087
NUT
€ 2.50
6
0910808018
ref: 6
BOLT,STUD
€ 4.00
7
0924714007
ref: 7
09247-14025
PLUG
€ 3.50
8
0916814004
ref: 8
GASKET(14X19.2X2) (NAS)
€ 2.50
9
1125228000
ref: 9
11252-13630
PAD,CYLINDER
€ 2.00
9
1125228000
ref: 9
11252-13630
PAD,CYLINDER
€ 2.00
10
1115116400
ref: 10
PAD,CYLINDER HEAD
€ 8.00
10
1115116400
ref: 10
PAD,CYLINDER HEAD
€ 8.00
11
1125238001
ref: 11
PAD,CYLINDER HEAD
€ 3.50
11
1125238001
ref: 11
PAD,CYLINDER HEAD
€ 3.50
12-1
0948200096
ref: 12-1
09482-00208
SPARK PLUG
€ 16.00
12-2
0948200179
ref: 12-2
09482-00210
SPARK PLUG
€ 16.50
12-3
0948200158
ref: 12-3
09482-00270-111
SPARK PLUG
€ 10.00
12-4
0948200180
ref: 12-4
SPARK PLUG
€ 4.50
13
3351041111
ref: 13
33510-20A02
CAP,SPARK PLUG
€ 23.00
14
0940709402
ref: 14
CLAMP
€ 3.00
15-1
1121041400
ref: 15-1
11210-41403
CYLINDER
€ 520.50
15-2
1121041401
ref: 15-2
11210-41403
CYLINDER
€ 520.50
15-3
1121041403
ref: 15-3
CYLINDER
€ 520.50
16
1124141100
ref: 16
11241-41100-H17
GASKET,CYLINDER (MCA)
€ 12.50
17
0142110258
ref: 17
01421-1025B
STUD 10X25
€ 3.00
18-1
0915910022
ref: 18-1
08316-10107
NUT
€ 2.00
18-2
0831616108
ref: 18-2
08316-10107
NUT
€ 2.00
19
0142108258
ref: 19
01421-0825A
STUD 8X25
€ 2.50
20-1
0915908019
ref: 20-1
08316-10087
NUT
€ 2.50
20-2
0831616088
ref: 20-2
08316-10087
NUT
€ 2.50
21
1125238001
ref: 21
PAD,CYLINDER HEAD
€ 3.50
22
1125130510
ref: 22
11251-30530
PAD,CYLINDER
€ 6.00
23
1125130500
ref: 23
11251-30530
PAD,CYLINDER
€ 6.00
24-1
1315041111
ref: 24-1
13150-41113
VALVE ASSEMBLY,REED
€ 118.50
24-2
1315041113
ref: 24-2
VALVE ASSY,REED
€ 118.50
25
1315641100
ref: 25
13156-41100-H17
GASKET,REED VALVE (MCA)
€ 4.50
26
0211206208
ref: 26
02112-06207
SCREW
€ 2.00
27
0832121068
ref: 27
08321-01067
LOCK WASHER
€ 2.50
