CYLINDER HEAD
RF600R 1994 (R) USA (E03)

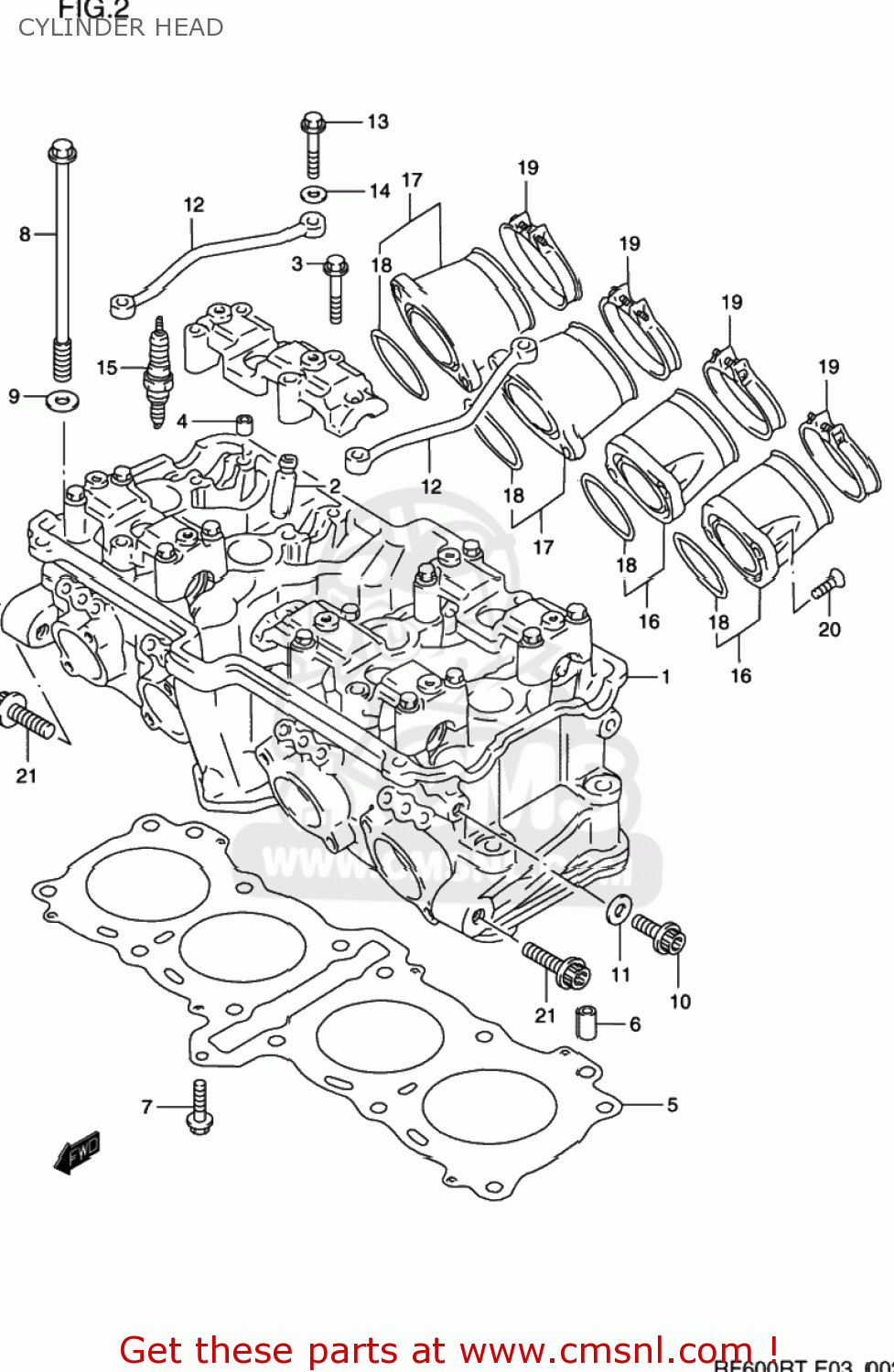

Cylinder head diagram RF600R 1994 (R) USA (E03)
CYLINDER HEAD RF600R 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110021E00
ref: 1-1
HEAD ASSEMBLY,CYLINDER
€ 1,312.00
1-2
1110021E10
ref: 1-2
HEAD ASSEMBLY,CYLINDER
€ 1,593.00
2
1111517E70
ref: 2
GUIDE,VALVE
€ 23.00
3
0910306165
ref: 3
BOLT(6X45)
€ 2.50
4
0920608001
ref: 4
PIN(6.2X8X11)
€ 2.00
5
1114118E01
ref: 5
GASKET,CYLINDER HEAD
€ 71.00
6
0421111189
ref: 6
PIN
€ 2.00
7
0155006303
ref: 7
01550-0630A
BOLT
€ 2.50
8
0910310272
ref: 8
BOLT(10X160)
€ 14.00
9
0916010082
ref: 9
WASHER(10.5X19X2)
€ 2.00
10
0712008163
ref: 10
07120-0816A
BOLT
€ 3.00
11
0916808015
ref: 11
GASKET(8.2X14X1).6 (NAS)
€ 2.50
12
1113117E00
ref: 12
PIPE,CYLINDER HEAD OIL
€ 41.00
13
0910306026
ref: 13
BOLT(6X39)
€ 2.00
14
0832201063
ref: 14
08322-0106B
WASHER
€ 2.00
15-1
0948200458
ref: 15-1
PLUG,SPARK(NGK CR9E)
€ 8.50
15-2
0948200459
ref: 15-2
PLUG,SPARK(U27ESR-N)
€ 8.50
15-3
0948200456
ref: 15-3
PLUG,SPARK(CR8E)
€ 7.00
15-4
0948200460
ref: 15-4
PLUG,SPARK(CR10E)
€ 8.50
15-5
0948200457
ref: 15-5
PLUG,SPARK(U24ESR-N)
€ 7.00
15-6
0948200461
ref: 15-6
PLUG,SPARK(U31ESR-N)
€ 8.50
16
1310121E00
ref: 16
PIPE ASSY,INTAKE NO.1
€ 43.00
17
1310221E00
ref: 17
PIPE ASSY,INTAKE NO.2
€ 48.50
18
0928042003
ref: 18
O RING(D:2.4,ID:41.7)
€ 8.50
19
0940252208
ref: 19
CLAMP
€ 5.50
20
0912006010
ref: 20
09120-06010-XC0
SCREW
€ 3.00
21
0712010303
ref: 21
07120-1030B
BOLT
€ 4.00
