REAR SWINGING ARM (MODEL T)

RF600R 1994 (R) USA (E03)

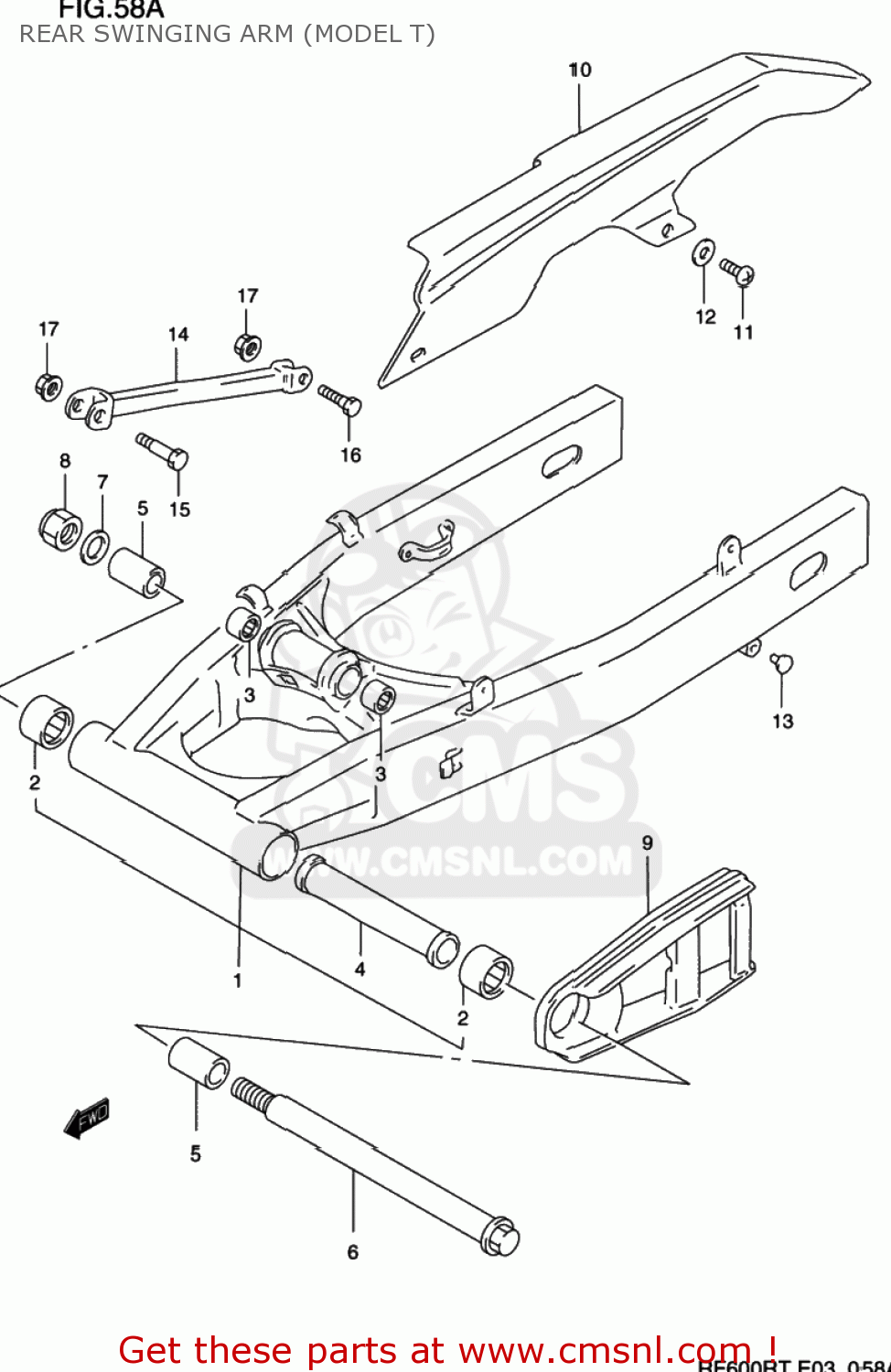

Rear swinging arm (model t) diagram RF600R 1994 (R) USA (E03)

REAR SWINGING ARM (MODEL T) RF600R 1994 (R) USA (E03)
REAR SWINGING ARM (MODEL T) RF600R 1994 (R) USA (E03)
REAR SWINGING ARM (MODEL T) RF600R 1994 (R) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
6100026E000FP
ref: 1
61000-26E02-0FP
SWING ARM ASSEMBLY,REAR
€ 791.50
1
6100026E000FP
ref: 1
61000-26E02-0FP
SWING ARM ASSEMBLY,REAR
€ 791.50
2
0926325059
ref: 2
BEARING(25X33X35)
0926325059
€ 35.00
3
0926317037
ref: 3
BEARING(17X24X25)
0926317037
€ 19.00
4
6128221E00
ref: 4
09180-20108
SPACER,REAR SWING ARM PIVOT
6128221E00
€ 21.50
5
6125121E00
ref: 5
SPACER,RR SWGARM PIVOT
6125121E00
€ 8.50
6
6121121E00
ref: 6
SHAFT,REAR SWING ARM
€ 50.50
7
0916018026
ref: 7
09160-18030
WASHER (18.2X28X2.6)
€ 2.50
8
0915918007
ref: 8
NUT
0915918007
€ 14.00
9
6127321E01
ref: 9
BUFFER,CHAIN TOUCH DEFENSE
6127321E01
€ 30.50
10
6131045D11
ref: 10
61310-45D12
CASE,CHAIN
€ 104.00
11
0214206123
ref: 11
02142-0612A
SCREW 6X12
0214206123
€ 2.00
12
0916906026
ref: 12
WASHER
0916906026
€ 2.00
13
0925008016
ref: 13
CAP(OD:12)
0925008016
€ 2.50
14
6431010D00019
ref: 14
TORQUELINK,RR
6431010D00019
€ 26.50
15
0911110051
ref: 15
BOLT(10X39)
0911110051
€ 8.50
16
0910010187
ref: 16
BOLT(10X34)
0910010187
€ 4.50
17
0831931107
ref: 17
NUT
0831931107
€ 3.00
