TAIL LAMP
RF600R 1994 (R) USA (E03)

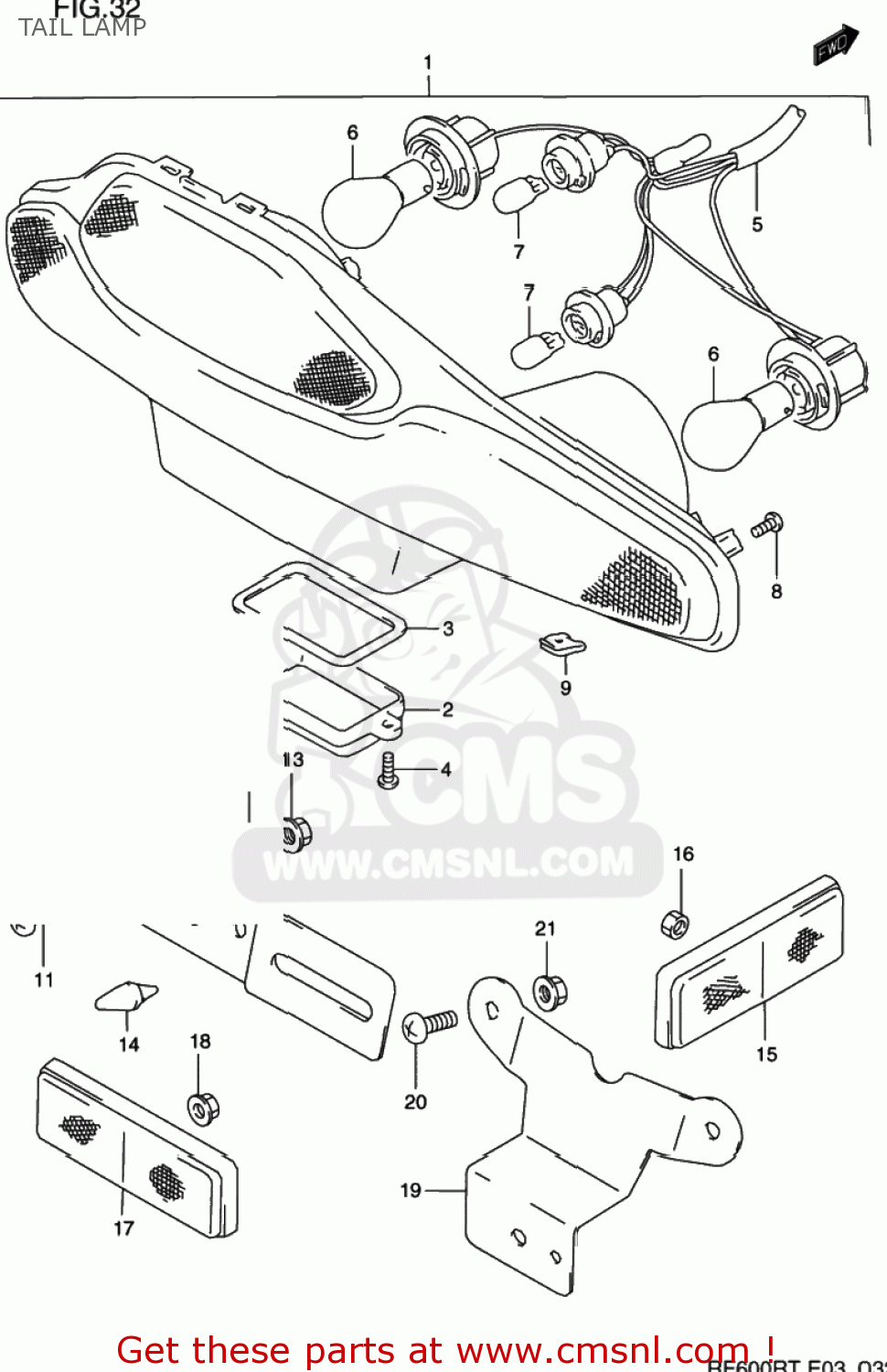

Tail lamp diagram RF600R 1994 (R) USA (E03)
TAIL LAMP RF600R 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3571021E00
ref: 1-1
35710-21E01
LAMP ASSEMBLY,REAR COMBINATION
€ 273.00
1-2
3571021E01
ref: 1-2
LAMP ASSY,RR COMBINATION
€ 273.00
2
3591221E00
ref: 2
LENS,LICENSE LAMP
€ 18.50
3
3591326D00
ref: 3
GASKET (NAS)
€ 3.50
4
0321104123
ref: 4
03211-0412A
SCREW
€ 1.50
5-1
3571821E00
ref: 5-1
SOCKET ASSEMBLY
€ 81.00
5-2
3571821E01
ref: 5-2
35718-21E00
SOCKET & CORD
€ 81.00
6
0947112045
ref: 6
BULB(12V21W)
€ 5.00
7
0947112081
ref: 7
BULB(12V5W)
€ 1.50
8-1
0354114123
ref: 8-1
03541-1412A
SCREW
€ 2.00
8-2
0351114123
ref: 8-2
TPG SCREW
€ 2.50
9
0914805021
ref: 9
NUT
€ 1.50
10
3592748B30
ref: 10
BRACKET,LICENSE PLATE
€ 15.00
11
0214206123
ref: 11
02142-0612A
SCREW 6X12
€ 2.00
12-1
0916006059
ref: 12-1
09160-06088
WASHER,COVER,FRONT
€ 2.00
12-2
0916006088
ref: 12-2
WASHER(6.5X20X1.6)
€ 2.00
13-1
0831620063
ref: 13-1
08316-2006A
NUT
€ 2.00
13-2
0831000063
ref: 13-2
08310-0006A
NUT 6MM
€ 2.00
13-3
0831610063
ref: 13-3
08316-1006B
NUT
€ 2.50
14
0932106029
ref: 14
09321-06030
CUSHION
€ 3.00
15
3597024D60
ref: 15
REFLECTOR ASSY,RR
€ 19.50
16
0831000053
ref: 16
08310-0005A
NUT
€ 2.50
17
3597024D60
ref: 17
REFLECTOR ASSY,RR
€ 19.50
18
0831000053
ref: 18
08310-0005A
NUT
€ 2.50
19
3597421E00
ref: 19
BRACKET,RR REFLECTOR
€ 12.50
20
0214206123
ref: 20
02142-0612A
SCREW 6X12
€ 2.00
21-1
0831620063
ref: 21-1
08316-2006A
NUT
€ 2.00
21-2
0831610063
ref: 21-2
08316-1006B
NUT
€ 2.50
