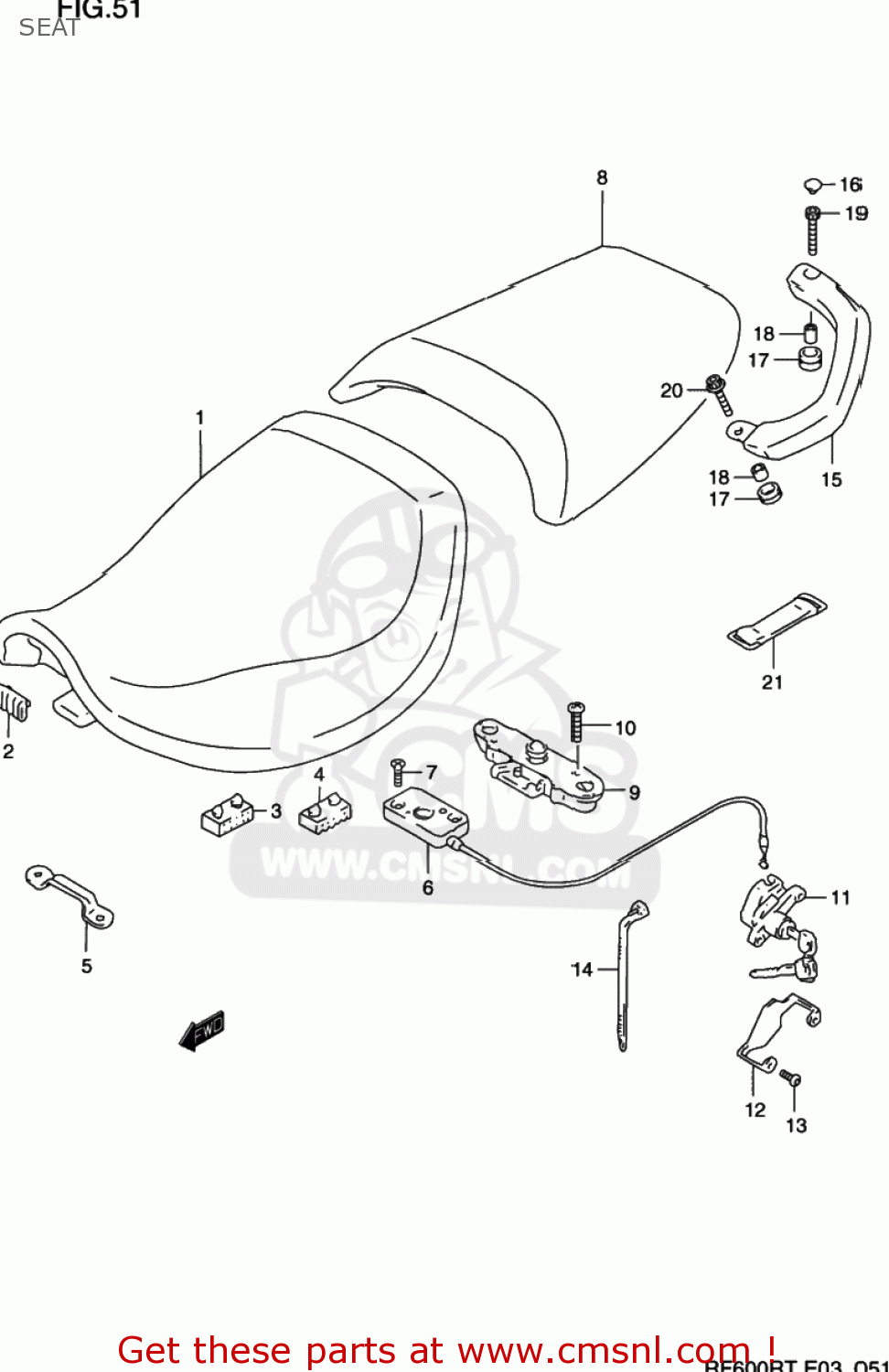

SEAT

ref

part #

description

quantity

1

4510021E006VP
ref: 1

SEAT ASSY

€ 301.50

2

4514921E00
ref: 2

CUSHION,BATTERY

€ 7.00

3

4514912C00
ref: 3

CUSHION,SEAT(40X20X6)

€ 3.00

4

4514931300
ref: 4

CUSHION,SEAT(40X20X15)

€ 2.00

5

4511917E00
ref: 5

PLATE,SEAT FR HOOK

€ 9.00

6

4522021E10
ref: 6

BRACKET COMP,SEAT SUPPORT

€ 34.00

7

0212206253
ref: 7
02122-0625A

SCREW

€ 2.00

8-1

4530021E006UR
ref: 8-1
45300-21E01-6UR

SEAT ASSEMBLY,PILLION

€ 246.00

8-2

4530021E006YZ
ref: 8-2
45300-21E01-6YZ

SEAT ASSEMBLY,PILLION

€ 246.00

8-3

4530021E016VP
ref: 8-3

SEAT ASSY,PILLION

€ 246.00

9

4522021E00
ref: 9

BRACKET COMP,SEAT SUPPORT

€ 48.50

10-1

0211206303
ref: 10-1
02112-0630A

SCREW 6X30

€ 2.50

10-2

0211206303
ref: 10-2
02112-0630A

SCREW 6X30

€ 2.50

11

9570010833
ref: 11
95700-10835

LOCK SET,SEAT & HELMET

€ 99.50

12

4528945D01
ref: 12

PLATE,SEAT LOCK GUARD

€ 10.50

13

0913906075
ref: 13

SCREW(6X12)

€ 3.00

14-1

0940714403
ref: 14-1

CLAMP(L:125)

€ 2.50

14-2

0940714403
ref: 14-2

CLAMP(L:125)

€ 2.50

15-1

4621021E00291
ref: 15-1

HANDLE,PILLION RIDER,R(BLACK)

€ 84.50

15-2

4622021E00291
ref: 15-2

HANDLE,PILLION RIDER,L(BLACK)

€ 84.50

16

0925006004
ref: 16

CAP(OD:14.5)

€ 1.50

17

0932011008
ref: 17

CUSHION

€ 3.00

18

0918008033
ref: 18

SPACER(8.4X12X12)

€ 2.50

19

0713008353
ref: 19
07130-0835B

BOLT

€ 4.00

20

0712008303
ref: 20
07120-0830A

BOLT

€ 3.50

21

0946200008
ref: 21

BAND

€ 4.50
