TURNSIGNAL LAMP
RF600R 1994 (R) USA (E03)

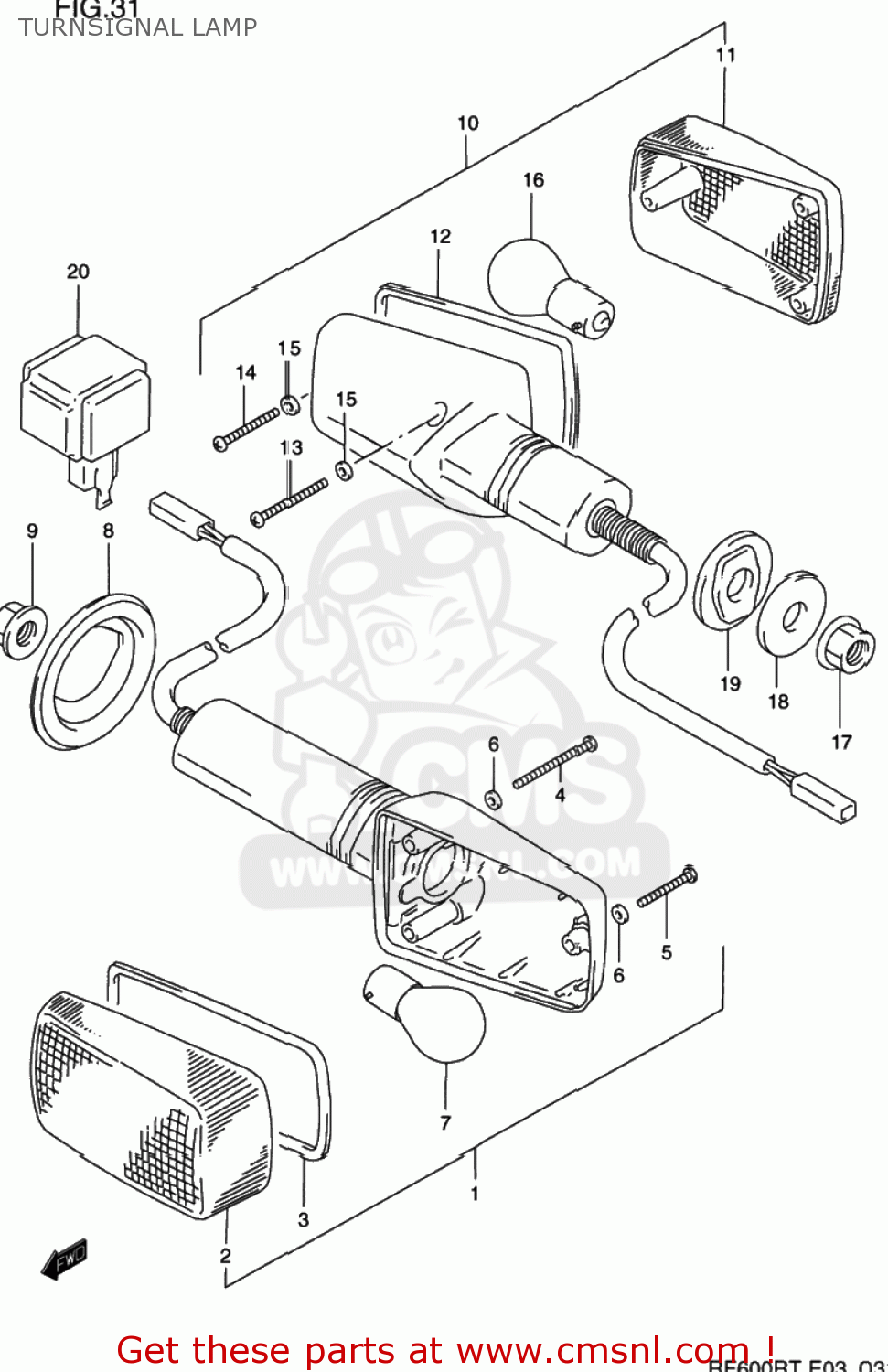

Turnsignal lamp diagram RF600R 1994 (R) USA (E03)
TURNSIGNAL LAMP RF600R 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3560129E10
ref: 1-1
35601-29E30
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 57.50
1-2
3560129E30
ref: 1-2
LAMP ASSY,FR TURN SIGNAL
€ 57.50
2
3561217C20
ref: 2
LENS
€ 6.50
3
3561327A00
ref: 3
GASKET (NAS)
€ 3.00
4
3562327A00
ref: 4
SCREW(3X30)
€ 1.50
5
3572540511
ref: 5
SCREW
€ 1.50
6
3562727A02
ref: 6
GASKET (NAS)
€ 1.50
7
0947112045
ref: 7
BULB(12V21W)
€ 5.00
8
3567427A01
ref: 8
GROMMET
€ 13.50
9
0831610103
ref: 9
08316-1010B
NUT
€ 2.00
10
3560321E30
ref: 10
LAMP ASSY,RR TURNSIGNAL
€ 135.50
11
3565217C20
ref: 11
LENS
€ 6.50
12
3561327A00
ref: 12
GASKET (NAS)
€ 3.00
13
3562327A00
ref: 13
SCREW(3X30)
€ 1.50
14
3572540511
ref: 14
SCREW
€ 1.50
15
3562727A02
ref: 15
GASKET (NAS)
€ 1.50
16
0947112045
ref: 16
BULB(12V21W)
€ 5.00
17-1
0831610103
ref: 17-1
08316-1010B
NUT
€ 2.00
17-2
0831000103
ref: 17-2
08310-0010A
NUT
€ 2.00
18-1
0916010094
ref: 18-1
WASHER(10.5X30X3.2)
€ 3.50
18-2
0916010501
ref: 18-2
WASHER(10.5X30X2.3)
€ 2.50
19
3569517C00
ref: 19
SPACER,RR TURNSIGNAL
€ 3.00
20
3861045D01
ref: 20
RELAY ASSY,TURNSIGNAL LAMP
€ 68.50
