STEERING STEM

RF600R 1994 (R) USA (E03)

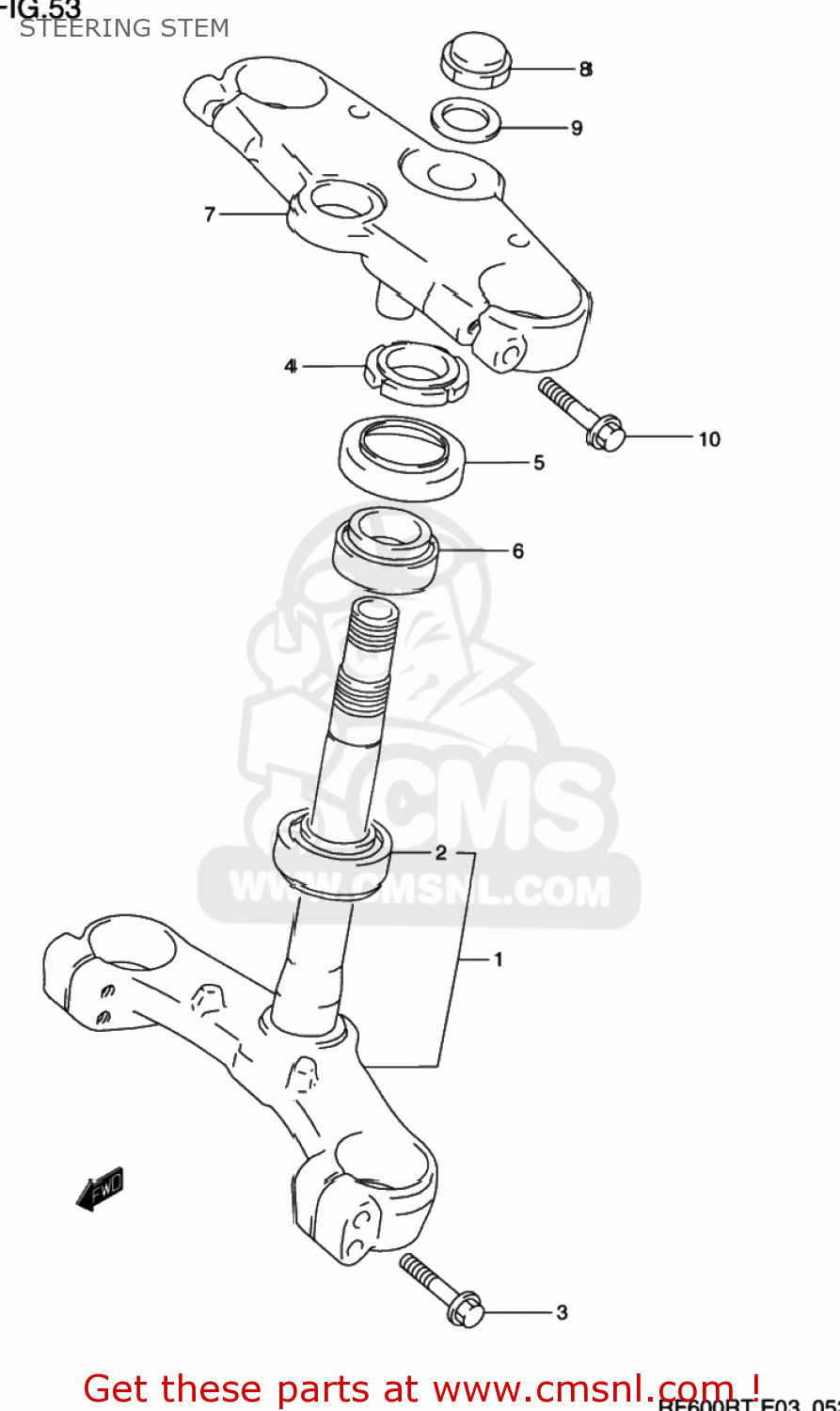

Steering stem diagram RF600R 1994 (R) USA (E03)

STEERING STEM RF600R 1994 (R) USA (E03)

STEERING STEM RF600R 1994 (R) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5141021E00
ref: 1
51410-21E02

STEM,STEERING

€ 663.50

2

0926530009
ref: 2

BEARING(30X55X17)

€ 49.50

3

0155008407
ref: 3

BOLT

€ 3.50

4

5163128000
ref: 4

NUT,STEERING STEM(25X44X10)

€ 12.50

5

5164349002
ref: 5

SEAL,STEERING UPR DUST

€ 7.50

6

0926525008
ref: 6
09265-25019

TAPER,ROLLER BEARING

€ 48.50

7

5131121E00
ref: 7

HEAD,STEERING STEM

€ 307.50

8

5135324B00
ref: 8

NUT,CAP

€ 21.50

9

5135624B01
ref: 9

WASHER(22.5X32X1.6)

€ 3.00

10

0155008403
ref: 10
01550-0840A

BOLT

€ 3.50
