HANDLE BAR
RF600R 1994 (R) USA (E03)

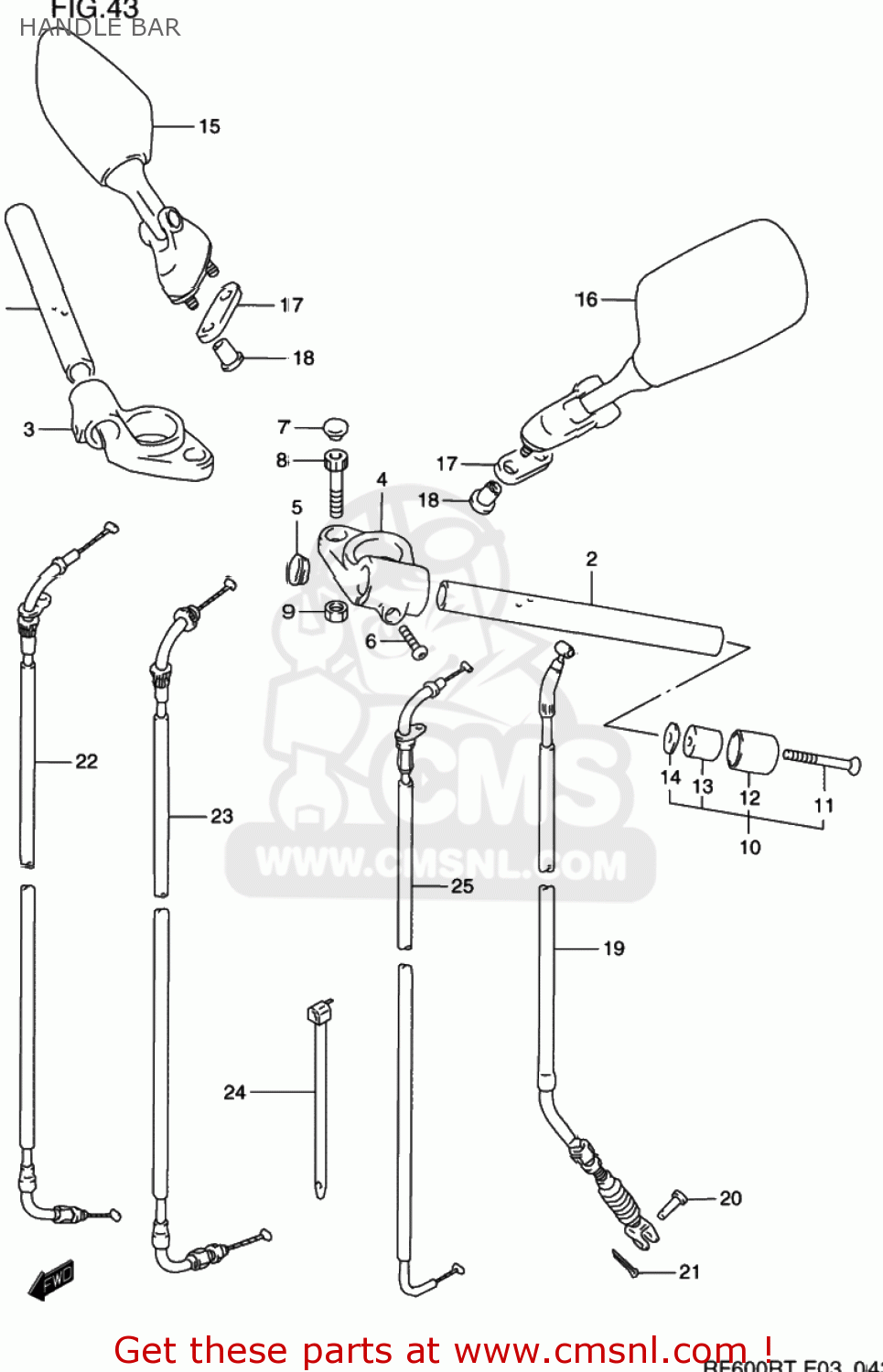

Handle bar diagram RF600R 1994 (R) USA (E03)
HANDLE BAR RF600R 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5611031E10
ref: 1-1
56110-31E11
HANDLEBAR
€ 38.00
1-2
5611031E11
ref: 1-2
HANDLEBAR,R
€ 38.00
2-1
5615031E10
ref: 2-1
56150-31E11
HANDLEBAR,LEFT
€ 37.50
2-2
5615031E11
ref: 2-2
HANDLEBAR,L
€ 37.50
3
5621121E10
ref: 3
HOLDER,HANDLEBAR,R
€ 122.00
4
5622121E10
ref: 4
HOLDER,HANDLEBAR,L
€ 119.00
5
0925018003
ref: 5
PLUG(OD:22)
€ 2.00
6
0910608129
ref: 6
BOLT(8X25)
€ 5.00
7
0925008014
ref: 7
CAP(OD:12)
€ 3.50
8
0910610061
ref: 8
BOLT 10X50
€ 3.00
9
0831931107
ref: 9
NUT
€ 3.00
10
5620002821
ref: 10
56200-02822
BALANCER SET,HANDLEBAR
€ 87.00
11
0212206453
ref: 11
02122-0645B
SCREW
€ 2.00
12
5627404700
ref: 12
CAP,BALANCER
€ 96.00
13
5627149410
ref: 13
BALANCER,HANDLEBAR
€ 14.50
14
5627534401
ref: 14
SPACER,BALANCER
€ 2.50
15
5650024D11
ref: 15
MIRROR ASSY,RR VIEW,R
€ 96.00
16
5660024D11
ref: 16
MIRROR ASSY,RR VIEW,L
€ 96.00
17
9457622D00
ref: 17
CUSHION,RR VIEW MIRRORR
€ 6.00
18
5661912C00
ref: 18
NUT,RR VIEW MIRROR
€ 8.00
19-1
5820021E00
ref: 19-1
58200-21E01
CABLE ASSEMBLY,CLUTCH
€ 36.50
19-2
5820021E01
ref: 19-2
CABLE ASSY,CLUTCH
€ 36.50
20
0920006011
ref: 20
PIN(L:15)
€ 2.50
21
0411120158
ref: 21
04111-2015A
PIN
€ 1.50
22-1
5830021E00
ref: 22-1
58300-21E01
CABLE ASSEMBLY,THROTTLE NO
€ 40.50
22-2
5830031E01
ref: 22-2
CABLE ASSY,THROTTLE NO.1
€ 50.00
23-1
5830021E10
ref: 23-1
58300-21E11
CABLE ASSEMBLY,THROTTLE NO
€ 40.50
23-2
5830031E11
ref: 23-2
CABLE ASSY,THROTTLE NO.2
€ 41.00
24
0940722404
ref: 24
CLAMP
€ 2.50
25
5841021E00
ref: 25
58410-21E01
CABLE COMP,STARTER
€ 23.00
