FRONT FENDER

RF600R 1994 (R) USA (E03)

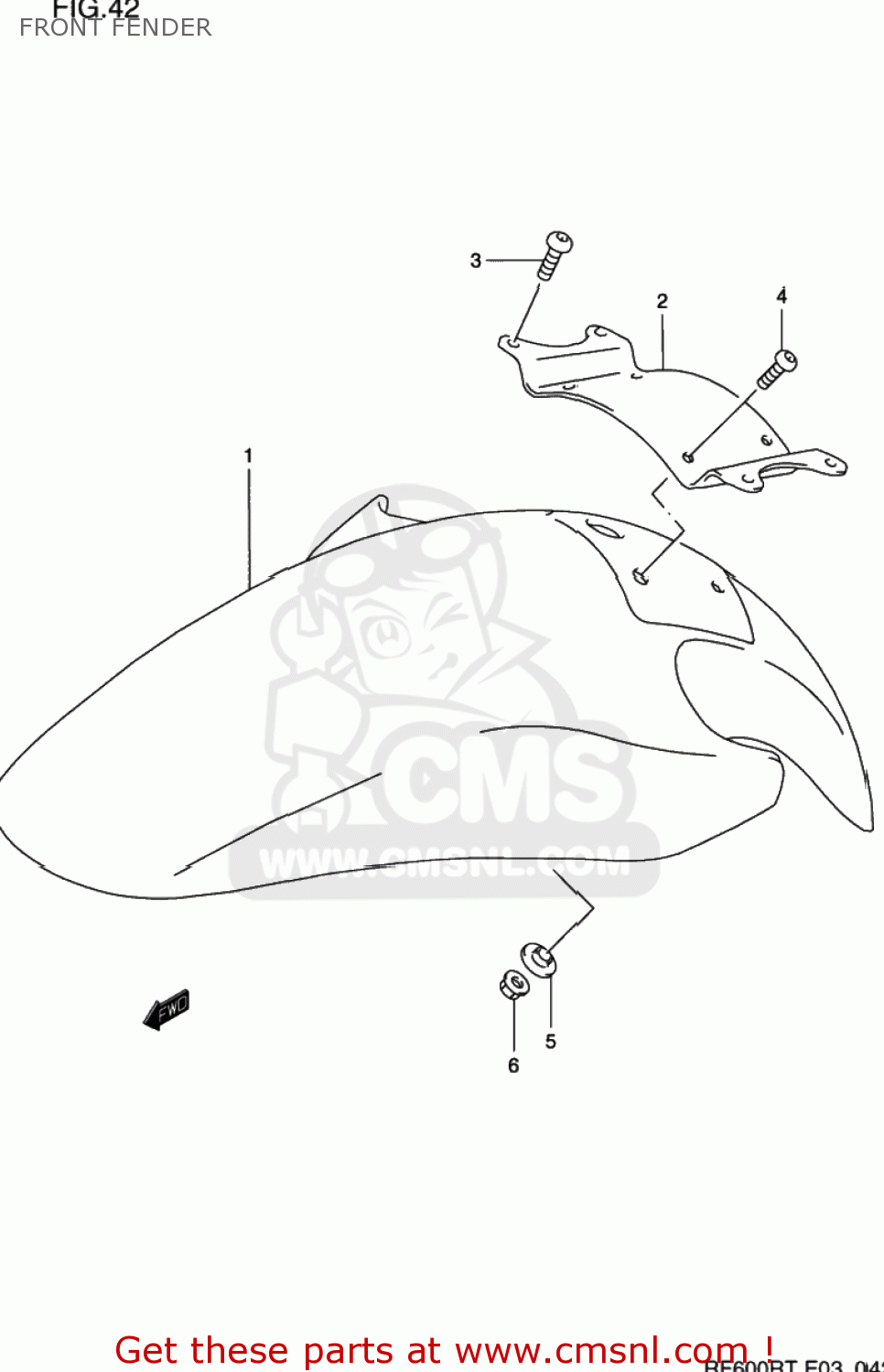

Front fender diagram RF600R 1994 (R) USA (E03)

FRONT FENDER RF600R 1994 (R) USA (E03)

FRONT FENDER RF600R 1994 (R) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5310921E011TY
ref: 1-1
53109-21E11-1TY

FENDER,FRONT

€ 159.50

1-2

5310921E1134R
ref: 1-2

FENDER SET,FR

€ 159.50

1-3

5310921E111ZV
ref: 1-3

FENDER SET,FR

€ 180.50

1-4

5310921E1128V
ref: 1-4

FENDER SET,FR

€ 149.50

2

5311421E00
ref: 2

BRACE,FR FENDER

€ 50.00

3

0913906027
ref: 3

SCREW(6X12)

€ 3.00

4

0913905042
ref: 4

SCREW(5X16)

€ 2.50

5

0916905010
ref: 5

WASHER

€ 3.00

6

0915905026
ref: 6
09159-05043

NUT

€ 2.50
