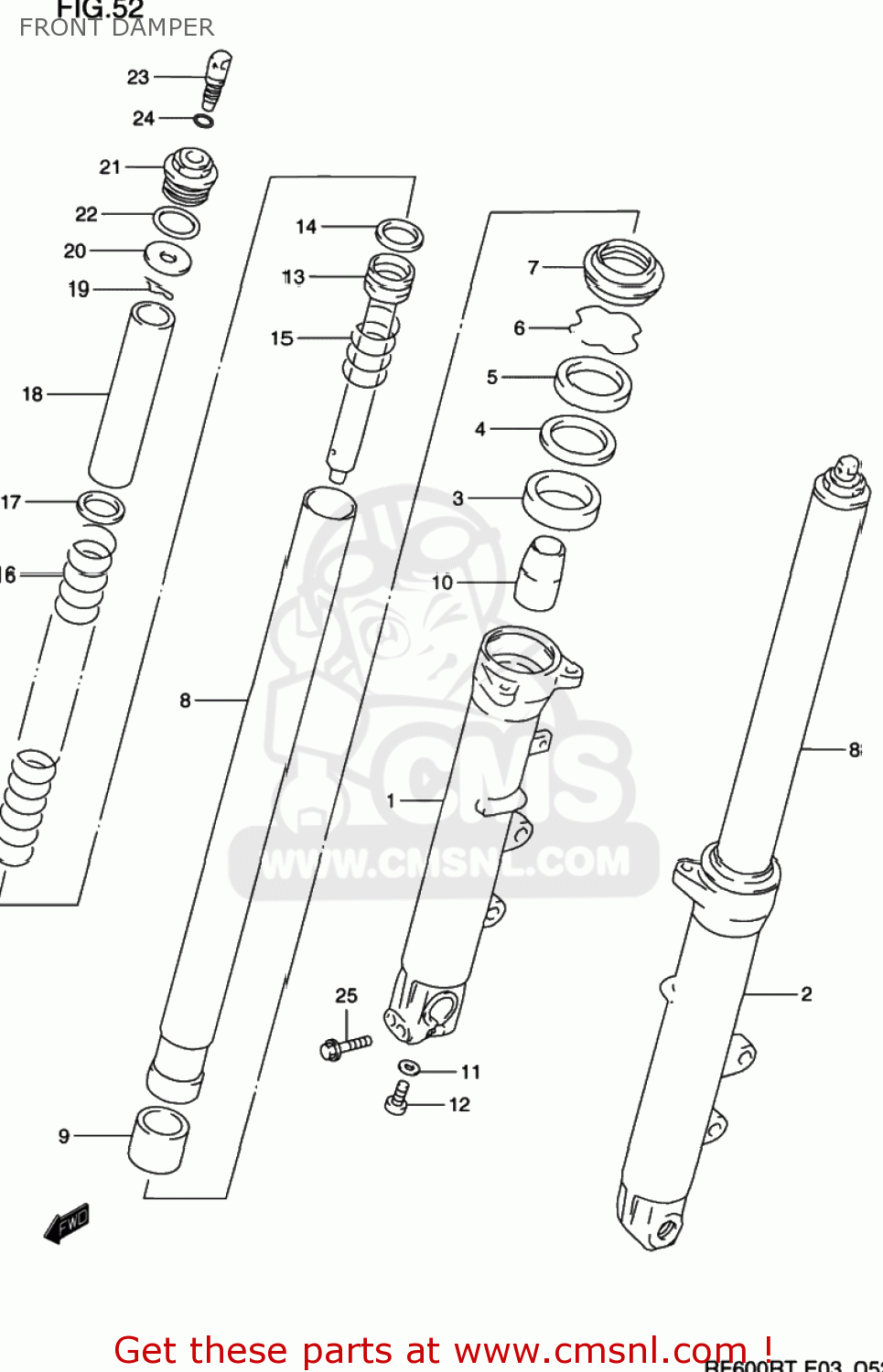

FRONT DAMPER

ref

part #

description

quantity

5110321E00
ref:

DAMPER ASSEMBLY,RIGHT

€ 559.00

5110421E00
ref:

DAMPER ASSEMBLY,LEFT

€ 559.00

1

5113021E00
ref: 1

TUBE,OUTER,RIGHT

€ 372.50

2

5114021E00
ref: 2

TUBE,OUTER,L

€ 437.50

3

5115248B31
ref: 3

BUSH,GUIDE

€ 20.00

4

5116838B00
ref: 4

SPACER,SEAL

€ 5.00

5

5115308D00
ref: 5

SEAL,OIL

€ 15.50

6

5155638B00
ref: 6

CIRCLIP,FORK OIL SEAL

€ 4.50

7

5157147D50
ref: 7

SEAL,DUST

€ 18.00

8

5111021E00
ref: 8

TUBE,INNER

€ 365.50

9

5112148B31
ref: 9

BUSH,SLIDE

€ 15.50

10

5119548B31
ref: 10

PIECE,OIL LOCK

€ 19.00

11

5114836011
ref: 11

GASKET (NAS)

€ 4.00

12

5114748130
ref: 12

BOLT(8X27)

€ 3.50

13

5114621E00
ref: 13

CYLINDER

€ 50.00

14

5119612C00
ref: 14

RING,PISTON

€ 5.50

15

5117712C00
ref: 15

SPRING,REBOUND

€ 8.00

16

5117121E00
ref: 16

SPRING,MAIN

€ 60.50

17

5119219C00
ref: 17

JOINT,SPRING

€ 3.50

18

5117619C00
ref: 18

COLLAR,SPRING

€ 8.50

19

5118832B00
ref: 19

PIN,SEAT SPRING

€ 3.50

20

5118612C00
ref: 20

SEAT,SPRING

€ 3.50

21

5118912C00
ref: 21

BOLT,FORK

€ 38.50

22

5111712C00
ref: 22

O RING

€ 3.00

23

5118534C00
ref: 23

BOLT,SPRING ADJUSTER

€ 35.50

24

0928009005
ref: 24

O RING(D:1.9,ID:8.6)

€ 4.00

25

0155008457
ref: 25

BOLT

€ 4.00

all assemblies
