HANDLE LEVER
RF600R 1994 (R) USA (E03)

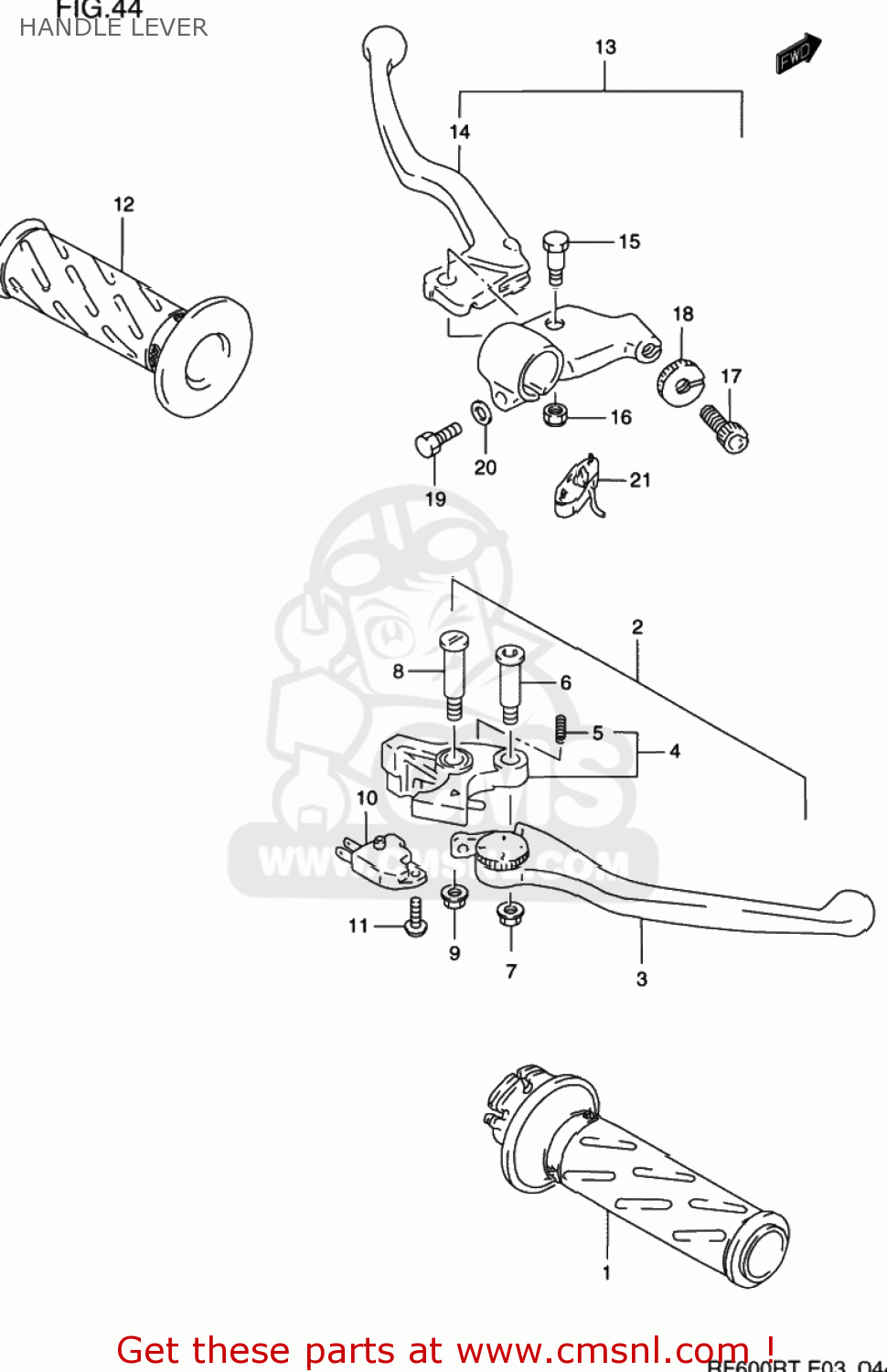

Handle lever diagram RF600R 1994 (R) USA (E03)
HANDLE LEVER RF600R 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5711022D01
ref: 1-1
57110-22D02
GRIP,THROTTLE
€ 22.50
1-2
5711022D02
ref: 1-2
GRIP,THROTTLE
€ 22.50
2
5730040C01
ref: 2
57300-40C10
LEVER ASSEMBLY,BRAKE
€ 75.00
3
5742032C00
ref: 3
LEVER,ADJUST
€ 39.50
4
5743040C00
ref: 4
57430-40C10
KNOCKER
€ 51.00
5
5743832C00
ref: 5
SPRING
€ 4.00
6
5743732C01
ref: 6
BOLT,LEVER
€ 6.50
7
0831931065
ref: 7
08319-3106A
NUT
€ 2.50
8
5743117C00
ref: 8
BOLT,LEVER PIVOT
€ 8.00
9
0831616064
ref: 9
08316-1006B
NUT 6MM
€ 2.50
10
5746017C00
ref: 10
57460-17C01
SWITCH ASSEMBLY,STOP
€ 32.50
11
5746517C00
ref: 11
SCREW
€ 1.50
12-1
5721122D00
ref: 12-1
57211-22D01-291
GRIP,LEFT
€ 11.50
12-2
5721122D01
ref: 12-2
57211-22D01-291
GRIP,LEFT
€ 11.50
13
5750019C01
ref: 13
LEVER ASSY,CLUTCH
€ 48.00
14
5762019C01
ref: 14
57620-27A31
LEVER,CLUTCH
€ 34.00
15
5743149110
ref: 15
BOLT,LEVER PIVOT
€ 5.00
16
0831921065
ref: 16
08319-2106B
NUT
€ 2.50
17
5744144400
ref: 17
ADJUSTER,CABLE
€ 5.50
18-1
5744244400
ref: 18-1
57442-11010
NUT,CABLE ADJUSTER LOCK
€ 4.00
18-2
5744211010
ref: 18-2
NUT,CABLE ADJUSTER
€ 4.00
19
0120406204
ref: 19
BOLT
€ 2.00
20
0832221064
ref: 20
08322-0106B
WASHER
€ 2.00
21
5756018D10
ref: 21
SWITCH ASSY,CLUTCH
€ 20.50
