BATTERY

RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

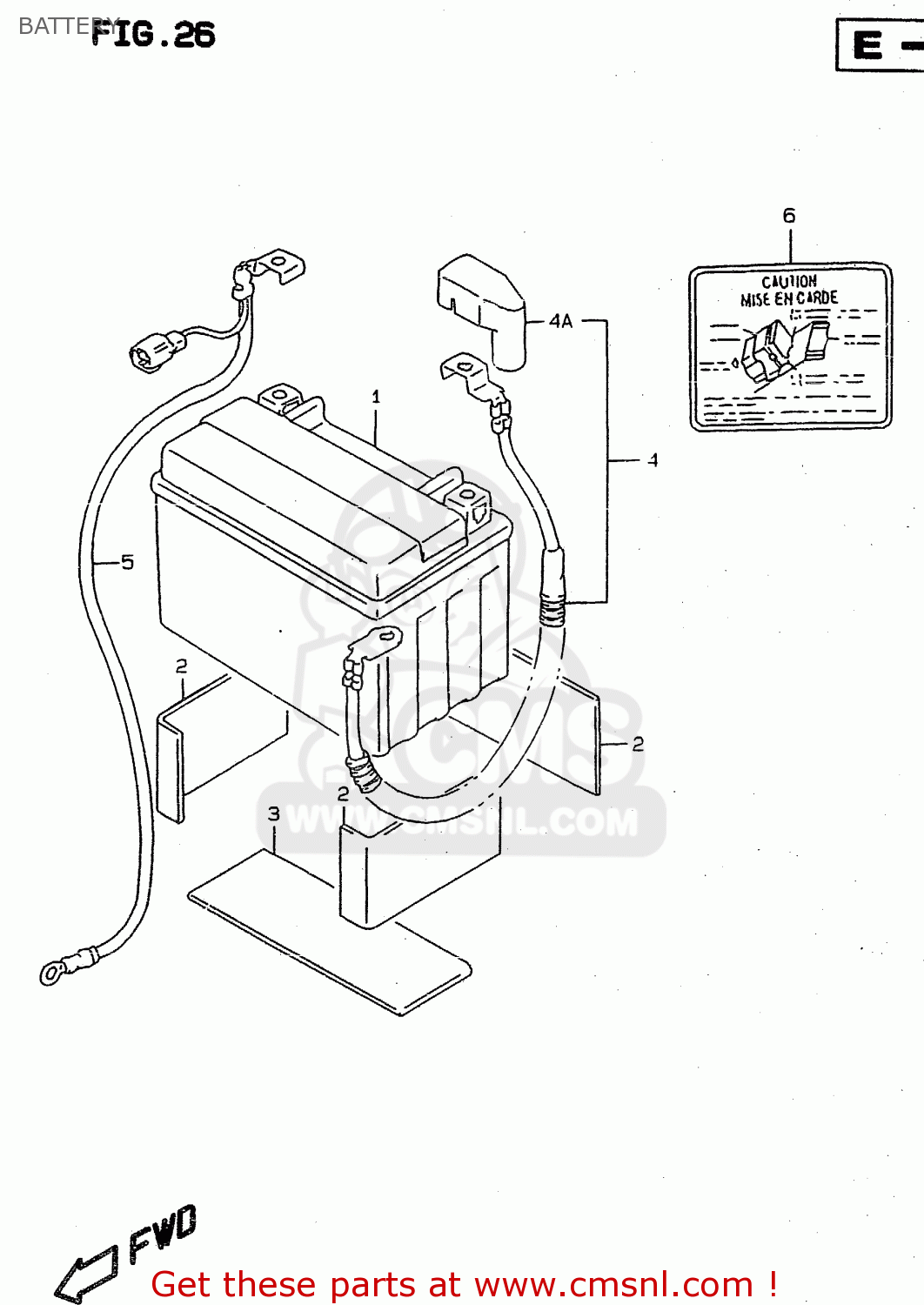

Battery diagram RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

prices are in EUR

ref

part #

description

quantity

3361032C10
ref: 1

BATTERY ASSY(YTX9-BS,12V8AH)

€ 108.50

3365137000
ref: 2
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3365247D01
ref: 3
(45X90), <-33652-47D

CUSHION,BATTERY

€ 7.00

3382021E00
ref: 4

WIRE,BATTERY PLUS LEAD

€ 27.00

3362433C10
ref: 4A

CAP,BATTERY PLUS

€ 6.50

3386046E00
ref: 5
<-33860-17E00

WIRE,BATTERY MINUS

€ 27.50

3369017E00
ref: 6

PLATE,BATTERY CAUTION

€ 3.00
