FRONT DAMPER (RF900RR/RS)

RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

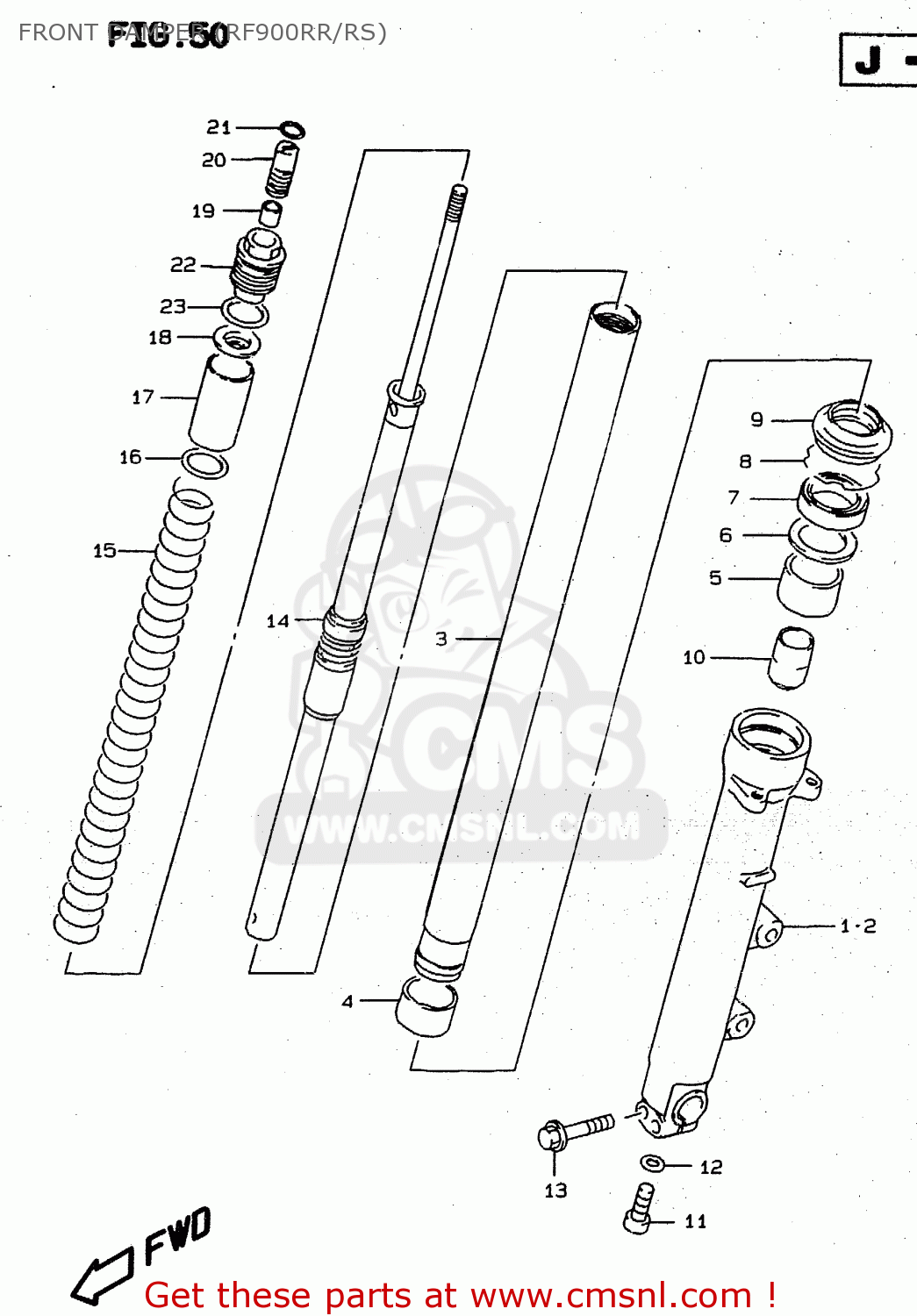

Front damper (rf900rr/rs) diagram RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

FRONT DAMPER (RF900RR/RS) RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

FRONT DAMPER (RF900RR/RS) RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

prices are in EUR

ref

part #

description

quantity

0

5110331E00
ref: 0

DAMPER ASSY,FR FORK,R

€ 681.00

0

5110431E00
ref: 0

DAMPER ASSY,FR FORK,L

€ 693.00

1

5113031E00
ref: 1

TUBE,OUTER,R

€ 471.00

2

5114031E00
ref: 2

TUBE,OUTER,L

€ 355.00

3

5111031E00
ref: 3

TUBE,INNER

€ 393.00

4

5112117C00
ref: 4

BUSH,SLIDE

€ 20.50

5

5115231E00
ref: 5

BUSH,GUIDE

€ 19.00

6

5116817C00
ref: 6

SPACER,SEAL

€ 5.00

7

5115314D00
ref: 7

SEAL,OIL

€ 20.50

8

5155638B00
ref: 8

CIRCLIP,FORK OIL SEAL

€ 4.50

9

5117329E00
ref: 9

SEAL,DUST

€ 23.00

10

5119531E00
ref: 10

PIECE,OIL LOCK

€ 25.00

11

5114748130
ref: 11

BOLT(8X27)

€ 3.50

12

5114836011
ref: 12

GASKET (NAS)

€ 4.00

13

0155008457
ref: 13

BOLT

€ 4.00

14

5211031E00
ref: 14

DAMPER,FR

€ 356.50

15

5117131E00
ref: 15

SPRING,MAIN

€ 64.00

16

5118617C00
ref: 16

SEAT,SPRING LWR

€ 4.50

17

5117617C00
ref: 17

COLLAR,SPRING(35X37X50)

€ 9.50

18

5117217C00
ref: 18

SEAT,SPRING UPR

€ 11.50

19

5182717C00
ref: 19

NUT

€ 10.50

20

5118531E00
ref: 20

ADJUSTER,SPRING

€ 62.50

21-1

5183417C00
ref: 21-1
MODEL R

O RING

€ 3.50

21-2

0928014003
ref: 21-2
MODEL S

O-RING (D:2.4 ID:13.8)

€ 3.50

22

5118914D00
ref: 22

BOLT,FORK

€ 62.50

23

5111717C00
ref: 23

O RING

€ 3.50
