CLUTCH (MODEL S/T/V/W)

RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

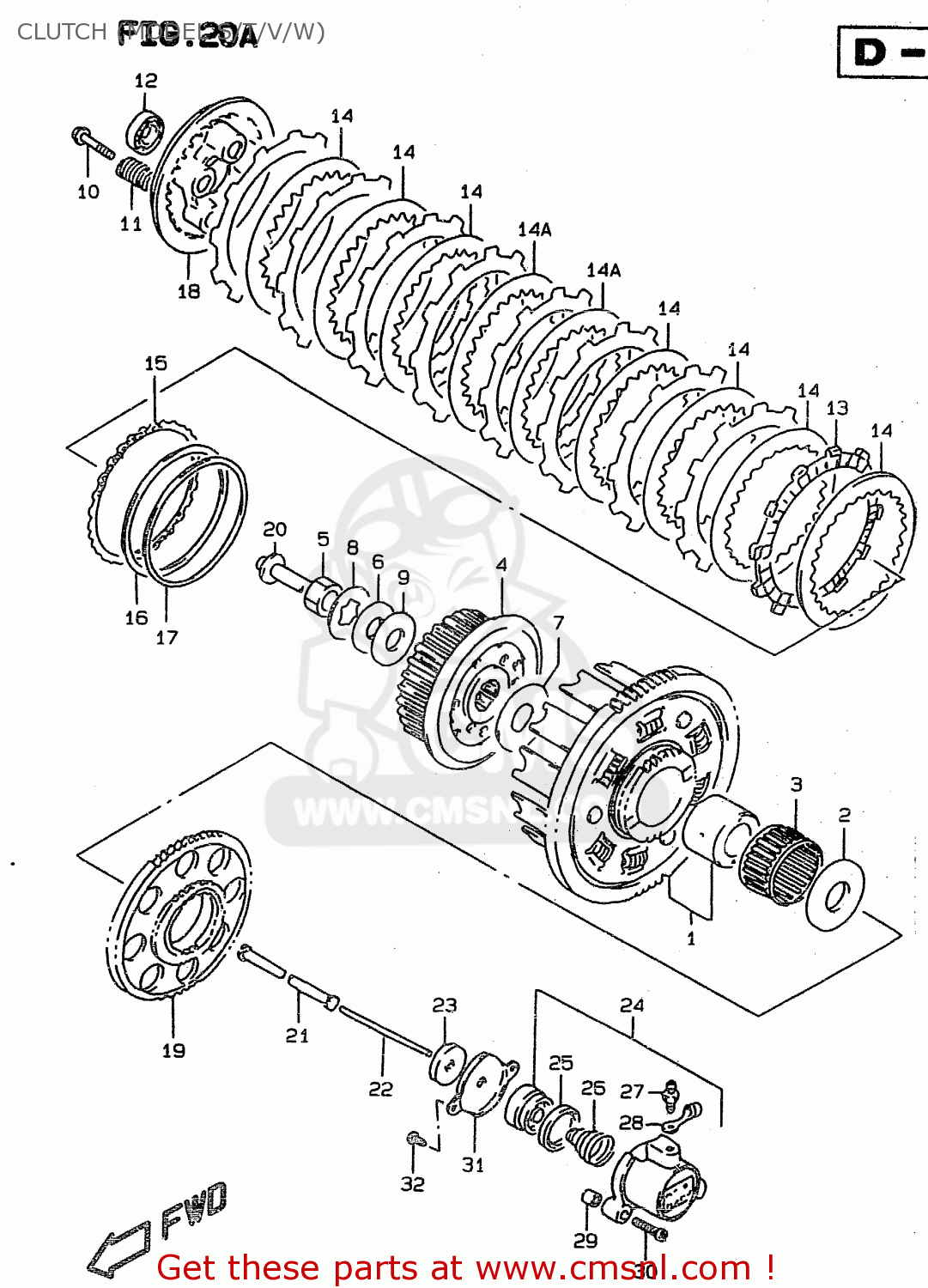

Clutch (model s/t/v/w) diagram RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

CLUTCH (MODEL S/T/V/W) RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)
CLUTCH (MODEL S/T/V/W) RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)
CLUTCH (MODEL S/T/V/W) RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)
prices are in EUR
ref
part #
description
quantity
1-1
2120031850
ref: 1-1
MODEL S
GEAR ASSEMBLY,PRIMARY DRIVE
€ 517.00
1-2
2120031861
ref: 1-2
MODEL T/V/W <-21200-
GEAR ASSY,PRI DRIVEN
2120031861
€ 517.00
2-1
0916025067
ref: 2-1
MODEL S/T/V
WASHER(25X54X2.5)
0916025067
€ 9.00
2-2
0916025037
ref: 2-2
MODEL W
WASHER(25X54X2.5)
0916025037
€ 9.00
3
0926335017
ref: 3
BEARING(35X40X35.8)
0926335017
€ 36.50
4
2141031E00
ref: 4
HUB,CLUTCH SLEEVE
2141031E00
€ 104.50
5
0914024012
ref: 5
NUT
0914024012
€ 6.00
6
0916425001
ref: 6
WASHER
0916425001
€ 4.50
7
0916025056
ref: 7
WASHER(25X50X2.5)
0916025056
€ 9.50
8
0916725007
ref: 8
WASHER,LOCK
0916725007
€ 7.50
9
0821125441
ref: 9
WASHER
0821125441
€ 2.00
10
2141231E00
ref: 10
BOLT,CLUTCH SPRING
2141231E00
€ 3.50
11
2141331E00
ref: 11
SPRING,CLUTCH
2141331E00
€ 6.00
12
0811062020
ref: 12
BALL BEARING
€ 14.50
13
2144131E00
ref: 13
PLATE,CLUTCH DRIVE
2144131E00
€ 21.50
14
2145131E00
ref: 14
T:1.6
PLATE,CLUTCH DRIVEN NO.1
2145131E00
€ 7.00
14A
2145131E10
ref: 14A
T:2.0
PLATE,CLUTCH DRIVEN NO.2
2145131E10
€ 7.50
15
2144231E00
ref: 15
PLATE,CLUTCH DRIVE
2144231E00
€ 25.50
16-1
2147231E00
ref: 16-1
MODEL S
WASHER,CLUTCH PLATE
€ 15.00
16-2
2147231E01
ref: 16-2
MODEL T/V/W
WASHER,CLUTCH PLATE WAVE
2147231E01
€ 15.00
17
2147131E00
ref: 17
SEAT,CLUTCH PLATE WAVE WASHER
2147131E00
€ 12.00
18
2146231E00
ref: 18
DISC,CLUTCH PRESSURE
2146231E00
€ 44.50
19-1
2272121E01
ref: 19-1
MODEL S/T/V
GEAR,GENERATOR DRIVE
€ 192.50
19-2
2272121E02
ref: 19-2
MODEL W
GEAR,GENERATOR DRIVE
2272121E02
€ 192.50
20
2312131E00
ref: 20
PIECE,CLUTCH PUSH
2312131E00
€ 18.50
21
2311027A00
ref: 21
ROD,CLUTCH
2311027A00
€ 17.00
22
2311130001
ref: 22
ROD,CLUTCH PUSH
2311130001
€ 13.50
23
0928506015
ref: 23
SEAL,OIL(6X34X5.5)
0928506015
€ 8.50
24
2316006B02
ref: 24
CYLINDER,CLUTCH RELEASE
2316006B02
€ 122.50
25
2316306B00
ref: 25
CUP
2316306B00
€ 5.50
26
2316405A00
ref: 26
SPRING,CLUTCH CYLINDER
2316405A00
€ 3.50
27
5912101A00
ref: 27
BLEEDER
5912101A00
€ 8.50
28
5912201A00
ref: 28
CAP,BLEEDER
5912201A00
€ 4.50
29
0421109129
ref: 29
PIN
0421109129
€ 2.00
30
0713006253
ref: 30
BOLT,CL.COVER
0713006253
€ 3.00
31
2311746E00
ref: 31
COVER,CLUTCH RELEASE CYLINDER
2311746E00
€ 6.50
32
0211206103
ref: 32
SCREW
0211206103
€ 1.50
