INSTALLATION PARTS

RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

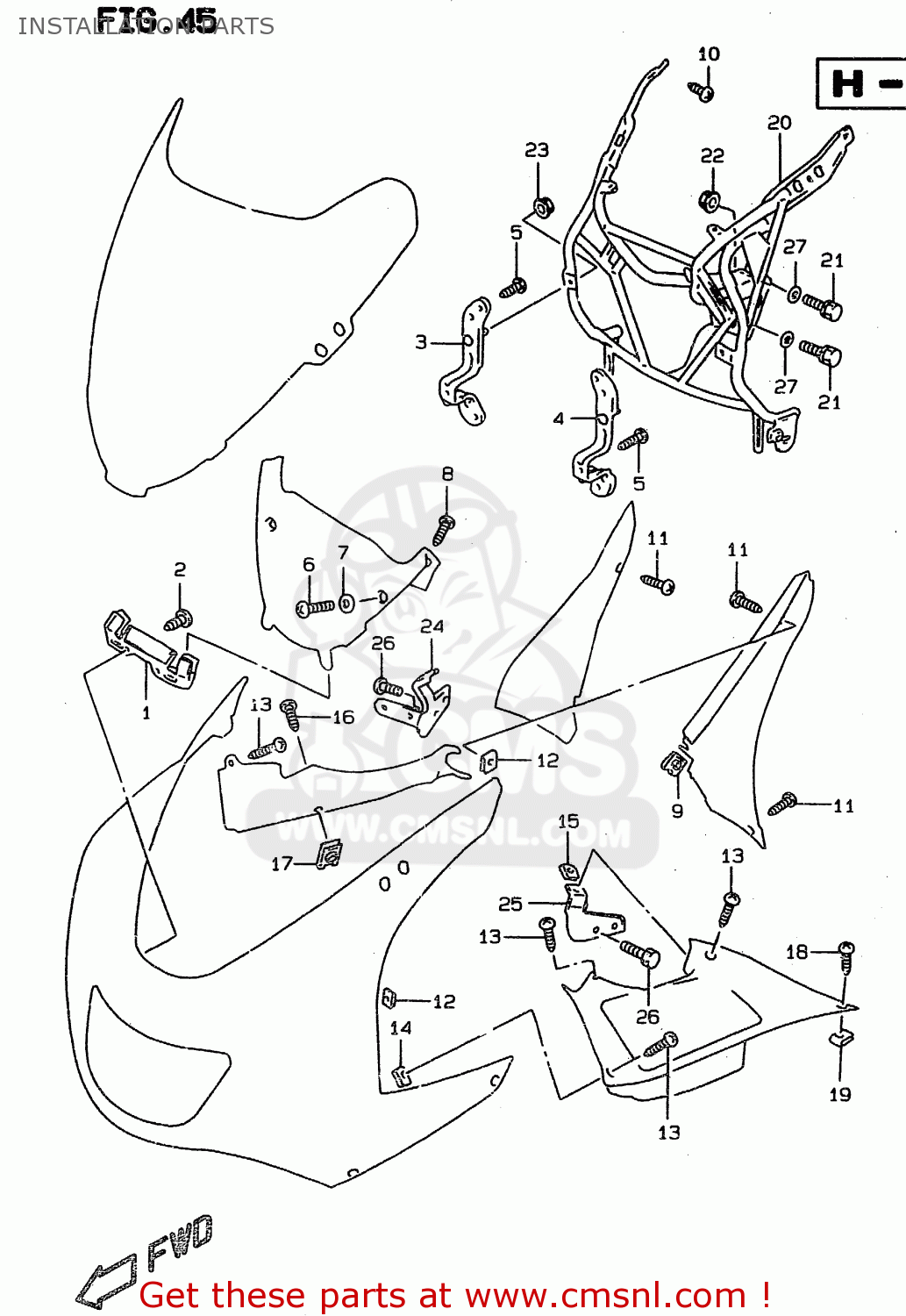

Installation parts diagram RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

INSTALLATION PARTS RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

INSTALLATION PARTS RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

prices are in EUR

ref

part #

description

quantity

1

9462021E00
ref: 1

BRACKET,WINDSCREEN FIT FR

€ 20.50

2

0354105103
ref: 2

SCREW 5X10

€ 1.50

3

9441821E00
ref: 3

BRACKET,HEADLAMP FITING,R

€ 15.50

4

9442821E00
ref: 4

BRACKET,HEADLAMP FITING,L

€ 15.50

5

0354105103
ref: 5

SCREW 5X10

€ 1.50

6

0214205123
ref: 6

SCREW 5X12

€ 1.50

7

0916105017
ref: 7

WASHER(5.2X14X1.5)

€ 3.00

8

0324205163
ref: 8

SCREW

€ 1.50

9

0914805013
ref: 9

NUT

€ 1.50

10

0354105103
ref: 10

SCREW 5X10

€ 1.50

11

0324205163
ref: 11

SCREW

€ 1.50

12

0914805038
ref: 12

NUT

€ 2.50

13

0324205163
ref: 13

SCREW

€ 1.50

14

0914805038
ref: 14

NUT

€ 2.50

15

0914805038
ref: 15

NUT

€ 2.50

16

0324205163
ref: 16

SCREW

€ 1.50

17

0914805038
ref: 17

NUT

€ 2.50

18

0324205163
ref: 18

SCREW

€ 1.50

19

0914805038
ref: 19

NUT

€ 2.50

20-1

9451031E00
ref: 20-1
MODEL R/S

BRACE,COWLING

€ 300.50

20-2

9451031E10
ref: 20-2
MODEL T/V/W

BRACE,COWLING

€ 300.50

21

0910308222
ref: 21

BOLT(8X40)

€ 3.00

22

0831610083
ref: 22

NUT

€ 3.00

23

0831931063
ref: 23

NUT

€ 2.50

24

9455021E00
ref: 24

BRACKET,SIDE PANEL,R

€ 20.00

25

9456121E00
ref: 25

BRACKET,SIDE PANEL,L

€ 15.50

26

0155006103
ref: 26

BOLT

€ 2.50

27

0916408020
ref: 27

WASHER

€ 2.50
