REAR SWINGING ARM (MODEL T/V/W)

RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

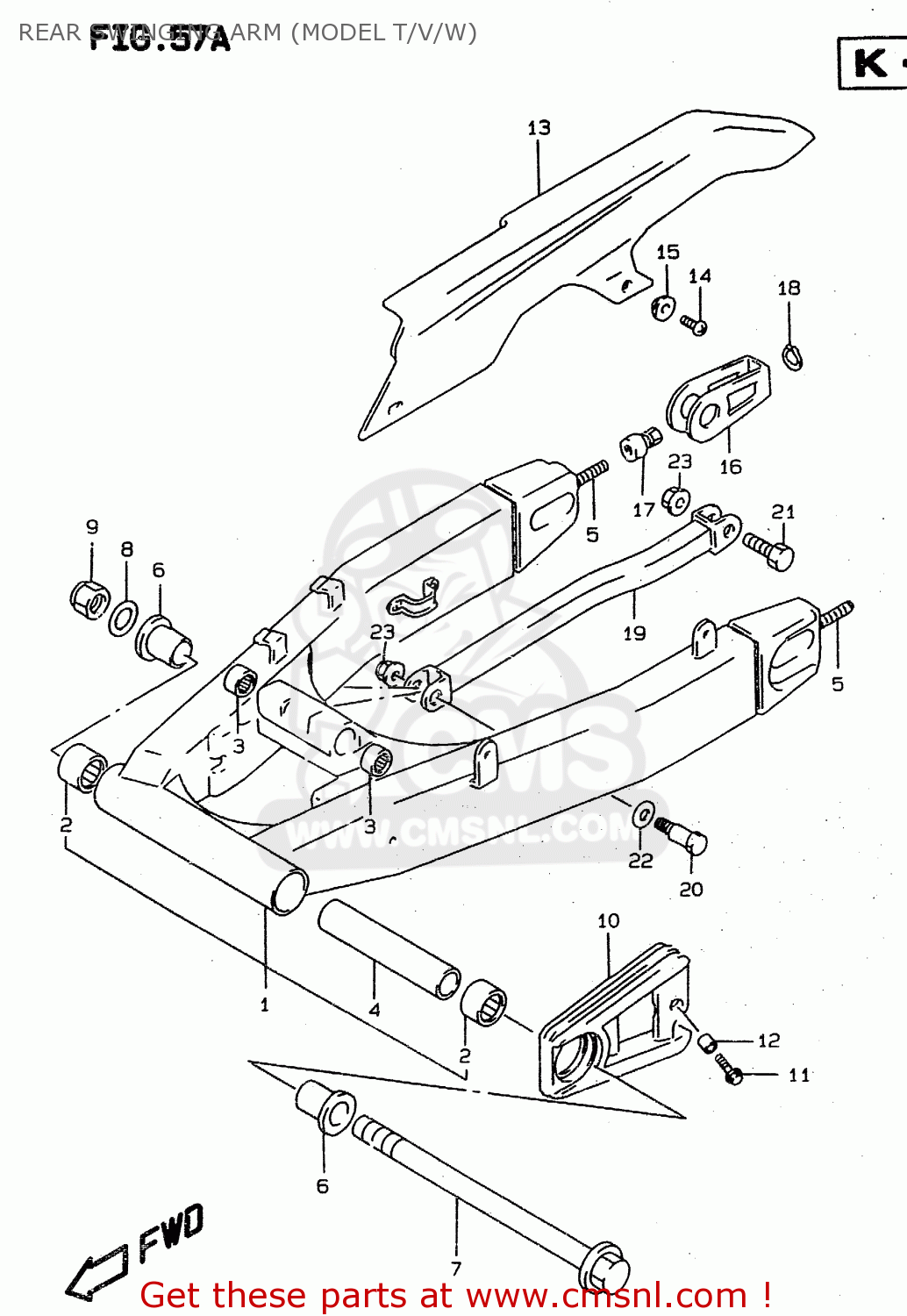

Rear swinging arm (model t/v/w) diagram RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

REAR SWINGING ARM (MODEL T/V/W) RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

REAR SWINGING ARM (MODEL T/V/W) RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

prices are in EUR

ref

part #

description

quantity

1

6100031E10
ref: 1

SWINGINGARM ASSY,RR

€ 1,771.00

2

0926325059
ref: 2

BEARING(25X33X35)

€ 35.00

3

0926317037
ref: 3

BEARING(17X24X25)

€ 19.00

4

6128231E00
ref: 4

SPACER,RR SWGARM PIVOT CTR

€ 19.00

5

6143140C00
ref: 5

STUD,CHAIN ADJUSTER BOLT

€ 7.50

6

6125131E00
ref: 6

SPACER,RR SWGARM PIVOT BERRING

€ 16.00

7

6121131E00
ref: 7

SHAFT,RR SWINGINGARM PIVOT

€ 53.00

8

0916018030
ref: 8

WASHER(18.5X28X2.6)

€ 2.50

9

0915918007
ref: 9

NUT

€ 14.00

10-1

6127317E02
ref: 10-1
MODEL T MODEL V ~F.N

BUFFER,CHAIN TOUCH DEFENSE

€ 41.00

10-2

6127317E50
ref: 10-2
MODEL V F.NO. GT73A-

BUFFER,CHAIN TOUCH DEFENSE

€ 41.00

11

0911606111
ref: 11

BOLT 6X20,WITH PLAIN WASHER

€ 2.00

12

0918006283
ref: 12

SPACER(6.5X10X7)

€ 2.00

13

6131045D12
ref: 13

CASE,CHAIN

€ 104.00

14

0214206123
ref: 14

SCREW 6X12

€ 2.00

15

0916906026
ref: 15

WASHER

€ 2.00

16

6141140C00
ref: 16

ADJUSTER,CHAIN

€ 11.50

17

6141522D00
ref: 17

NUT,CHAIN ADJUSTER

€ 20.00

18

0833131136
ref: 18

CIRCLIP

€ 1.50

19

6431027E00019
ref: 19

TORQUELINK,RR

€ 33.50

20

0911110051
ref: 20

BOLT(10X39)

€ 8.50

21

0910010187
ref: 21

BOLT(10X34)

€ 4.50

22

0916012011
ref: 22

WASHER(12.5X20X1)

€ 1.50

23

0831931107
ref: 23

NUT

€ 3.00
