STARTING MOTOR

RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

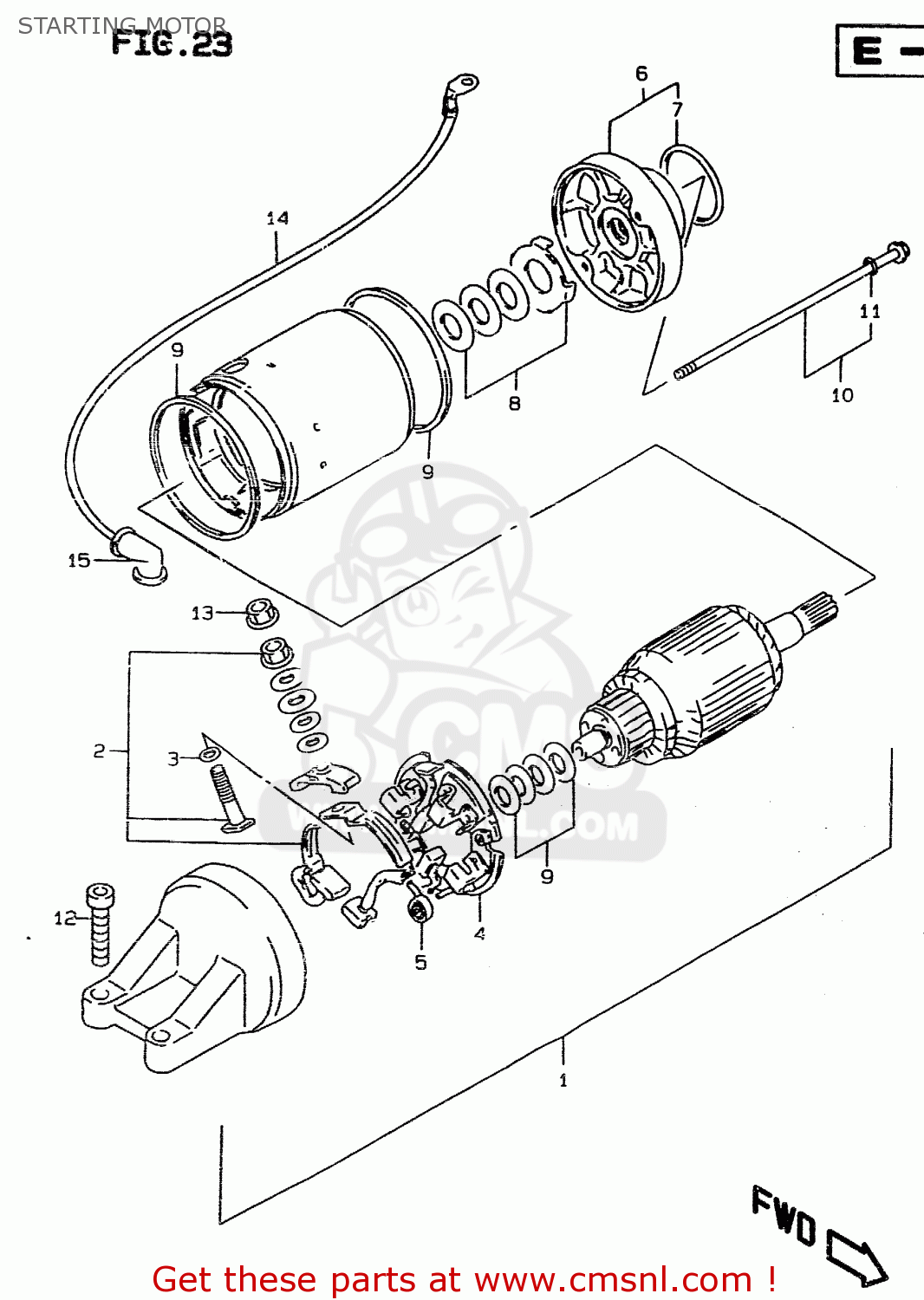

Starting motor diagram RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

STARTING MOTOR RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

STARTING MOTOR RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

prices are in EUR

ref

part #

description

quantity

1

3110046E00
ref: 1

MOTOR ASSEMBLY,STARTING

€ 730.00

2

3113019B10
ref: 2

TERMINAL SET,BRUSH,PLUS

€ 27.50

3

3114349040
ref: 3

O RING

€ 3.00

4

3113246E00
ref: 4

BRUSH,HOLDER SET

€ 47.00

5

3113531300
ref: 5

SPRING,BRUSH

€ 4.00

6

3115046E00
ref: 6

BRACKET ASSEMBLY,FRONT

€ 85.00

7

3115648B00
ref: 7
<-31156-46E00

O RING

€ 8.50

8

3117019B10
ref: 8

SHIM SET,STARTING MOTOR

€ 8.00

9-1

3126431300
ref: 9-1
MODEL R/S/T/V

O RING

€ 7.50

9-2

3126432E00
ref: 9-2
MODEL W

SQUARE RING

€ 7.50

10

3128019B10
ref: 10

BOLT SET,STARTING MOTOR

€ 8.50

11

3114349040
ref: 11

O RING

€ 3.00

12-1

0712006253
ref: 12-1
MODEL R

BOLT,OIL PAN

€ 2.50

12-2

0912806024
ref: 12-2
MODEL S/T/V/W

SCREW (6X25)

€ 2.50

13

0836135068
ref: 13

NUT

€ 2.00

14

3381021E00
ref: 14

WIRE,STARTER MOTOR LEAD

€ 25.50

15

3186148B10
ref: 15

CAP,STARTER MOTOR LEAD

€ 4.50
