FUEL TANK (MODEL R/S)

RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

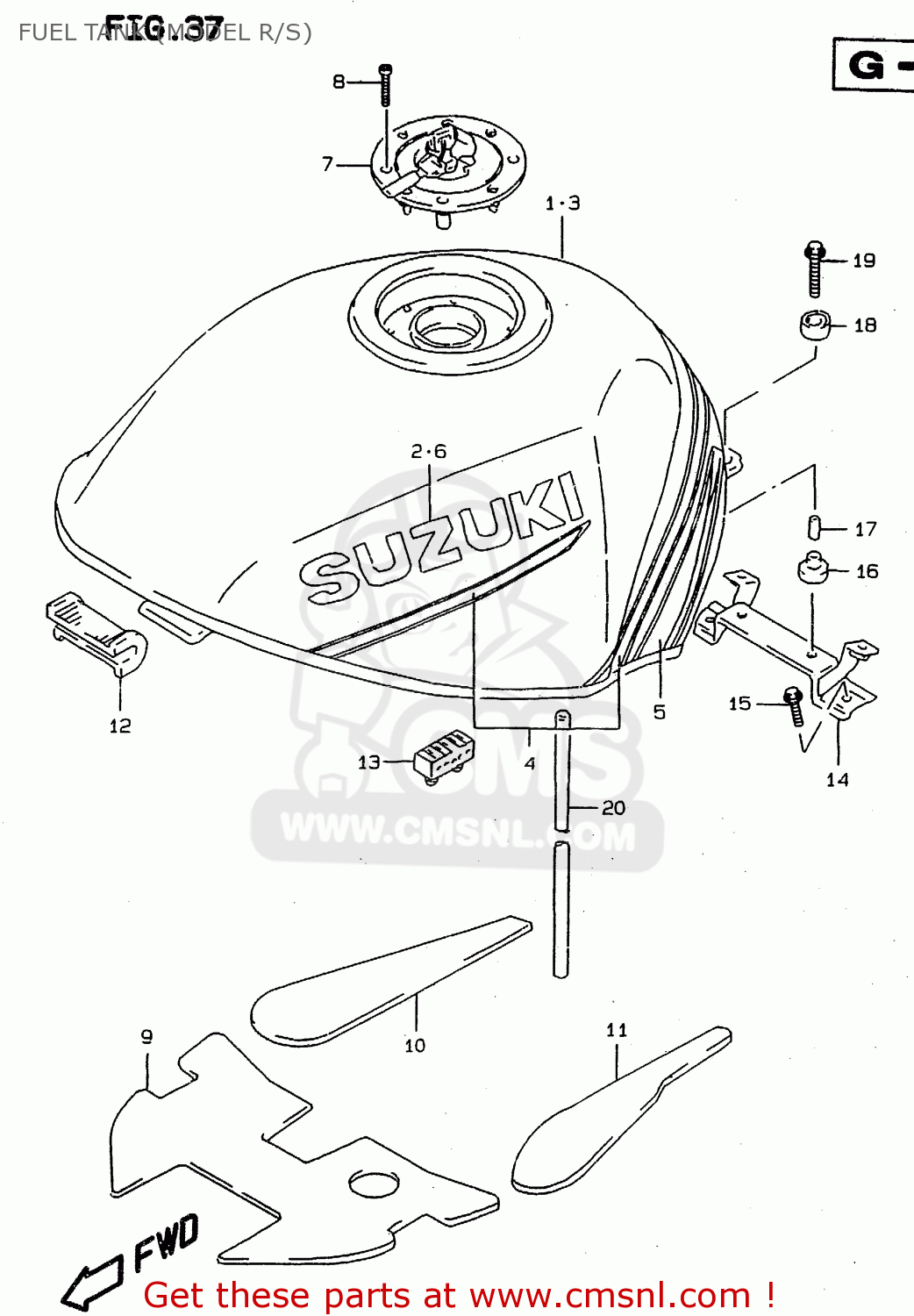

Fuel tank (model r/s) diagram RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

FUEL TANK (MODEL R/S) RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)
FUEL TANK (MODEL R/S) RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)
FUEL TANK (MODEL R/S) RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)
prices are in EUR
ref
part #
description
quantity
1-1
4410031E0019A
ref: 1-1
RF900RR
TANK ASSEMBLY,FUEL
€ 720.50
1-2
4410031E0119A
ref: 1-2
RF900RS
TANK ASSEMBLY,FUEL
€ 720.50
1-3
4410031E0033J
ref: 1-3
RF900RR
TANK ASSEMBLY,FUEL
€ 613.50
1-4
4410031E011HU
ref: 1-4
RF900RS
TANK ASSY,FUEL(PURPLE)
€ 577.00
1-5
4410031E011UH
ref: 1-5
RF900RS
TANK ASSEMBLY,FUEL
€ 613.50
2-1
6811101D0029F
ref: 2-1
FOR 19A
EMBLEM,FUEL TANK
6811101D0029F
€ 13.00
2-2
6811101D0017U
ref: 2-2
FOR 33J
EMBLEM,FUEL TANK
6811101D0017U
€ 11.50
2-3
6811101D0034A
ref: 2-3
FOR 1HU
EMBLEM,FUEL TANK
€ 12.50
2-4
6811101D001RR
ref: 2-4
FOR 1UH
EMBLEM,FUEL TANK
€ 12.50
3
4410031E30D8A
ref: 3
RF900RS2
TANK ASSY,FUEL
€ 599.50
4
6811031E00D8M
ref: 4
RF900RS2
TAPE SET,FUEL TANK
€ 71.00
5
6811031E10D8M
ref: 5
RF900RS2
TAPE SET,FUEL TANK
6811031E10D8M
€ 27.00
6
6811101D000FP
ref: 6
RF900RS2
EMBLEM,FUEL TANK
€ 11.50
7-1
4420101831
ref: 7-1
MODEL R
CAP SET,FUEL TANK
4420101831
€ 204.00
7-2
4420101832
ref: 7-2
MODEL S
CAP SET,FUEL TANK
4420101832
€ 204.00
8
0910605017
ref: 8
BOLT(5X20)
0910605017
€ 3.00
9
4419121E00
ref: 9
SHIELD,FUEL TANK HEAT NO.1
4419121E00
€ 144.00
10
4419221E00
ref: 10
SHIELD,FUEL TANK HEAT NO.2
4419221E00
€ 31.00
11
4419321E00
ref: 11
SHIELD,FUEL TANK HEAT NO.3
4419321E00
€ 31.00
12-1
4451132C00
ref: 12-1
MODEL R
CUSHION,FUEL TANK,FRONT
€ 15.50
12-2
4451132C01
ref: 12-2
MODEL S
CUSHION,FUEL TANK FR
4451132C01
€ 15.50
13
4514931300
ref: 13
CUSHION,SEAT(40X20X15)
4514931300
€ 2.00
14
4453021E02
ref: 14
BRACKET,FUEL TANK RR
€ 35.00
15
0155008163
ref: 15
BOLT
0155008163
€ 3.00
16
0932010038
ref: 16
CUSHION
0932010038
€ 4.00
17
0918006072
ref: 17
SPACER
0918006072
€ 2.00
18
0932014017
ref: 18
CUSHION
0932014017
€ 3.00
19-1
0155006353
ref: 19-1
MODEL R
BOLT
0155006353
€ 2.50
19-2
0155006303
ref: 19-2
MODEL S
BOLT
0155006303
€ 2.50
20
0935270103600
ref: 20
HOSE(7X10.2X600)
0935270103600
€ 8.00
