CYLINDER

RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

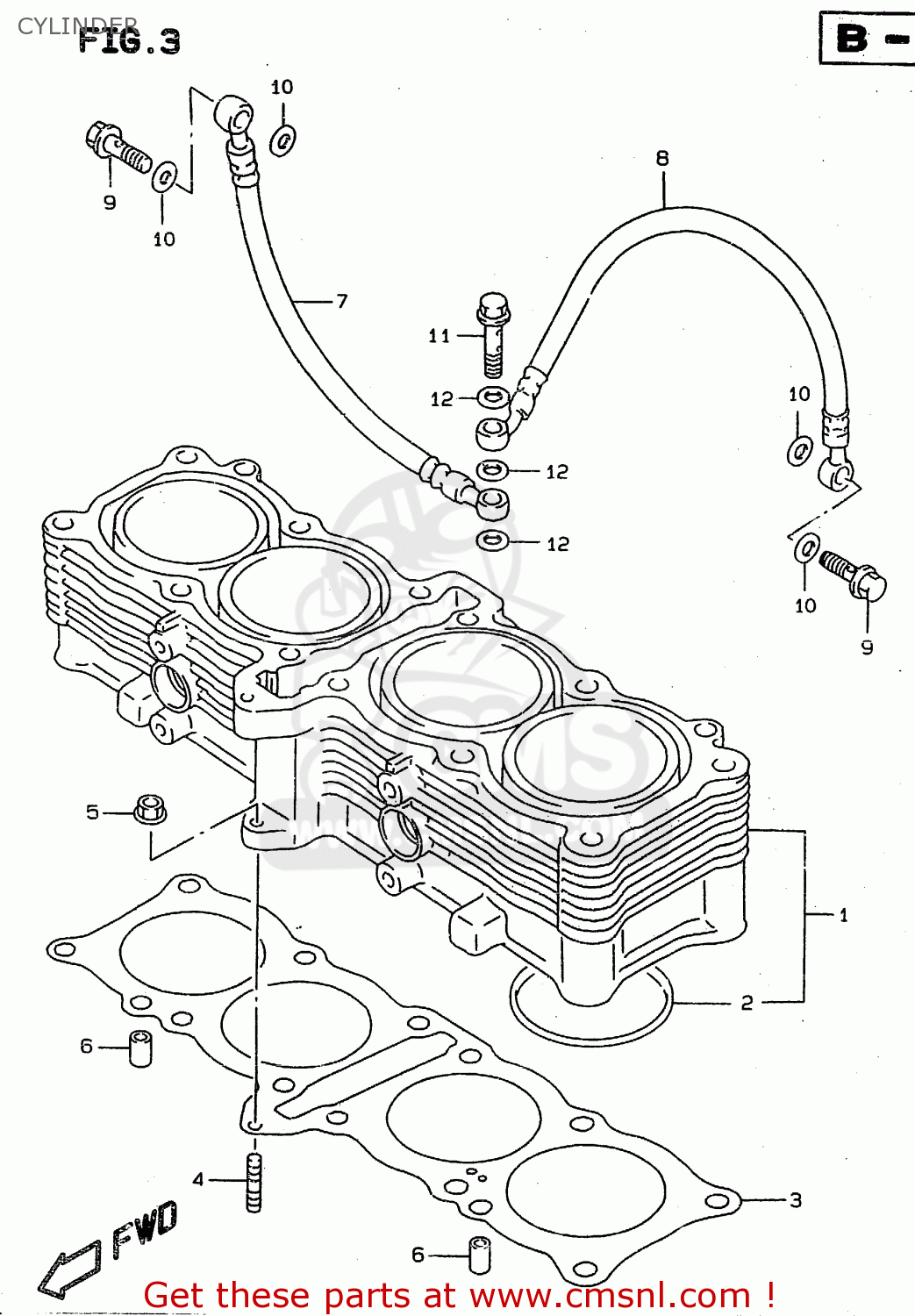

Cylinder diagram RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

prices are in EUR

ref

part #

description

quantity

1121031E00
ref: 1

CYLINDER COMP

€ 908.00

0928071004
ref: 2

O RING(D:2.6,ID:69.6)

€ 19.00

1124131E00
ref: 3

GASKET,CYLINDER

€ 35.50

0142106203
ref: 4

STUD,M6X1X32

€ 2.50

0831610063
ref: 5

NUT

€ 2.50

0421111189
ref: 6

PIN

€ 2.00

1128121E00
ref: 7

HOSE,CYLINDER HEAD OIL,R

€ 77.50

1128221E00
ref: 8

HOSE,CYLINDER HEAD OIL,L

€ 91.00

1128417E00
ref: 9

BOLT,OIL PIPE UNION,NO

€ 15.00

0916808016
ref: 10

GASKET(8.2X14X1) (NAS)

€ 1.00

1128532C00
ref: 11

BOLT,OIL PIPE UNION,NO

€ 16.50

0916110009
ref: 12

WASHER(10X15X1.5)

€ 2.00
