FRONT DAMPER (RF900RS2/RT/RV)

RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

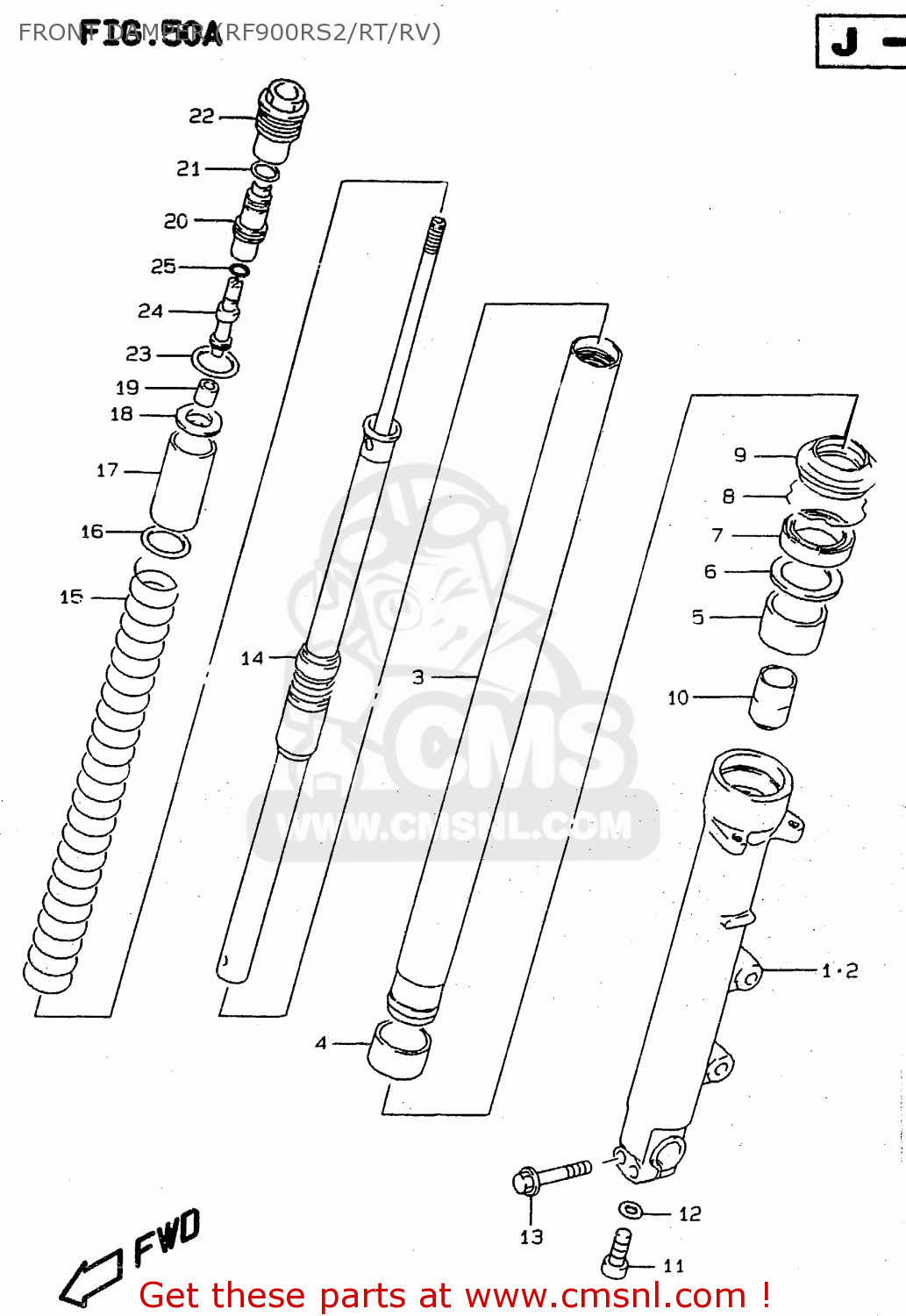

Front damper (rf900rs2/rt/rv) diagram RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

FRONT DAMPER (RF900RS2/RT/RV) RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

FRONT DAMPER (RF900RS2/RT/RV) RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

prices are in EUR

ref

part #

description

quantity

0

5110331E20
ref: 0

DAMPER ASSY,FR FORK,R

€ 673.50

0

5110431E20
ref: 0

DAMPER ASSY,FR FORK,L

€ 685.50

1

5113031E00
ref: 1

TUBE,OUTER,R

€ 471.00

2

5114031E00
ref: 2

TUBE,OUTER,L

€ 355.00

3

5111031E20
ref: 3

TUBE,INNER

€ 393.00

4

5112117C00
ref: 4

BUSH,SLIDE

€ 20.50

5

5115231E00
ref: 5

BUSH,GUIDE

€ 19.00

6

5116817C00
ref: 6

SPACER,SEAL

€ 5.00

7

5115314D00
ref: 7

SEAL,OIL

€ 20.50

8

5155638B00
ref: 8

CIRCLIP,FORK OIL SEAL

€ 4.50

9

5117329E00
ref: 9

SEAL,DUST

€ 23.00

10

5119531E00
ref: 10

PIECE,OIL LOCK

€ 25.00

11

5114748130
ref: 11

BOLT(8X27)

€ 3.50

12

5114836011
ref: 12

GASKET (NAS)

€ 4.00

13

0155008457
ref: 13

BOLT

€ 4.00

14

5211031E20
ref: 14

DAMPER,FR

€ 270.50

15

5117131E20
ref: 15

SPRING,MAIN

€ 51.50

16

5118617C00
ref: 16

SEAT,SPRING LWR

€ 4.50

17

5117617C00
ref: 17

COLLAR,SPRING(35X37X50)

€ 9.50

18

5117217C00
ref: 18

SEAT,SPRING UPR

€ 11.50

19

5182717C00
ref: 19

NUT

€ 10.50

20

5118531E20
ref: 20

ADJUSTER,SPRING

€ 52.00

21

0928014011
ref: 21

O RING(D:2.5,ID:13.8)

€ 3.50

22

5118917C00
ref: 22

BOLT,FORK

€ 49.50

23

5111717C00
ref: 23

O RING

€ 3.50

24

5182131E20
ref: 24

PIECE,ADJUSTER

€ 25.50

25

0928003002
ref: 25

O RING(D:1.9,ID:3.8)

€ 2.00
