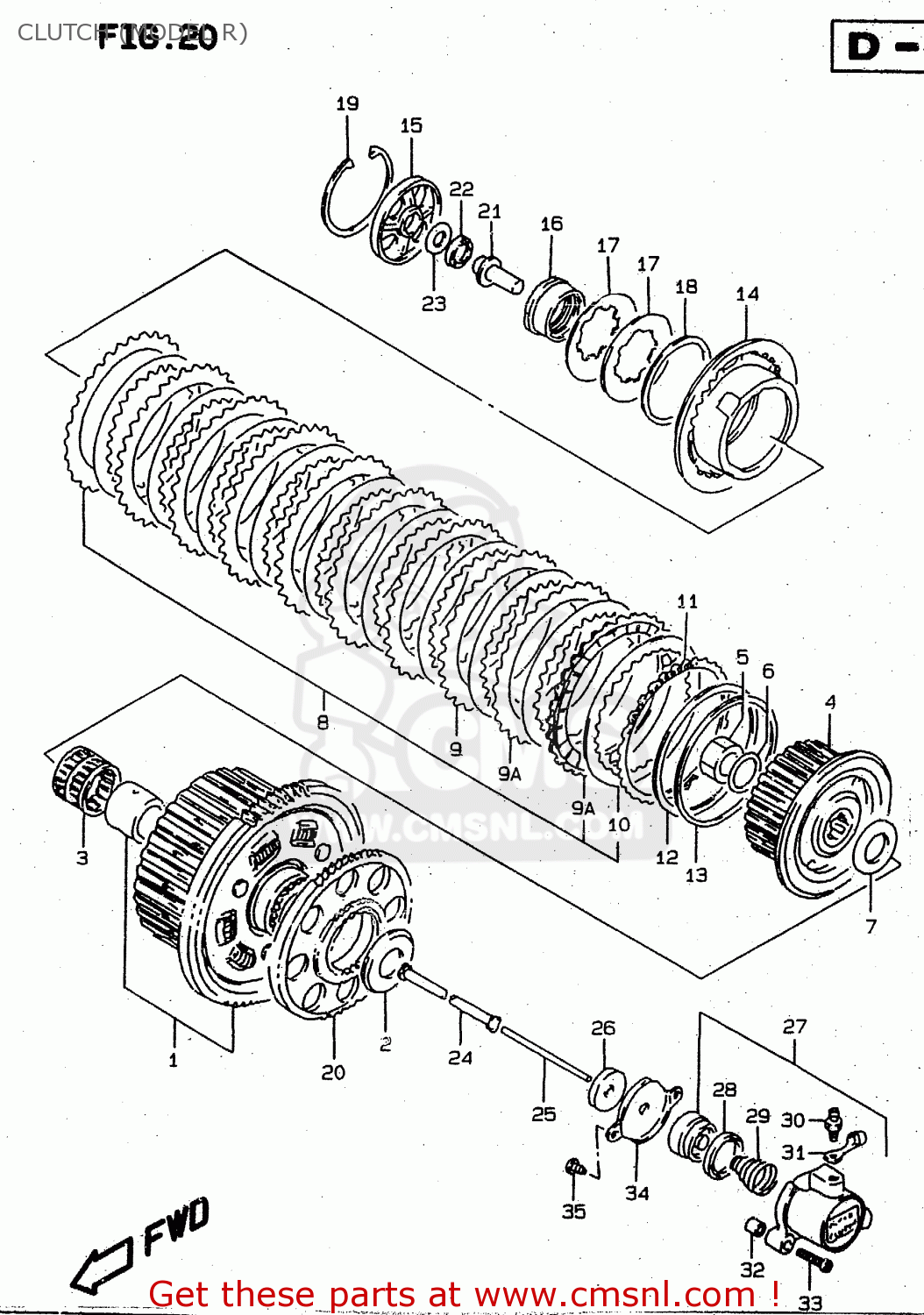

CLUTCH (MODEL R)

ref

part #

description

quantity

1

2120040831
ref: 1

GEAR ASSEMBLY,PRIMARY DRIVE

€ 375.50

2

0916025067
ref: 2

WASHER(25X54X2.5)

€ 9.00

3

0926335017
ref: 3

BEARING(35X40X35.8)

€ 36.50

4

2141046E00
ref: 4

HUB,CLUTCH SLEEVE

€ 173.00

5

0915924008
ref: 5

NUT

€ 10.50

6

0916424006
ref: 6

WASHER

€ 4.00

7

0916025056
ref: 7

WASHER(25X50X2.5)

€ 9.50

8

2140040C01
ref: 8

PLATE ASSY,CLUTCH

€ 222.50

9

2144148B00
ref: 9

PLATE,CLUTCH DRIVE NO.1 (NAS)

€ 18.00

9A

2144148B10
ref: 9A

PLATE,CLUTCH DRIVE NO.2 (NAS)

€ 15.50

10

2145148B00
ref: 10

PLATE,CLUTCH DRIVEN (NAS)

€ 10.50

11

2144246E00
ref: 11

PLATE,CLUTCH DRIVE NO.2

€ 17.50

12

0916400007
ref: 12

WASHER

€ 13.00

13

2147140C01
ref: 13

SEAT,CL SLEEVE HUB WAVE WASHER

€ 15.00

14

2146240C02
ref: 14

DISC,CLUTCH PRESSURE

€ 134.50

15

2146340C01
ref: 15

LIFTER,CLUTCH PRESSURE DISC

€ 33.00

16

2161140C01
ref: 16

HOLDER,CLUTCH SPRING

€ 162.00

17

0916447001
ref: 17

WASHER

€ 9.00

18

2162340C00
ref: 18

SEAT,CLUTCH SPRING

€ 9.00

19

0938184002
ref: 19

CIRCLIP

€ 10.50

20

2272121E01
ref: 20

GEAR,GENERATOR DRIVE

€ 192.50

21

2312107A00
ref: 21

PIECE,CLUTCH PUSH

€ 18.50

22

0926315003
ref: 22

BEARING(15X28X2)

€ 7.00

23

0916015045
ref: 23

WASHER(15.5X28X1)

€ 4.00

24

2311027A00
ref: 24

ROD,CLUTCH

€ 17.00

25

2311124A01
ref: 25

ROD,CLUTCH PUSH,L

€ 15.00

26

0928506015
ref: 26

SEAL,OIL(6X34X5.5)

€ 8.50

27

2316006B02
ref: 27

CYLINDER,CLUTCH RELEASE

€ 122.50

28

2316306B00
ref: 28

CUP

€ 5.50

29

2316405A00
ref: 29

SPRING,CLUTCH CYLINDER

€ 3.50

30

5912101A00
ref: 30

BLEEDER

€ 8.50

31

5912201A00
ref: 31

CAP,BLEEDER

€ 4.50

32

0421109129
ref: 32

PIN

€ 2.00

33

0713006253
ref: 33

BOLT,CL.COVER

€ 3.00

34

2311746E00
ref: 34

COVER,CLUTCH RELEASE CYLINDER

€ 6.50

35

0211206103
ref: 35

SCREW

€ 1.50
