FRAME COVER (MODEL R/S)

RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

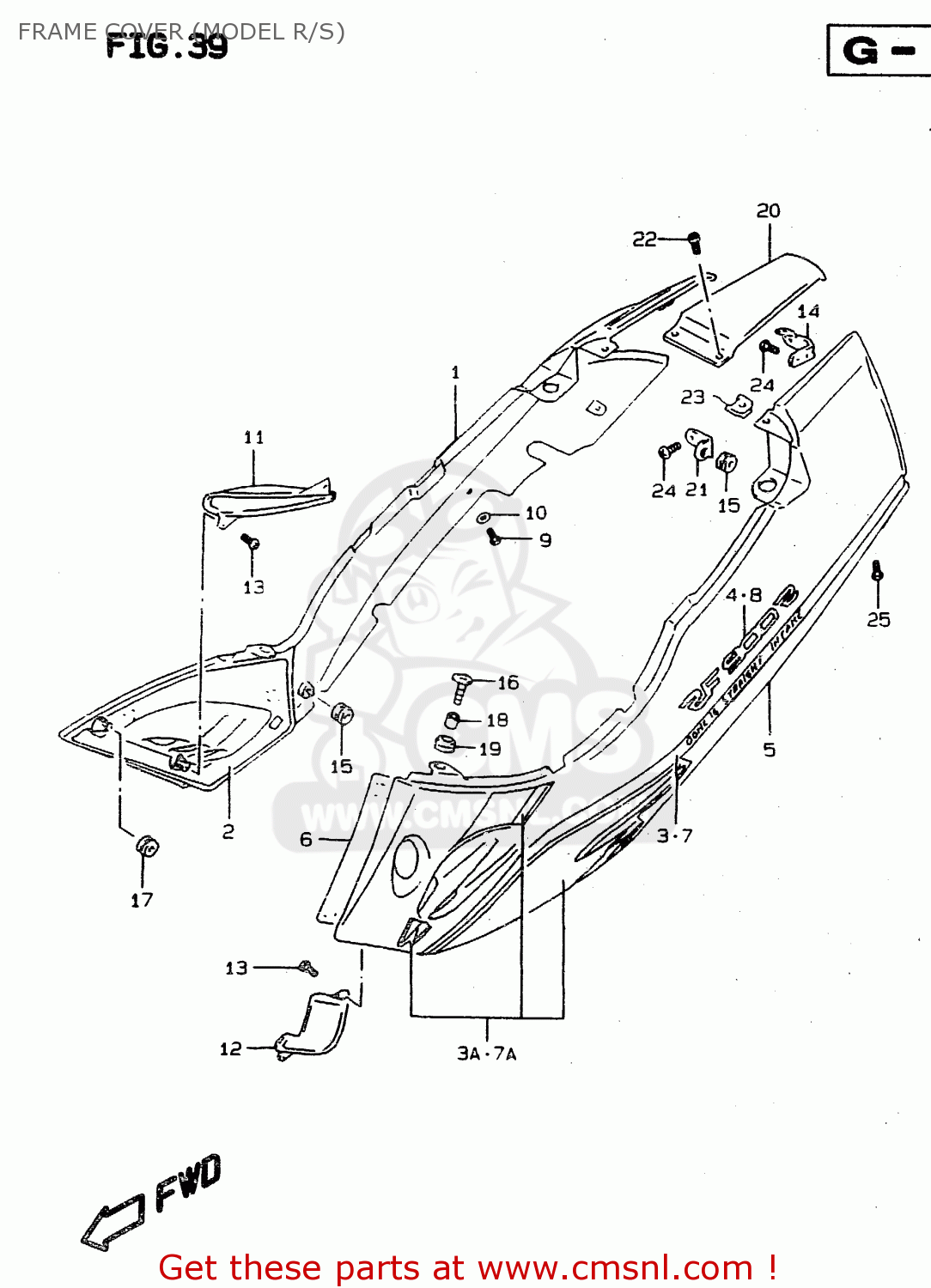

Frame cover (model r/s) diagram RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

FRAME COVER (MODEL R/S) RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)
FRAME COVER (MODEL R/S) RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)
FRAME COVER (MODEL R/S) RF900R 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)
prices are in EUR
ref
part #
description
quantity
1-1
4710031E0019A
ref: 1-1
RF900RR/RS
COVER ASSY,FRAME,R(RED)
€ 439.50
1-2
4710031E0033J
ref: 1-2
RF900RR
COVER ASSY,FRAME,R(BLACK)
4710031E0033J
€ 408.50
1-3
4710031E001HU
ref: 1-3
RF900RS
COVER ASSY,FRAME,R(PURPLE)
€ 408.50
1-4
4710031E001UH
ref: 1-4
RF900RS
COVER ASSEMBLY,FRAME,RIGHT
4710031E001UH
€ 413.00
1-5
4710031E100FP
ref: 1-5
RF900RS2
COVER ASSY,FRAME,R(SILVER)
€ 408.50
2
4711731E00
ref: 2
SHIELD,FRAME COVER HEAT
4711731E00
€ 32.50
3-1
6813031E00B7G
ref: 3-1
FOR 19A
TAPE SET,FRAME COVER STRIPE,R
6813031E00B7G
€ 99.00
3-2
6813031E00B7H
ref: 3-2
FOR 33J
TAPE SET,FRAME COVER S
€ 121.00
3-3
6813031E00D2A
ref: 3-3
FOR 1HU
TAPE SET,FRAME COVER STRIPE,R
€ 115.00
3-4
6813031E00D3S
ref: 3-4
FOR 1UH
TAPE SET,FRAME COVER,R
€ 90.00
3-5
6813031E00D9E
ref: 3-5
FOR 0FP
TAPE SET,FRAME COVER S
€ 121.00
3A
6813031E10D8M
ref: 3A
FOR 0FP
TAPE SET,FRAME COVER,R
€ 40.00
4-1
6813131E00AF7
ref: 4-1
FOR 19A
EMBLEM,FRAME COVER
€ 44.50
4-2
6813131E00B8U
ref: 4-2
FOR 33J
EMBLEM,FRAME COVER
6813131E00B8U
€ 45.00
4-3
6813131E00D1Z
ref: 4-3
FOR 1HU
EMBLEM,FRAME COVER
€ 41.00
4-4
6813131E00D3T
ref: 4-4
FOR 1UH
EMBLEM,FRAME COVER
€ 34.00
4-5
6813131E00D8P
ref: 4-5
FOR 0FP
EMBLEM,FRAME COVER
6813131E00D8P
€ 35.00
5-1
4720031E0019A
ref: 5-1
RF900RR/RS
COVER ASSEMBLY,FRAME,LEFT
€ 390.00
5-2
4720031E0033J
ref: 5-2
RF900RR
COVER ASSY,FRAME,L(BLACK)
€ 400.50
5-3
4720031E001HU
ref: 5-3
RF900RS
COVER ASSY,FRAME,L(PURPLE)
4720031E001HU
€ 408.50
5-4
4720031E001UH
ref: 5-4
RF900RS
COVER ASSEMBLY,FRAME,LEFT
€ 406.00
5-5
4720031E100FP
ref: 5-5
RF900RS2
COVER ASSEMBLY,FRAME,LEFT
4720031E100FP
€ 390.00
6
4721731E00
ref: 6
SHIELD,FRAME COVER HEAT,L
€ 29.00
7-1
6814031E00B7G
ref: 7-1
FOR 19A
TAPE SET,FRAME COVER S
6814031E00B7G
€ 113.50
7-2
6814031E00B7H
ref: 7-2
FOR 33J
TAPE SET,FRAME COVER S
€ 102.00
7-3
6814031E00D2A
ref: 7-3
FOR 1HU
TAPE SET,FRAME COVER S
€ 108.50
7-4
6814031E00D3S
ref: 7-4
FOR 1UH
TAPE SET,FRAME COVER,L
€ 90.00
7-5
6814031E00D9E
ref: 7-5
FOR 0FP
TAPE SET,FRAME COVER STRIPE,L
€ 101.50
7A
6814031E10D8M
ref: 7A
FOR 0FP
TAPE SET,FRAME COVER,LEFT
€ 44.00
8-1
6813131E00AF7
ref: 8-1
FOR 19A
EMBLEM,FRAME COVER
€ 44.50
8-2
6813131E00B8U
ref: 8-2
FOR 33J
EMBLEM,FRAME COVER
6813131E00B8U
€ 45.00
8-3
6813131E00D1Z
ref: 8-3
FOR 1HU
EMBLEM,FRAME COVER
€ 41.00
8-4
6813131E00D3T
ref: 8-4
FOR 1UH
EMBLEM,FRAME COVER
€ 34.00
8-5
6813131E00D8P
ref: 8-5
FOR 0FP
EMBLEM,FRAME COVER
6813131E00D8P
€ 35.00
9
0214205123
ref: 9
SCREW 5X12
0214205123
€ 1.50
10
0916105017
ref: 10
WASHER(5.2X14X1.5)
0916105017
€ 3.00
11
4751131E00
ref: 11
COVER,INNER,RIGHT
€ 14.50
12
4761131E00
ref: 12
COVER,INNER,L
€ 10.00
13
0354114123
ref: 13
SCREW
0354114123
€ 2.00
14-1
4719121E00
ref: 14-1
BRACKET,FRAME COVER,R
4719121E00
€ 4.50
14-2
4719221E00
ref: 14-2
BRACKET,FRAME COVER,L
4719221E00
€ 6.00
15
0932008018
ref: 15
CUSHION
0932008018
€ 4.00
16-1
0913606102
ref: 16-1
MODEL R
SCREW
€ 2.50
16-2
0911606131
ref: 16-2
MODEL S
BOLT(6X25)
0911606131
€ 2.00
17
4716121E00
ref: 17
CUSHION,FRAME COVER FR
4716121E00
€ 7.50
18
0918006225
ref: 18
SPACER
€ 4.50
19
0932008061
ref: 19
CUSHION
0932008061
€ 4.00
20-1
4731131E0019A
ref: 20-1
RF900RR/RS
COVER,FRAME CTR
€ 47.50
20-2
4731131E0033J
ref: 20-2
RF900RR
COVER,FRAME CTR
4731131E0033J
€ 38.50
20-3
4731131E001HU
ref: 20-3
RF900RS
COVER,FRAME CTR
€ 48.00
20-4
4731131E001UH
ref: 20-4
RF900RS
COVER,FRAME CTR
€ 46.50
20-5
4731131E000FP
ref: 20-5
RF900RS2
COVER,FRAME CTR
4731131E000FP
€ 44.50
21
4719321E00
ref: 21
BRACKET,RR COMBINATION LAMP
€ 6.50
22
0214205123
ref: 22
SCREW 5X12
0214205123
€ 1.50
23
0914805021
ref: 23
NUT
0914805021
€ 1.50
24
0354114123
ref: 24
SCREW
0354114123
€ 2.00
25
0324115163
ref: 25
SCREW
0324115163
€ 2.00
