BATTERY

RG250F 1986 (G) (E02 E16 E24 E30)

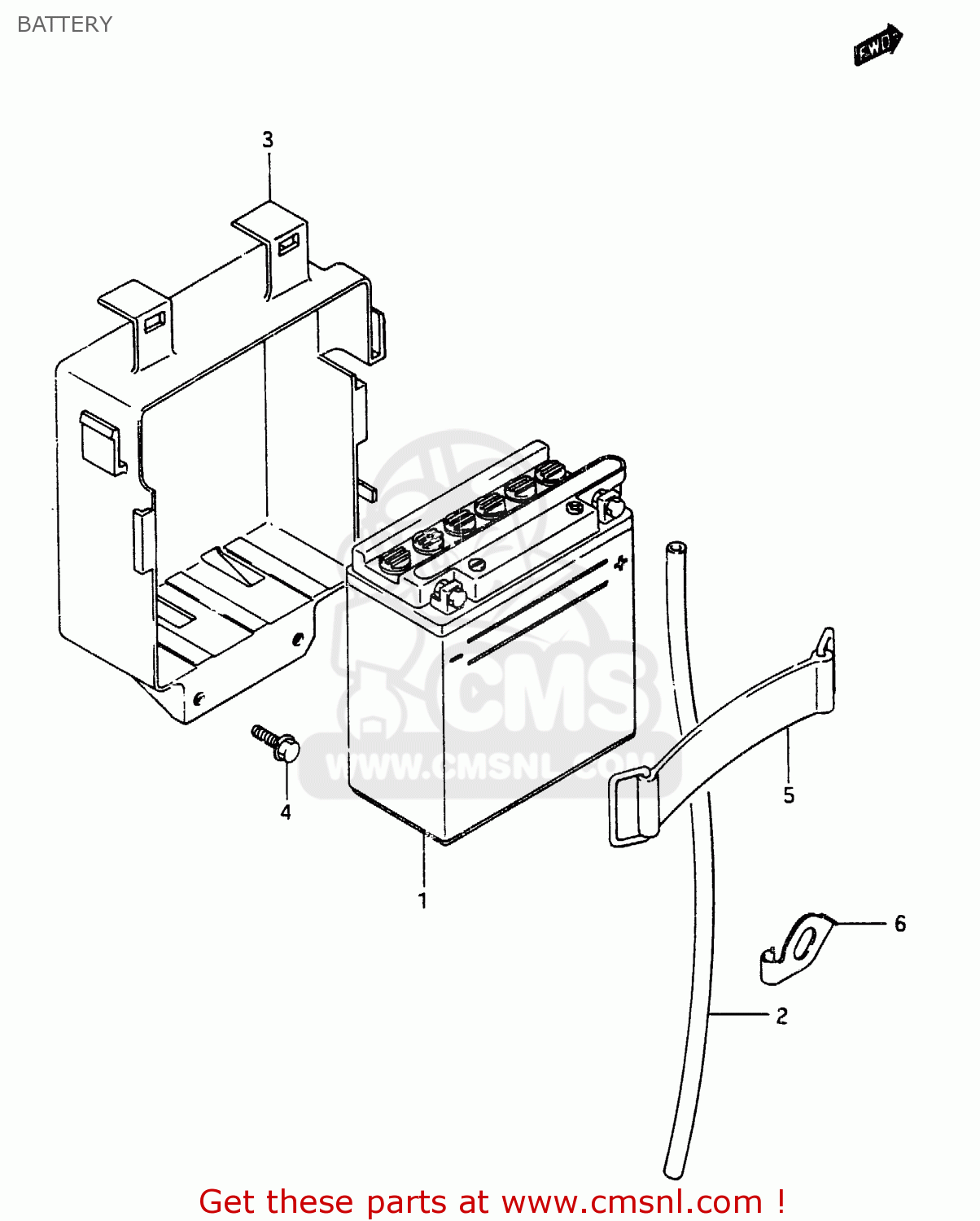

Battery diagram RG250F 1986 (G) (E02 E16 E24 E30)

BATTERY RG250F 1986 (G) (E02 E16 E24 E30)

BATTERY RG250F 1986 (G) (E02 E16 E24 E30)

prices are in EUR

ref

part #

description

quantity

1

3361018010
ref: 1

BATTERY ASSEMBLY (12V)

€ 62.00

2

3368031003
ref: 2
L:600->500

HOSE,BATTERY EXHAUST

€ 4.50

3

4154040A00
ref: 3

HOLDER, BATTERY

€ 17.00

4

0151706205
ref: 4

BOLT

€ 2.50

5

0946200067
ref: 5

BAND

€ 4.50

6

3368140A00
ref: 6

CLAMP, BATTERY EXHAUST HOSE

€ 0.00
