RG250F 1986 (G) (E02 E16 E24 E30)

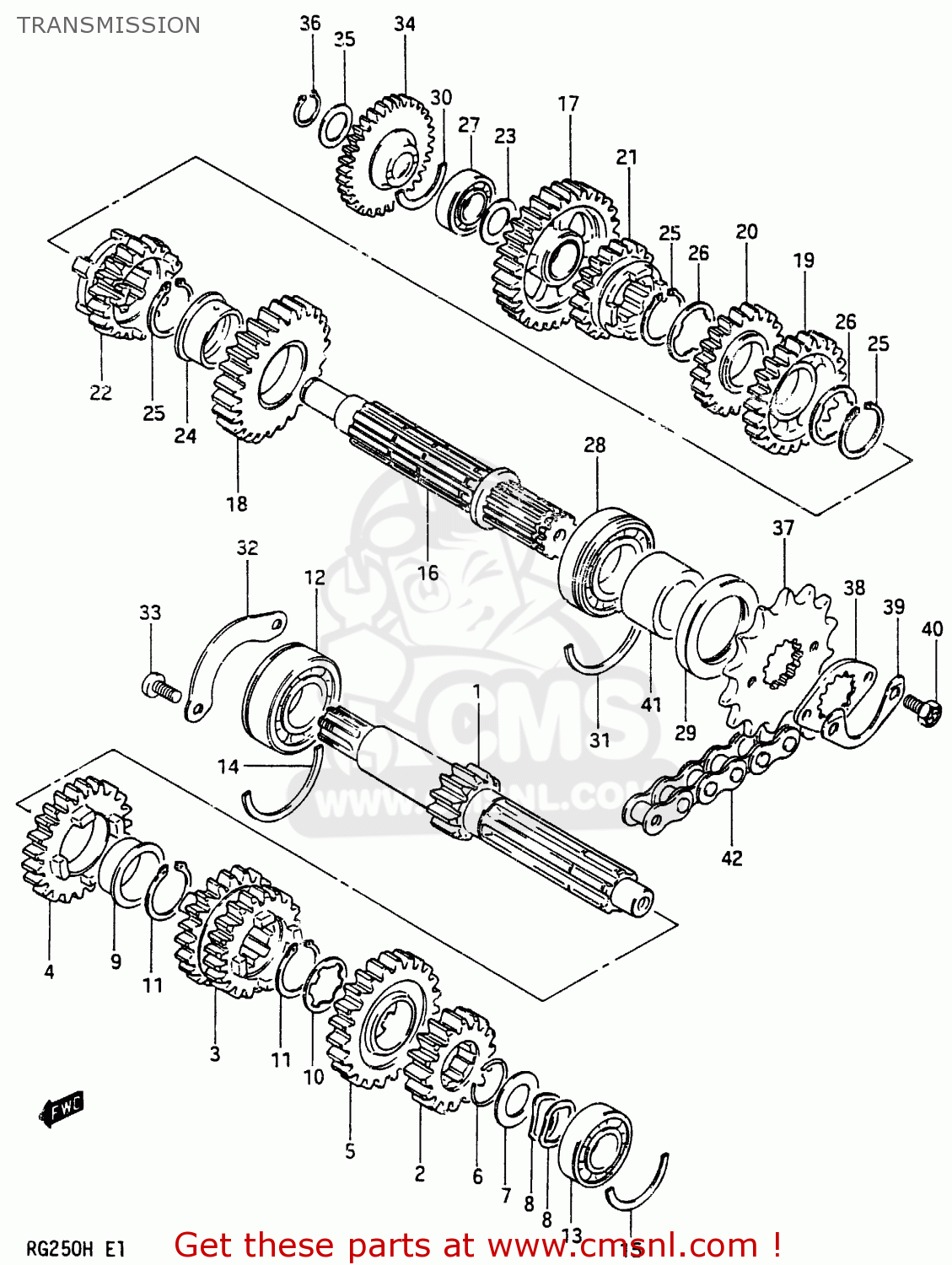

Transmission diagram RG250F 1986 (G) (E02 E16 E24 E30)
TRANSMISSION RG250F 1986 (G) (E02 E16 E24 E30)
×
prices are in EUR
ref
part #
description
quantity
1
2412140A00
ref: 1
COUNTERSHAFT (NT:13)
€ 139.00
2
2422116701
ref: 2
GEAR, 2ND DRIVE (NT:16)
€ 62.00
3
2423116702
ref: 3
GEAR, 3/4 DRIVE (NT:19/21)
€ 103.00
4
2425116701
ref: 4
GEAR, 5TH DRIVE (NT:22)
€ 72.00
5
2426116701
ref: 5
GEAR, 6TH DRIVE (NT:23)
€ 71.50
6
0938022007
ref: 6
CIRCLIP
€ 2.50
7
0916015027
ref: 7
WASHER (15X26X1.5)
€ 3.50
8
0916416003
ref: 8
WASHER
€ 2.50
9
0930122002
ref: 9
BUSH
€ 7.50
10
0916722011
ref: 10
WASHER,LOCK
€ 3.00
11
0833111229
ref: 11
CIRCLIP
€ 2.00
12
0816262050
ref: 12
BEARING, RH
€ 14.00
13
0811062020
ref: 13
BALL BEARING
€ 14.50
14
0939052002
ref: 14
C RING
€ 3.00
15
0939035001
ref: 15
C RING
€ 3.00
16
2413116700
ref: 16
SHAFT, DRIVE
€ 127.00
17
2431040A00
ref: 17
GEAR, 1ST DRIVEN (NT:29)
€ 93.50
18
2432140A00
ref: 18
GEAR, 2ND DRIVEN (NT:25)
€ 79.00
19
2433116701
ref: 19
GEAR, 3RD DRIVEN (NT:23)
€ 69.00
20
2434116700
ref: 20
GEAR, 4TH DRIVEN (NT:21)
€ 75.50
21
2435116701
ref: 21
GEAR, 5TH DRIVEN (NT:19)
€ 95.50
22
2436116701
ref: 22
GEAR,6TH DRIVEN(NT:18)
€ 91.50
23
0821115261
ref: 23
WASHER,THRUST
€ 2.50
24
0930125002
ref: 24
BUSH
€ 10.50
25
0938025003
ref: 25
RING,SNAP
€ 3.00
26
0916725012
ref: 26
WASHER,LOCK
€ 3.50
27
0811062020
ref: 27
BALL BEARING
€ 14.50
28
0816062050
ref: 28
BEARING
€ 21.50
29
0928334003
ref: 29
SEAL,OIL(34X52X6)
€ 9.00
30
0939035001
ref: 30
C RING
€ 3.00
31
0939052002
ref: 31
C RING
€ 3.00
32
2474111300
ref: 32
RETAINER, BEARING
€ 4.00
33
0211206128
ref: 33
SCREW 6X12
€ 2.00
34
2626011302
ref: 34
GEAR, KICK STARTER (NT:33)
€ 44.50
35
0821115241
ref: 35
WASHER,THRUST
€ 4.00
36
0833131159
ref: 36
CIRCLIP,15MM
€ 2.00
37
2751116702
ref: 37
SPROCKET,ENGINE(NT:14)
€ 15.50
38
2751216702
ref: 38
PLATE,SPROCKET
€ 4.50
39
2751316702
ref: 39
LOCK WASHER,SPROCKET
€ 3.00
40
0110706108
ref: 40
BOLT
€ 2.00
41
0918025068
ref: 41
SPACER (25X34X14.3)
€ 15.50
42
2760038250110
ref: 42
CHAIN, DRIVE (DID 520VX110LE)
€ 134.50
