RADIATOR
RG250F 1986 (G) (E02 E16 E24 E30)

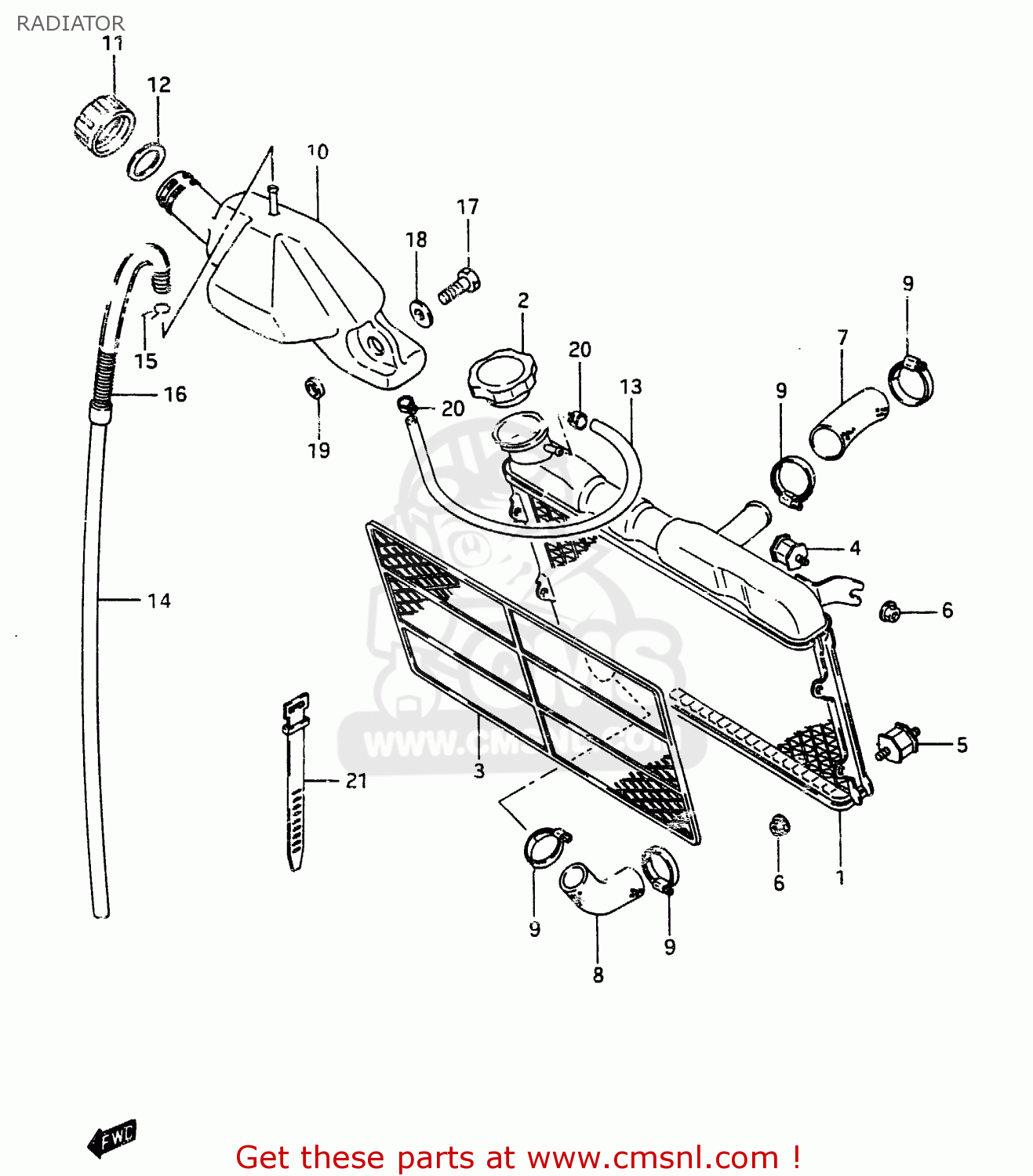

Radiator diagram RG250F 1986 (G) (E02 E16 E24 E30)
RADIATOR RG250F 1986 (G) (E02 E16 E24 E30)
×
prices are in EUR
ref
part #
description
quantity
1
1771016711
ref: 1
RADIATOR
€ 675.00
2
1773001A01
ref: 2
CAP,RADIATOR
€ 33.50
3
1799116710
ref: 3
NET,RADIATOR
€ 29.50
4
1778816700
ref: 4
BOLT,RADIATOR CUSHION
€ 12.00
5
1778840A00
ref: 5
BOLT, RADIATOR CUSHION NO.2
€ 10.50
6
0831616064
ref: 6
NUT 6MM
€ 2.50
7
1785116701
ref: 7
HOSE,RADIATOR INLET
€ 17.50
8
1785240A00
ref: 8
HOSE, RADIATOR OUTLET
€ 16.00
9
0940225501
ref: 9
CLAMP
€ 8.50
10
1791040A01
ref: 10
TANK ASSY, RESERVOIR
€ 37.00
11
1784513700
ref: 11
CAP,RESERVOIR TANK
€ 11.50
12
1784413700
ref: 12
GASKET,RESERVOIR TANK CAP (NAS)
€ 2.50
13
1784816701
ref: 13
HOSE, INLET
€ 4.00
14
1784916701
ref: 14
HOSE, OUTLET
€ 28.50
15
0940109301
ref: 15
CLIP
€ 1.00
16
0944010009
ref: 16
SPRING
€ 10.50
17
0910308014
ref: 17
BOLT (8X16)
€ 3.50
18
0916008010
ref: 18
WASHER (8.2X20X1.6)
€ 1.50
19
0918008100
ref: 19
SPACER(8.2X14X4.5)
€ 22.50
20
0940108407
ref: 20
CLIP
€ 3.00
21
0940714403
ref: 21
CLAMP(L:125)
€ 2.50
