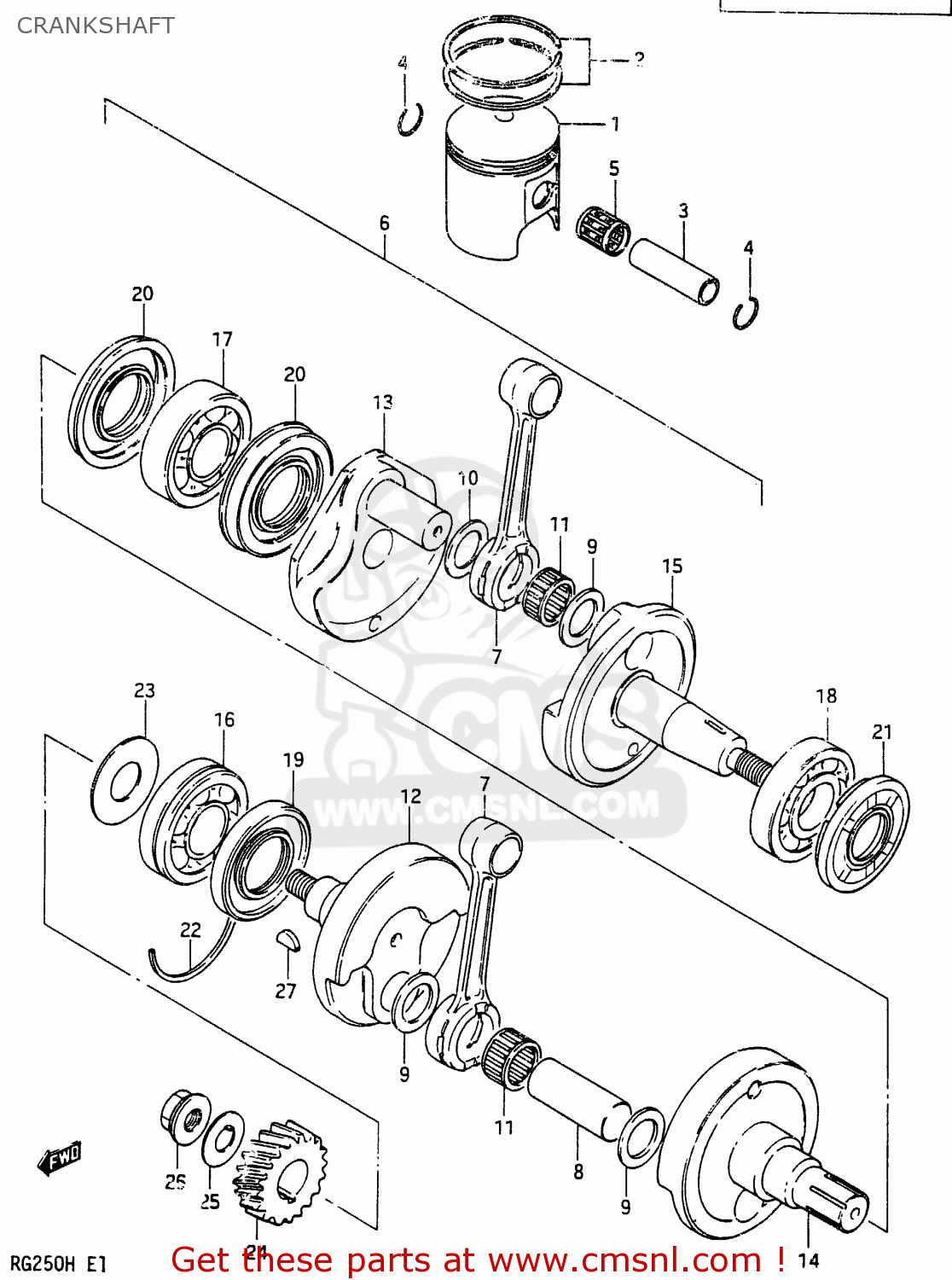

CRANKSHAFT

ref

part #

description

quantity

1

1211040A050F0
ref: 1

PISTON

€ 60.00

1

1211040A05050
ref: 1
OPT

PISTON (OS:0.5)

€ 107.00

1

1211040A05100
ref: 1
OPT

PISTON (OS:1.0)

€ 88.00

2

1214040A10
ref: 2

RING SET, PISTON

€ 48.50

2

1214040A10050
ref: 2
OPT

RING SET,PISTON(OS:0.50)

€ 32.00

2

1214040A10100
ref: 2
OPT

RING SET,PISTO

€ 34.50

3

1215107000
ref: 3

PIN,PISTON 14MM

€ 10.00

4

0938114001
ref: 4

RING,SNAP 14MM

€ 1.50

5

0926314019
ref: 5

BEARING 14X18X19.8

€ 10.00

6

1220040A00
ref: 6

CRANKSHAFT ASSY

€ 878.50

7

1216114500
ref: 7

CONNECTING ROD

€ 59.50

8

1221116700
ref: 8

PIN, CRANK

€ 27.00

9

0916022010
ref: 9

WASHER(22X35X1)

€ 6.50

10

0916022027
ref: 10

WASHER

€ 9.00

11

09263220340C0
ref: 11

BEARING

€ 64.00

12

1222140A00
ref: 12

CRANKSHAFT, RH

€ 0.00

13

1223140A00
ref: 13

WEB, CRANK

€ 111.50

14

1224140A00
ref: 14

CRANKSHAFT, MIDDLE

€ 0.00

15

1226140A02
ref: 15

CRANKSHAFT, LH

€ 0.00

16

0926225036
ref: 16

BEARING(25X62X17)

€ 38.50

17

0926225056
ref: 17
FROM 09262-25034

BEARING

€ 55.00

18

0926225056
ref: 18

BEARING

€ 55.00

19

0928932004
ref: 19

SEAL,OIL(32X62X8)

€ 38.00

20

0928933008
ref: 20

SEAL,OIL(33.5X62X8)

€ 32.50

21

0928325080
ref: 21

SEAL,OIL(25X56X6)

€ 29.00

22

0939062009
ref: 22

C RING

€ 5.00

23

0916020025
ref: 23

WASHER(20X48X1)

€ 2.50

24

2111116710
ref: 24

GEAR, PRIMARY DRIVE (NT:24)

€ 39.00

25

0916612002
ref: 25

WASHER

€ 2.00

26

0915912103
ref: 26

NUT

€ 9.00

27

0834131059
ref: 27

KEY

€ 3.00

all assemblies
